988170 (48 LP) - Gravely Pro-Walk 48" Walk-Behind Mower, Propane (SN: 040000 & Above) Deck, Belts, Blades, Spindles, HOC Rods-Pins Parts Diagram

Pro-Walk 48" Walk-Behind Mower, Propane

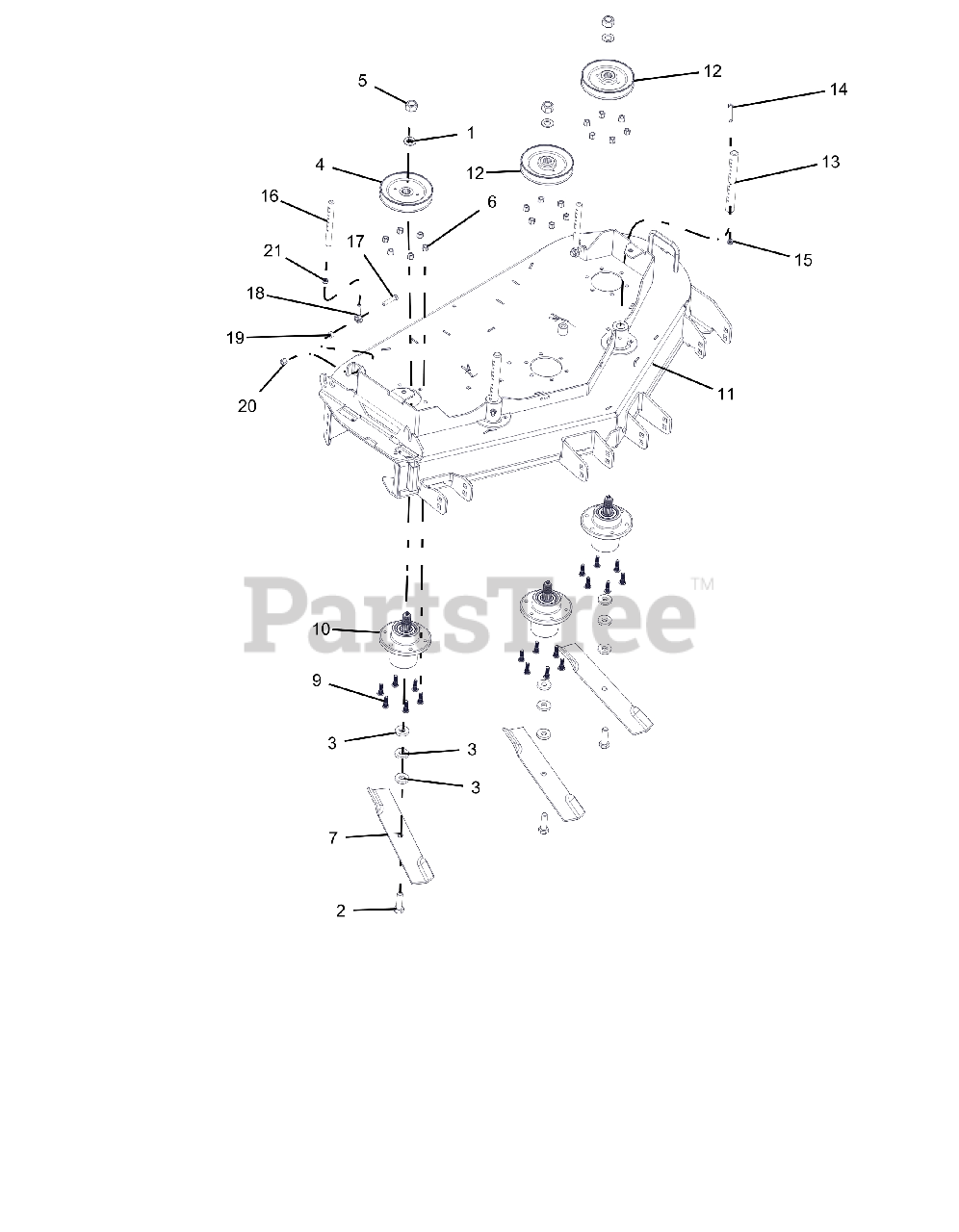

Deck, Belts, Blades, Spindles, HOC Rods-Pins Parts Diagram

  • Title

1

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

2

Gravely 05970002

BLT-HEX .62-11X2.00 GR8 YWZC
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

3

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

4

Gravely 07344151

PULLEY, SPINDLE 5.75 X .76-BLACK

$79.99

$

Usually ships in 4-12 days

0

5

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR5 Y
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

6

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

7

Gravely GDU10230

BLADE, 16.50 LO-LIFT

$28.99

$

In Stock, Qty 17

0

8

Gravely 07329201

PULLEY, V-5.75 OD X 1.51 ID

$

$

Not available

9

200045

BOLT, 3/8-16 X 1.25 RDHD RIBNK/O

$

$

Not available

10

200260

ASSY, SPINDLE HOUSING

$

$

Not available

11

Gravely 50498001

ASSY, 48 FLWLKDECK W/DECALS

$1162.99

$

Usually ships in 4-12 days

0

12

Gravely 07344351

PULLEY, SPINDLE 5.75 X .25-BLACK

$74.99

$

Usually ships in 4-12 days

0

13

Gravely 04197700

PIN, FRONT HOC

$41.99

$

Usually ships in 4-12 days

0

14

Gravely 05984900

BLT-HEX .31-18X2.50 GR8 YWZC
(Superseded to 05901717)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03841021

ROD, REAR HOC

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08790600

ROD, END 3/8 RH REV

$

$

Not available

19

Gravely 05522100

BSHG, SLV REV

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0
