988169 (61 HE) - Gravely Pro-Hydro 61" Walk-Behind Mower, Pistol Grip, Electric (SN: 021000 & Above) Belts, Blades, Spindles, Idlers And Pullies - 61" Deck Parts Diagram

Pro-Hydro 61" Walk-Behind Mower, Pistol Grip, Electric

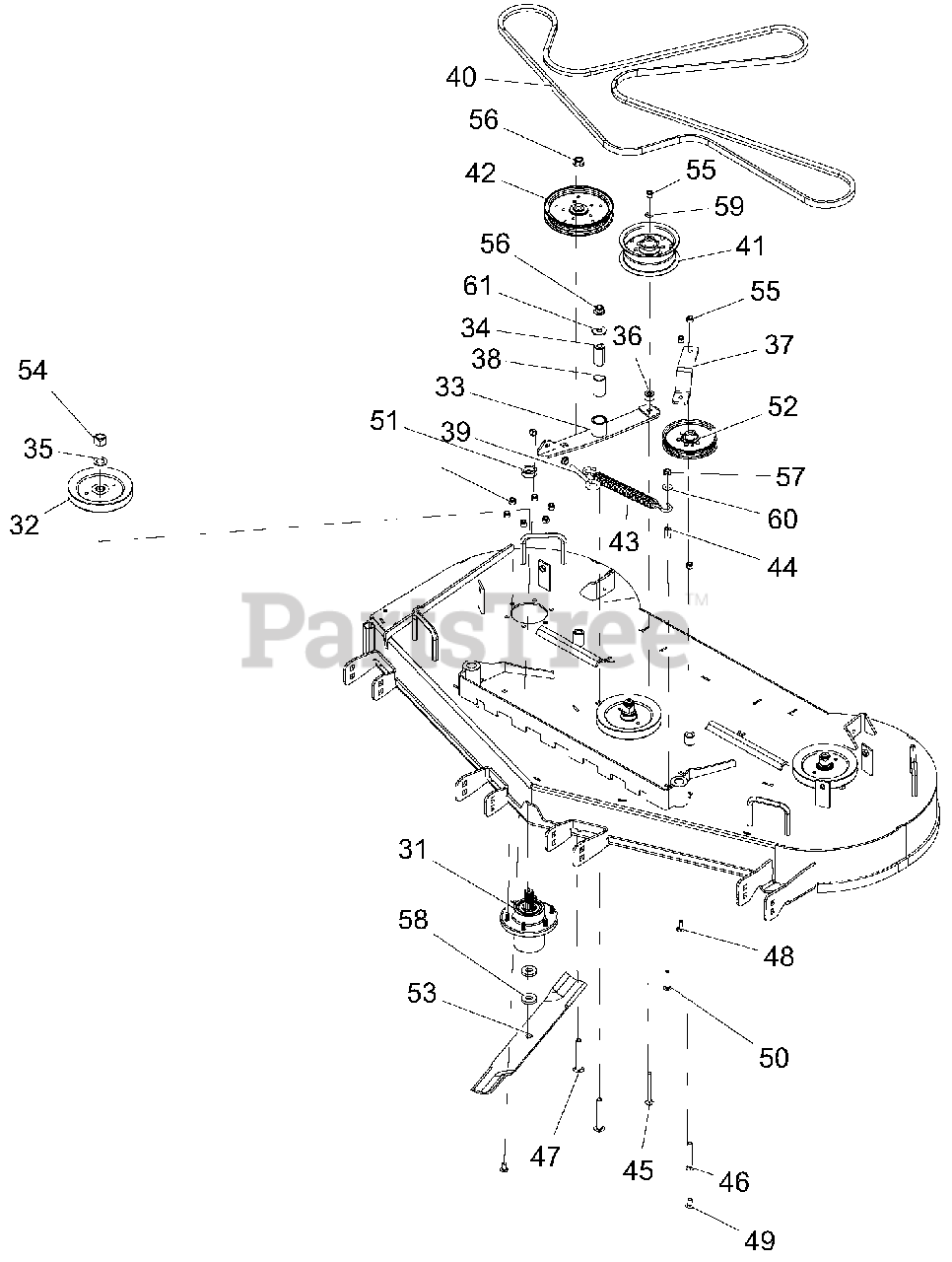

Belts, Blades, Spindles, Idlers And Pullies - 61" Deck Parts Diagram

  • Title

31

Gravely 00200262

ASSY, SPINDLE HOUSING

$262.99

$

In Stock, only 2 left!

0

32

Gravely 03399709

PULLEY, SPINDLE 6.34 OD

$65.99

$

Usually ships in 4-12 days

0

33

Gravely 04370951

WLDMT, IDLER 61 WALK

$45.99

$

Usually ships in 4-12 days

0

34

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

35

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

36

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$9.49

$

In Stock, Qty 10

0

37

Gravely 03856451

STRAP, IDLER 48/52 WALK

$13.99

$

Usually ships in 4-12 days

0

38

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

39

Gravely 07001701

BOLT, EYE .38-16X4.50 .75 DIA

$12.99

$

Usually ships in 4-12 days

0

40

Gravely 07200614

BELT, 61" FLWLK

$103.99

$

Usually ships in 4-12 days

0

41

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

In Stock, Qty 13

0

42

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

$63.99

$

In Stock, only 2 left!

0

43

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

44

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$5.99

$

In Stock, only 1 left!

0

45

Gravely 06222400

@BLT-RDHDSQNK .38-16X3.50 G5 YWZC
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

46

Gravely 06228100

@BLT-RDHDSQNK .38-16X3.00 G5 YWZC
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

47

Gravely 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 3 left!

0

48

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

50

Gravely 06203200

@BLT-RHDSSQNK .38-16X2.00 G5YZ
(Superseded to 06200323)

$2.99

$

In Stock, Qty 20+

0

51

Gravely D13024

SPACER, 1.500X1.000X.510 Y

$12.99

$

In Stock, only 2 left!

0

52

Gravely D28050

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

53

Gravely GDU10232

BLADE, 21.000 X .80 LIFT

$31.99

$

In Stock, Qty 13

0

54

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR5 Y
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

55

Gravely 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

56

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

58

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

59

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

60

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

61

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
