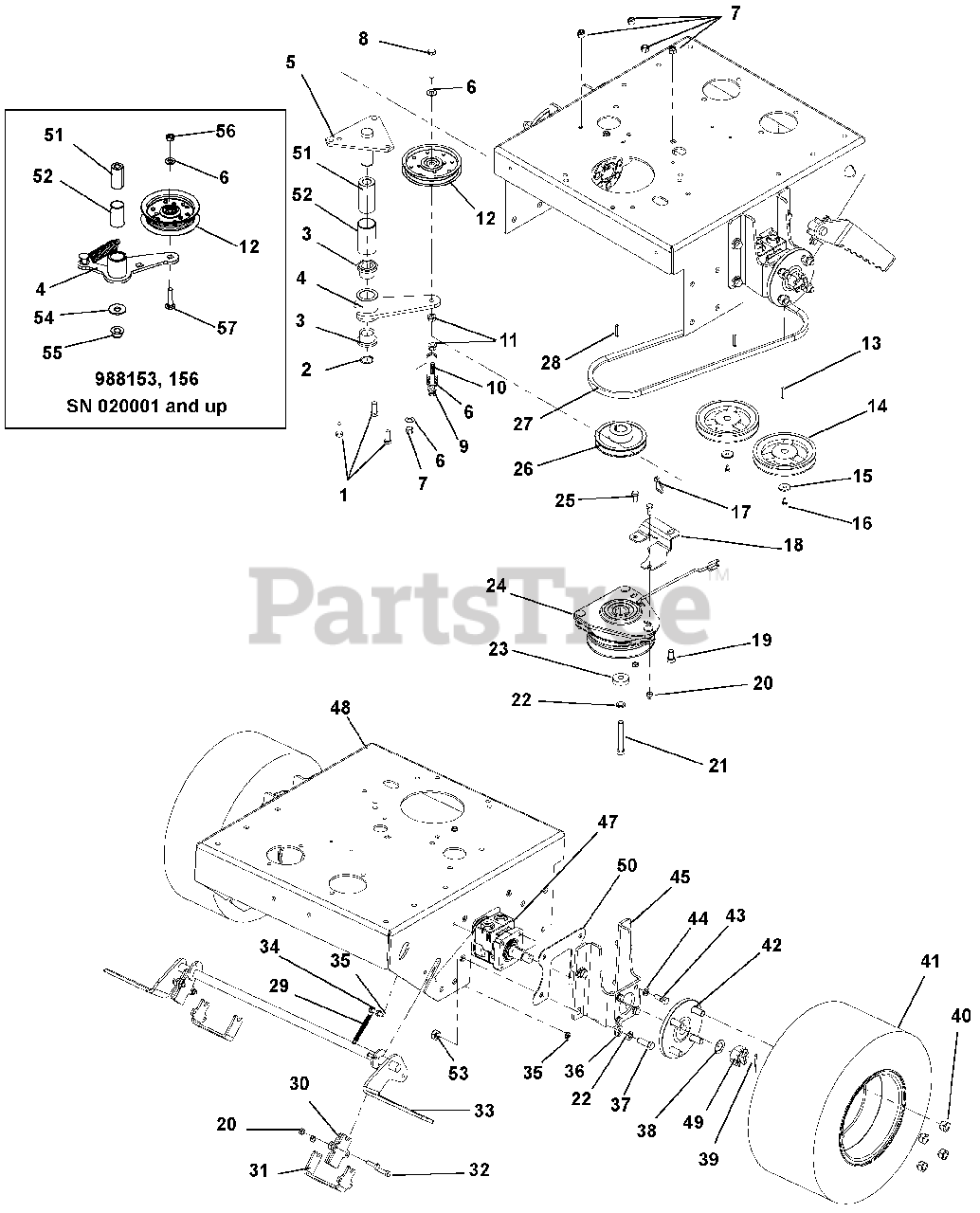

988157 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, Electric (SN: 000101 & Above) PTO, Wheel Motors And Parking Brake Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, Electric

PTO, Wheel Motors And Parking Brake Parts Diagram

  • Title

1

Gravely 05948700

BOLT-HEX .38-16 1.00 GR5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 05700160

SNAP RING, 1.00 X .042 EXT

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$17.99

$

Usually ships in 4-12 days

0

4

Gravely D15032

WLDT, IDLER ARM (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely D15032

WLDT, IDLER ARM (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$

$

Not available

Gravely 04451451

WLDMT, IDLER HYD WLK TRANS BLK (988153, 156) (SN 020001 and up)

Note: (988153, 156) (SN 020001 and up)

$64.99

$

Usually ships in 4-12 days

0

5

Gravely 00203918

WLDT, IDLER PIVOT MOUNT (SN 000101 - 020000)
(Superseded to 05180151)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely 00203918

WLDT, IDLER PIVOT MOUNT (988154, 155, 157, 158, 159, 169) (SN 020001 and up)
(Superseded to 05180151)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$

$

Not available

6

Gravely 06436200

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06535800

NUT-LOCKING-NYLON .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 05958400

BOLT, HEX .38-16X2.50 GRADE 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05985200

BLT-HEX .38-16X3.00 HEX 8 YWZC
(Superseded to 05901816)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely D18071

SPRING, EXT .900X.135X4.50 Y (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$11.99

$

Usually ships in 4-12 days

0

Gravely D18071

SPRING, EXT .900X.135X4.50 (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$11.99

$

Usually ships in 4-12 days

0

Gravely 00110581

SPRING, EXT .875 X .125 X 4.25 (988153, 156) (SN 020001 and up)

Note: (988153, 156) (SN 020001 and up)

$

$

Not available

11

Gravely 06534900

NUT-SPIN LOCK-FLANGE .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

12

Gravely GDA10032

PULLEY, FLAT 4.50 X .375 W/BRG (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely 07300039

ASM, IDLER 4" (988153, 156) (SN 020001 and up)
(Superseded to 07350100)

Note: (988153, 156) (SN 020001 and up)

$48.99

$

In Stock, Qty 20+

0

Gravely GDA10032

PULLEY, FLAT 4.50X.375 W/BRG (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$

$

Not available

13

Gravely 00966058

KEY, M5 X M5 X M30 RD

$3.49

$

In Stock, only 1 left!

0

14

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$51.99

$

Usually ships in 4-12 days

0

Gravely 07338800

PULLEY, V-BELT PUMP HYD WLK (SN 020001 and up)

Note: (SN 020001 and up)

$103.99

$

Usually ships in 4-12 days

0

15

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 00967041

BOLT, M6 X 1.00 X 10 HEX 8.8 Y

$

$

Not available

17

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

18

Gravely 00203840

PLATE, CLUTCH DOG

$28.99

$

Usually ships in 4-12 days

0

19

Gravely 05900121

BOLT, 7/16-14 X .750 HEX 5 Y

$

$

Not available

20

Gravely 06530200

NUT-LOCKING-NYLON .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05900037

BOLT, HEX .44-20 X 3.00 G5

$6.99

$

In Stock, only 1 left!

0

22

Gravely 06309300

WASHER-LOCKING .44X.109 REGULAR (SN 000101 - 020000)
(Superseded to 06300121)

Note: (SN 000101 - 020000)

$2.99

$

In Stock, Qty 11

0

Gravely 06309300

WASHER-LOCKING .44X.109 REGULAR (SN 020001 and up)
(Superseded to 06300121)

Note: (SN 020001 and up)

$2.99

$

In Stock, Qty 11

0

23

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 00200665

CLUTCH ASSY, OGURA

$362.99

$

In Stock, only 2 left!

0

25

Gravely 05947000

BOLT, HEX .31-18 X .75 GR5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Gravely D18085

PULLEY, V-BELT 4.45X1.00 W/KEY (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$66.99

$

Usually ships in 4-12 days

0

Gravely 07338700

PULLEY, V-BELT WLK TRANS DRIVE (SN 020001 and up)

Note: (SN 020001 and up)

$79.99

$

Usually ships in 4-12 days

0

27

Gravely D38006

BELT, HA 55.1 EL AMD OHR (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely 07200542

BELT, HA WLK TRANS (988153, 156) (SN 020001 and up)

Note: (988153, 156) (SN 020001 and up)

$60.99

$

Usually ships in 4-12 days

0

Gravely D38006

BELT, HA 55.1 EL AMD OHR (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$

$

Not available

28

Gravely D18145

KEY, .250 X .250 X .995 TPR

$

$

Not available

29

Gravely 00135292

SPRING, EXT .375 X .055 X 2.25 Y (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$20.99

$

Usually ships in 4-12 days

0

Gravely 08300107

SG-EXT, WALK PARK BRAKE (SN 020001 and up)

Note: (SN 020001 and up)

$

$

Not available

30

Gravely 03885753

SHOE, BRAKE SYSTEM FLOAT WALK (988153, 154, 155, 156, 157, 158)

Note: (988153, 154, 155, 156, 157, 158)

$

$

Not available

Gravely 03885753

SHOE, BRAKE SYSTEM FLOAT WALK (988159, 169)

Note: (988159, 169)

$

$

Not available

31

Gravely 04372153

BRAKE ROD SUPPORT (988159, 169)

Note: (988159, 169)

$

$

Not available

32

Gravely 05946900

BOLT, HEX .31-18 X 1.00 GR5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 03859951

WLDT, BRAKE SYS FLOAT HYDRO (988154, 155, 157, 158)

Note: (988154, 155, 157, 158)

$

$

Not available

Gravely 03908351

WLDT, BRAKE SYS 36" FLWLK (988153, 156)

Note: (988153, 156)

$78.99

$

Usually ships in 4-12 days

0

Gravely 04372051

WLDT, PARK BRAKE 61" (988159, 169)

Note: (988159, 169)

$93.99

$

Usually ships in 4-12 days

0

34

Gravely 05947400

BOLT, HEX .25-20 X 1.25 GR5 (SN 000101 - 020000)
(Superseded to 05901738)

Note: (SN 000101 - 020000)

$1.99

$

In Stock, Qty 5

0

35

Gravely 06530100

LOCKNUT, 1/4-20 WHIZ Y (SN 000101 - 020000)
(Superseded to 06500824)

Note: (SN 000101 - 020000)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06400914

WASHER, .468 X 1.00X.125 FLAT Y

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 05963800

BOLT, HEX .44-14 X 1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$

$

Not available

39

Gravely 06714300

PIN, COT .125 X 1.50 EXTP Y

$1.99

$

Usually ships in 4-12 days

0

40

Gravely 06553000

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 07100906

ASSY, WHEEL & TIRE 16 X 7.5-8 (988154, 155, 157, 158)

Note: (988154, 155, 157, 158)

$175.99

$

Usually ships in 4-12 days

0

Gravely 07100907

ASSM, WHEEL & TIRE 16 X 6.50-8 (988153, 156)
(Superseded to 07101138)

Note: (988153, 156)

$148.99

$

Usually ships in 4-12 days

0

Gravely 07100927

ASSY, WHEEL & TIRE 18 X 8.5-8 (988159, 169)

Note: (988159, 169)

$168.99

$

Usually ships in 4-12 days

0

42

Gravely 00203842

ASSY, WHEEL HUB

$

$

Not available

43

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$

$

Not available

44

Gravely 06308800

WASHER, .38 x .094 REG
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 03901553

BRKT, MOTOR MOUNT FLWLK (988153, 154, 155, 156, 157, 158) (SN 000101 - 020000)

Note: (988153, 154, 155, 156, 157, 158) (SN 000101 - 020000)

$48.99

$

Usually ships in 4-12 days

0

Gravely 04506953

WLDMT, WHEEL MOTOR BRKT GRAVEL (988153, 154, 155, 156, 157, 158) (SN 021000 and

Note: (988153, 154, 155, 156, 157, 158) (SN 021000 and

$81.99

$

Usually ships in 4-12 days

0

up)

up)

Note: up)

$

$

Not available

Gravely 04379453

WLDMT, WHEEL MOTOR BRKT 61" (988159, 169)

Note: (988159, 169)

$74.99

$

Usually ships in 4-12 days

0

46

Gravely 04379453

BRKT, WHEEL MOTOR WLDT (988159, 169)

Note: (988159, 169)

$74.99

$

Usually ships in 4-12 days

0

47

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$840.99

$

Usually ships in 4-12 days

0

48

05880900

ASM, FRAME W/DECALS 36" GRAVELY (988153, 156) (SN 000101 - 020000)

Note: (988153, 156) (SN 000101 - 020000)

$

$

Not available

Gravely 58815601

ASM, FRAME W/DECALS 36" GRAVELY (988153, 156) (SN 020001 and up)

Note: (988153, 156) (SN 020001 and up)

$

$

Not available

Gravely 58809100

ASSM, 48-52" FRAME W/DECALS (988154, 155, 157, 158) (SN 000101 - 020000)

Note: (988154, 155, 157, 158) (SN 000101 - 020000)

$283.99

$

Usually ships in 4-12 days

0

Gravely 58809600

61" ENGINE BED WITH DECALS (988159, 169)

Note: (988159, 169)

$

$

Not available

Gravely 58815401

ASSM, 48-52-61" FRAME W/DECALS (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$176.99

$

Usually ships in 4-12 days

0

Gravely 58809600

61" ENGINE BED WITH DECALS

$

$

Not available

49

Gravely 06538700

NUT, .75 UNF2B HEX SLOT JDS14

$5.99

$

Usually ships in 4-12 days

0

50

Gravely 04440353

ENGINE BED DOUBLE PLATE (988159, 169)

Note: (988159, 169)

$

$

Not available

51

Gravely 01581700

BSHG, SPCR .505/.500 X .999/.996 X 2.05/2.03 PM (988153, 156) (SN 021000 and up)

Note: (988153, 156) (SN 021000 and up)

$5.99

$

In Stock, Qty 20+

0

52

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.936 (988153, 156) (SN 021000 and up)
(Superseded to 05501234)

Note: (988153, 156) (SN 021000 and up)

$10.99

$

In Stock, Qty 20+

0

53

Gravely 06527500

NUT-LK-NYL .44-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

54

Gravely 06442000

WSHR-FL-STL .563X1.38X.109YWZC (988153, 156) (SN 021000 and up)
(Superseded to 06401012)

Note: (988153, 156) (SN 021000 and up)

$2.49

$

In Stock, only 2 left!

0

55

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC (988153, 156) (SN 021000 and up)
(Superseded to 06500810)

Note: (988153, 156) (SN 021000 and up)

$1.49

$

In Stock, Qty 20+

0

56

Gravely 06529600

NUT-LK-CTR .38-16 YWZC (988153, 156) (SN 021000 and up)
(Superseded to 06500825)

Note: (988153, 156) (SN 021000 and up)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ (988153, 156) (SN 021000 and up)
(Superseded to 06200417)

Note: (988153, 156) (SN 021000 and up)

$3.99

$

In Stock, only 2 left!

0
