988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Hydraulic Pump - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

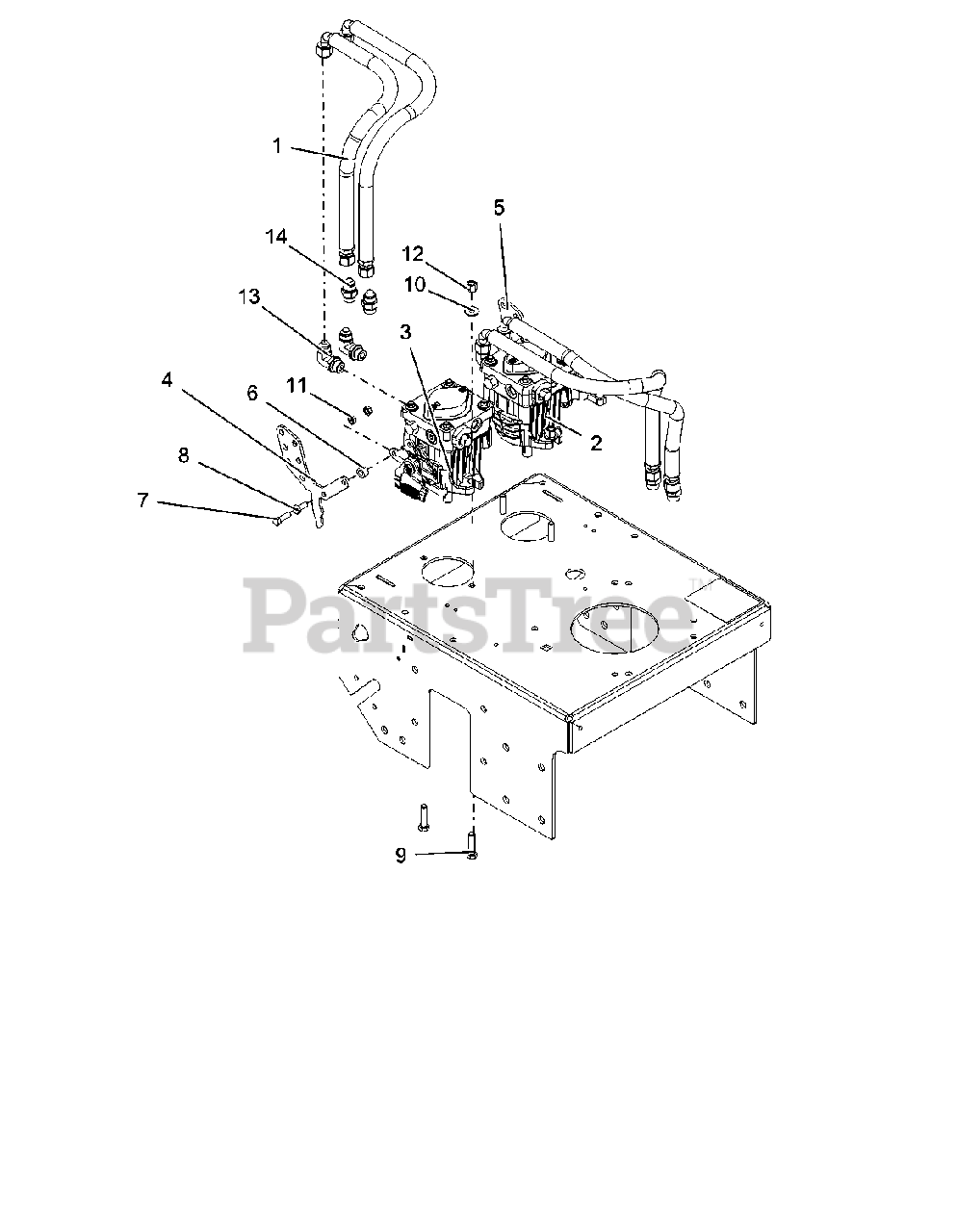

Hydraulic Pump - 36" Parts Diagram

  • Title

1

Gravely 04504900

HOSE, HYD 1/2 X 22 1/2 EZFLEX

$71.99

$

Usually ships in 4-12 days

0

2

Gravely 04326000

PUMP, LH HYD PE (10CC)

$646.99

$

Usually ships in 4-12 days

0

3

Gravely 04326100

PUMP, RH HYD PE (10CC)

$646.99

$

Usually ships in 4-12 days

0

4

Gravely 04498451

BRKT, RH PUMP CONTROL WRS

$37.99

$

Usually ships in 4-12 days

0

5

Gravely 04498551

BRKT, LH PUMP CONTROL WRS

$

$

Not available

6

Gravely 05522100

BSHG, SLV REV

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely D14196

FTG, ADP JIC-ORB 6801-08-08

$5.99

$

Usually ships in 4-12 days

0

14

Gravely D14197

FITTING, STRAIGHT

$

$

Not available
