988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Engine And Frame - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

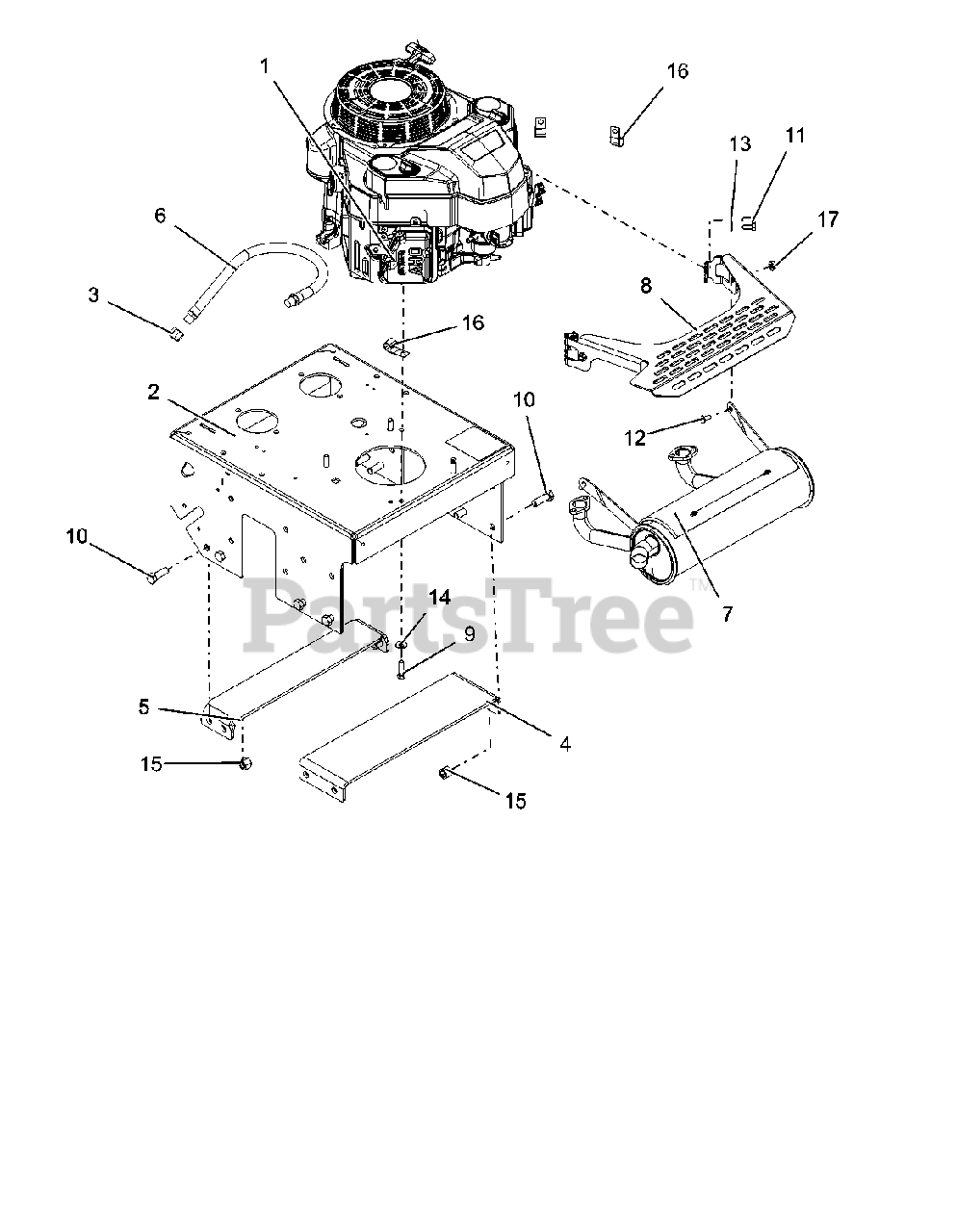

Engine And Frame - 36" Parts Diagram

  • Title

1

Gravely 08200725

ENGINE, KAWASAKI FS481

$

$

Not available

2

Gravely 58815601

ASM, FRAME W/DECALS 36" GRAVELY

$

$

Not available

3

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 03932453

PLATE, ENGINE BED FRONT 36-RED

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 03932553

PLATE, ENGINE BED REAR 36-RED

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 04271700

DRAIN, M20 OIL

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 04375200

EXHAUST, KAWASAKI FS

$262.99

$

In Stock, only 1 left!

0

8

Gravely 04676751

SHIELD, MUFFLER-BLACK
(Superseded to 09658251)

$66.99

$

Usually ships in 4-12 days

0

9

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

10

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06006104

SCR - HEX -FL M8X1.25X16 10.9

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

15

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

17

Gravely H137328

LOCKNUT, M8 X 1.25, FLANGED ZN

$

$

Not available
