988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Console And BBrake Handle - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

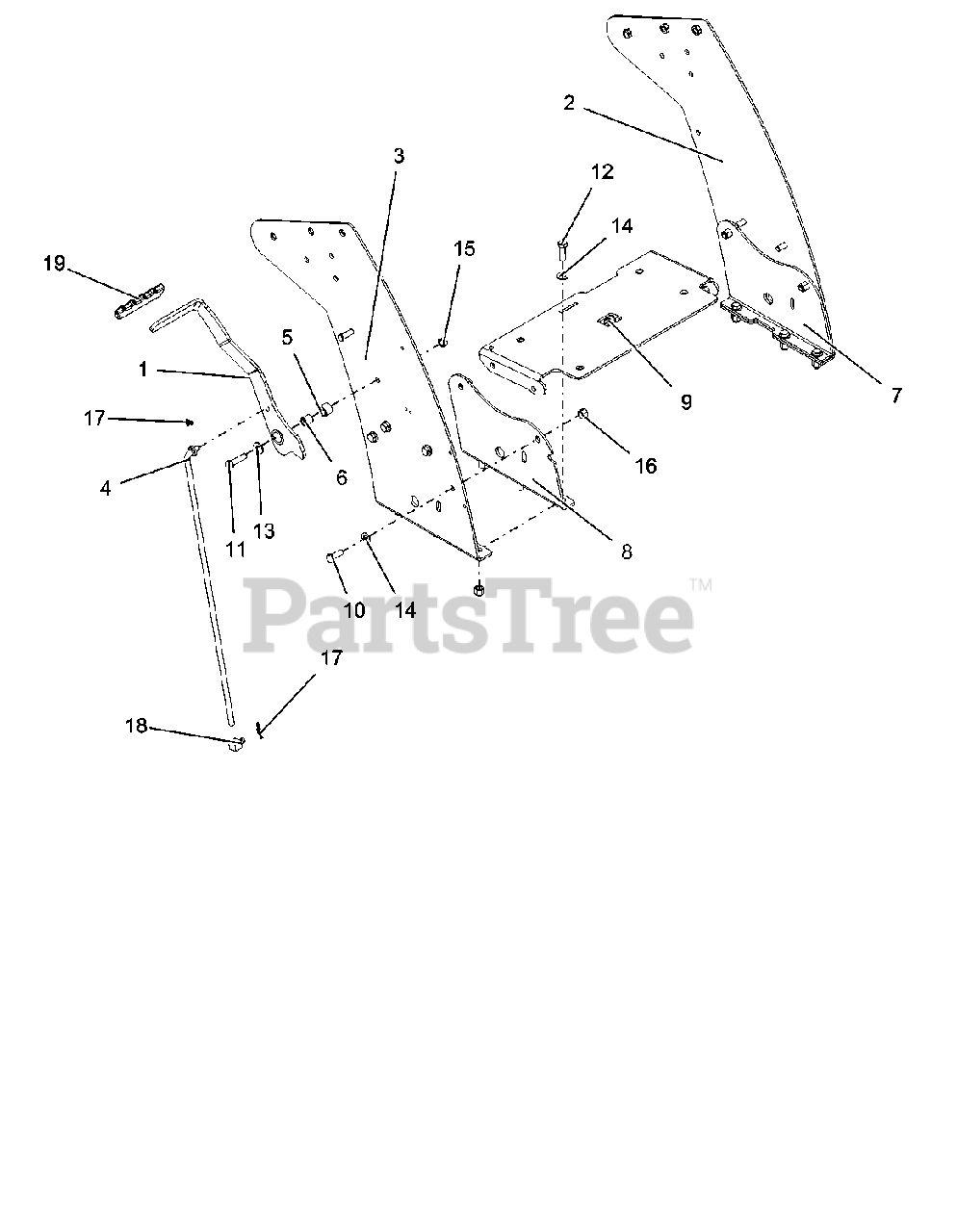

Console And BBrake Handle - 36" Parts Diagram

  • Title

1

Gravely 04392251

PARK BRAKE WLDT-BLACK

$55.99

$

In Stock, only 1 left!

0

2

Gravely 04454553

WLDMT, LH UPRIGHT 18" ENG BED-RED

$

$

Not available

3

Gravely 04454653

WLDMT, RH UPRIGHT 18" ENG BED-RED

$

$

Not available

4

Gravely 03858911

ROD, DRIVE CONTROL FW

$62.99

$

Usually ships in 4-12 days

0

5

Gravely 04392300

PARK BRAKE HANDLE BUSHING

$8.49

$

Usually ships in 4-12 days

0

6

Gravely 04392400

PARK, BRAKE LEVER SPACER

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 04454853

PLATE, LH DOUBLER 36" UPRIGHT-RED

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 04454953

PLATE, RH DOUBLER 36" UPRIGHT (RED)

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 04589153

BRKT, FUEL TANK GRAVELY

$43.99

$

Usually ships in 4-12 days

0

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

12

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

17

967353

RING, RUE .375 x .054 x 1.254

$

$

Not available

18

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

19

Gravely TCU19034

GRIP
(Superseded to 03826900)

$3.99

$

In Stock, only 2 left!

0
