988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 000101 - 049999) Console And Deck Mounting Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

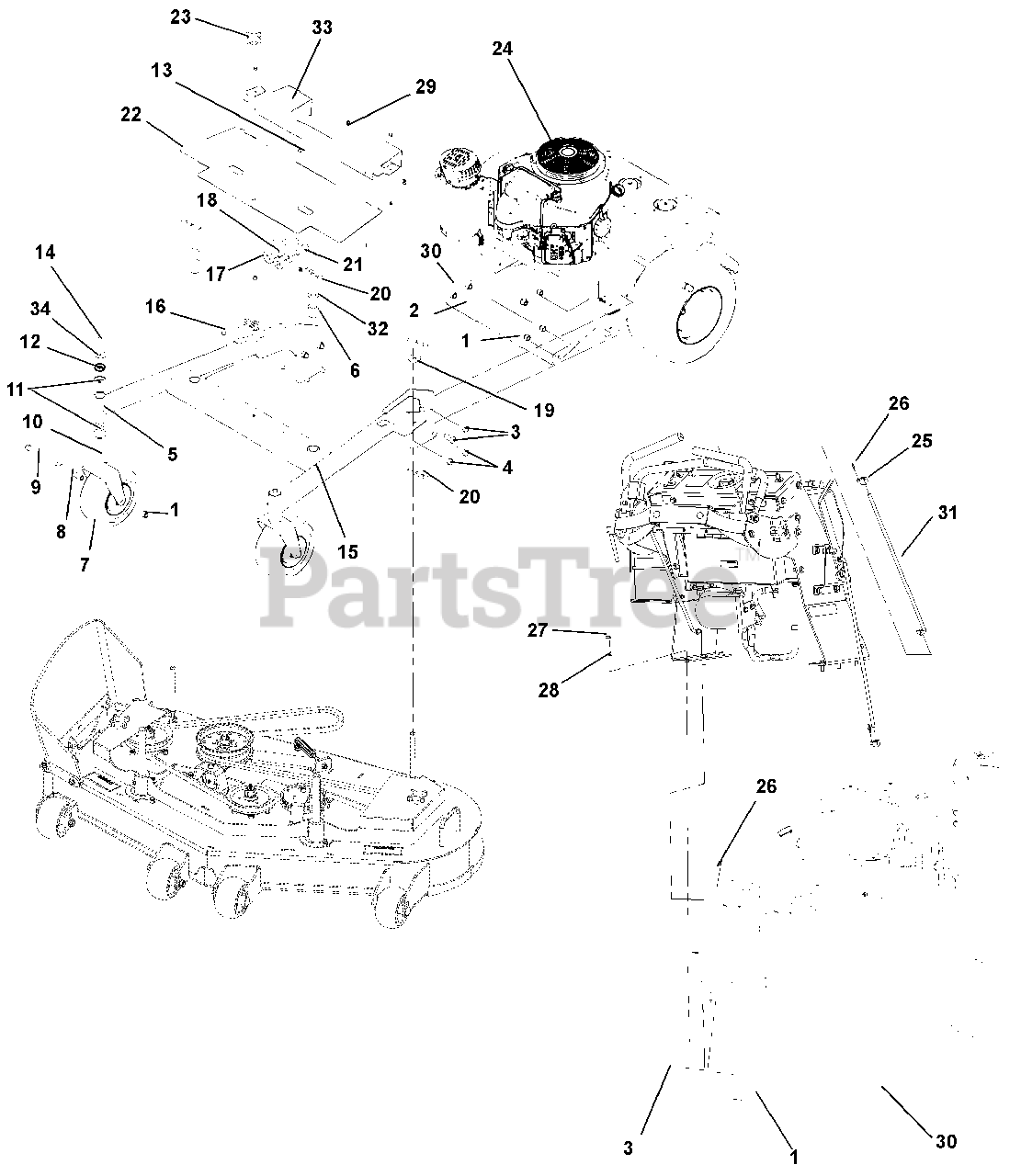

Console And Deck Mounting Parts Diagram

  • Title

1

Gravely 06540600

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 03925453

PLATE, ENGINE BED FRONT (988154, 155, 157, 158)

Note: (988154, 155, 157, 158)

$25.99

$

Usually ships in 4-12 days

0

Gravely 03932453

PLATE ,ENGINE BED FRONT (988153, 156)

Note: (988153, 156)

$27.99

$

Usually ships in 4-12 days

0

Gravely 04380253

PLATE ,ENGINE BED FRONT (988159, 169)

Note: (988159, 169)

$

$

Not available

3

Gravely 05958900

BOLT, 1/2-13 X 1.25 HEX 5 Y
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 05962000

BOLT, 1/2-13 X 1.50 HEX 5 Y
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 05500934

BSHG, FLG 1.00 X 1.25 X 1.50 X 1.50 EP REV

$6.99

$

In Stock, Qty 20+

0

7

Gravely 07100931

9X3.5-4 CAREFREE BLT TOGETHER

$136.99

$

In Stock, only 2 left!

0

8

Gravely D13003

TUBE, CASTER AXLE

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05964100

BOLT, .50-13 X 5.50 HEX 5 Y
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 03855153

WLDT, FRONT WHEEL FLOAT WALK

$122.99

$

Usually ships in 4-12 days

0

11

Gravely 04366100

BRG, FLG 1.00X1.25X1.00

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 06443400

WSH-FL-ST .38 X 1.50 X .125 REV
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

13

Gravely 05946800

BOLT, HEX .25-20 x .75 GR5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05958000

BOLT, .38-16 X 1.25 HEX 5 Y
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03841053

WLDT, DECK FRAME 52 FLWLK (988155, 158)

Note: (988155, 158)

$681.99

$

Usually ships in 4-12 days

0

Gravely 03858953

WLDT, DECK FRAME 48 FLWLK (988154, 157)

Note: (988154, 157)

$774.99

$

Usually ships in 4-12 days

0

Gravely 03902653

WLDT, DECK FRAME 36 FLWLK (988153, 156) (SN 000101 - 019999)

Note: (988153, 156) (SN 000101 - 019999)

$752.99

$

Usually ships in 4-12 days

0

Gravely 04553953

WLDT, DECK FRAME 36 FLWLK (988153, 156) (SN 020000 and up)

Note: (988153, 156) (SN 020000 and up)

$376.99

$

Usually ships in 4-12 days

0

Gravely 04366753

WLDT, DECK FRAME 61 FLWLK (988159, 169)

Note: (988159, 169)

$681.99

$

Usually ships in 4-12 days

0

16

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 3 left!

0

17

Gravely 03841023

WASHER, .905 X 1.750X.250

$

$

Not available

18

Gravely 06400913

WASHER, FLAT .630 x 1.50 x .25
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

19

Gravely 06442900

WASHER, FLAT-STEEL .688 X 1.75 X.134 REV
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

20

Gravely 06713300

PIN, HAIR-INTERNAL .17 X .68 X 3.50 REV B
(Superseded to 06700228)

$2.99

$

In Stock, only 1 left!

0

21

Gravely 05901321

BOLT, 5/8-11 X 1.50 HEX 8 Y
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 04247353

SHIELD, BELT 52 MAIN (988155, 158) (SN 000101 - 020999)

Note: (988155, 158) (SN 000101 - 020999)

$51.99

$

Usually ships in 4-12 days

0

Gravely 04588153

SHIELD, BELT 52 MAIN (988155, 158) (SN 021000 - 029999)

Note: (988155, 158) (SN 021000 - 029999)

$

$

Not available

Gravely 04664053

SHIELD, BELT 52" HYDRO WALK (988155, 158) (SN 030000 and up)

Note: (988155, 158) (SN 030000 and up)

$

$

Not available

Gravely 04229953

SHIELD, BELT 48 MAIN (988154, 157) (SN 000101 - 020999)

Note: (988154, 157) (SN 000101 - 020999)

$47.99

$

Usually ships in 4-12 days

0

Gravely 04588053

SHIELD, BELT 48 MAIN (988154, 157) (SN 021000 - 029999)

Note: (988154, 157) (SN 021000 - 029999)

$25.99

$

Usually ships in 4-12 days

0

Gravely 04660253

SHIELD, BELT 48" HYDRO WALK (988154, 157) (SN 030000 and up)

Note: (988154, 157) (SN 030000 and up)

$50.99

$

Usually ships in 4-12 days

0

Gravely 03932553

SHIELD, BELT 36 MAIN (988153, 156) (SN 000101 - 020999)

Note: (988153, 156) (SN 000101 - 020999)

$22.99

$

Usually ships in 4-12 days

0

Gravely 04456453

SHIELD, BELT 36" HYD WLK GRAVE (988153, 156) (SN 021000 and up)

Note: (988153, 156) (SN 021000 and up)

$

$

Not available

Gravely 04369953

SHIELD, BELT 61 FLOAT WALK (988159, 169) (SN 000101 - 029999)

Note: (988159, 169) (SN 000101 - 029999)

$50.99

$

Usually ships in 4-12 days

0

Gravely 04670853

SHIELD, BELT 61" HYDRO WALK (988159, 169) (SN 030000 and up)

Note: (988159, 169) (SN 030000 and up)

$

$

Not available

23

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 Prong (000101 - 020000)

Note: (000101 - 020000)

$10.99

$

Usually ships in 4-12 days

0

Gravely 04378100

KNOB, 3/8 -16 X .75 (020001 and up)

Note: (020001 and up)

$

$

Not available

24

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

25

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 00967353

RING, RUE .375 X .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 05948700

BOLT, .38-16 X 1.00 HEX 5 Y (988154, 155, 157, 158)
(Superseded to 05901711)

Note: (988154, 155, 157, 158)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06436200

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06531000

NUT, LOCK NYLON .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 03932053

PLATE, ENGINE BED REAR (988154, 155, 157, 158, 159, 169)

Note: (988154, 155, 157, 158, 159, 169)

$27.99

$

Usually ships in 4-12 days

0

Gravely 03932553

PLATE, ENGINE BED REAR (988153, 156)

Note: (988153, 156)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 03858912

ROD, DRIVE CONTROL FW (000101 - 020000)

Note: (000101 - 020000)

$

$

Not available

Gravely 03858913

ROD, DRIVE CONTROL FW (020001 - and up)

Note: (020001 - and up)

$

$

Not available

32

Gravely 06444700

WASHER, FL-STL REV
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

33

Gravely 04247253

SHIELD, BELT 52" (988155, 158) (SN 000101 - 020999)

Note: (988155, 158) (SN 000101 - 020999)

$49.99

$

Usually ships in 4-12 days

0

Gravely 04228953

SHIELD, BELT 48" (988153, 154, 156, 157) (SN 000101 - 021000)
(Superseded to 04585953)

Note: (988153, 154, 156, 157) (SN 000101 - 021000)

$33.99

$

Usually ships in 4-12 days

0

Gravely 04585953

SHIELD, BELT 52 PROWALK (988154, 155, 157, 158) (SN 021001 - 029999)

Note: (988154, 155, 157, 158) (SN 021001 - 029999)

$33.99

$

Usually ships in 4-12 days

0

34

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0
