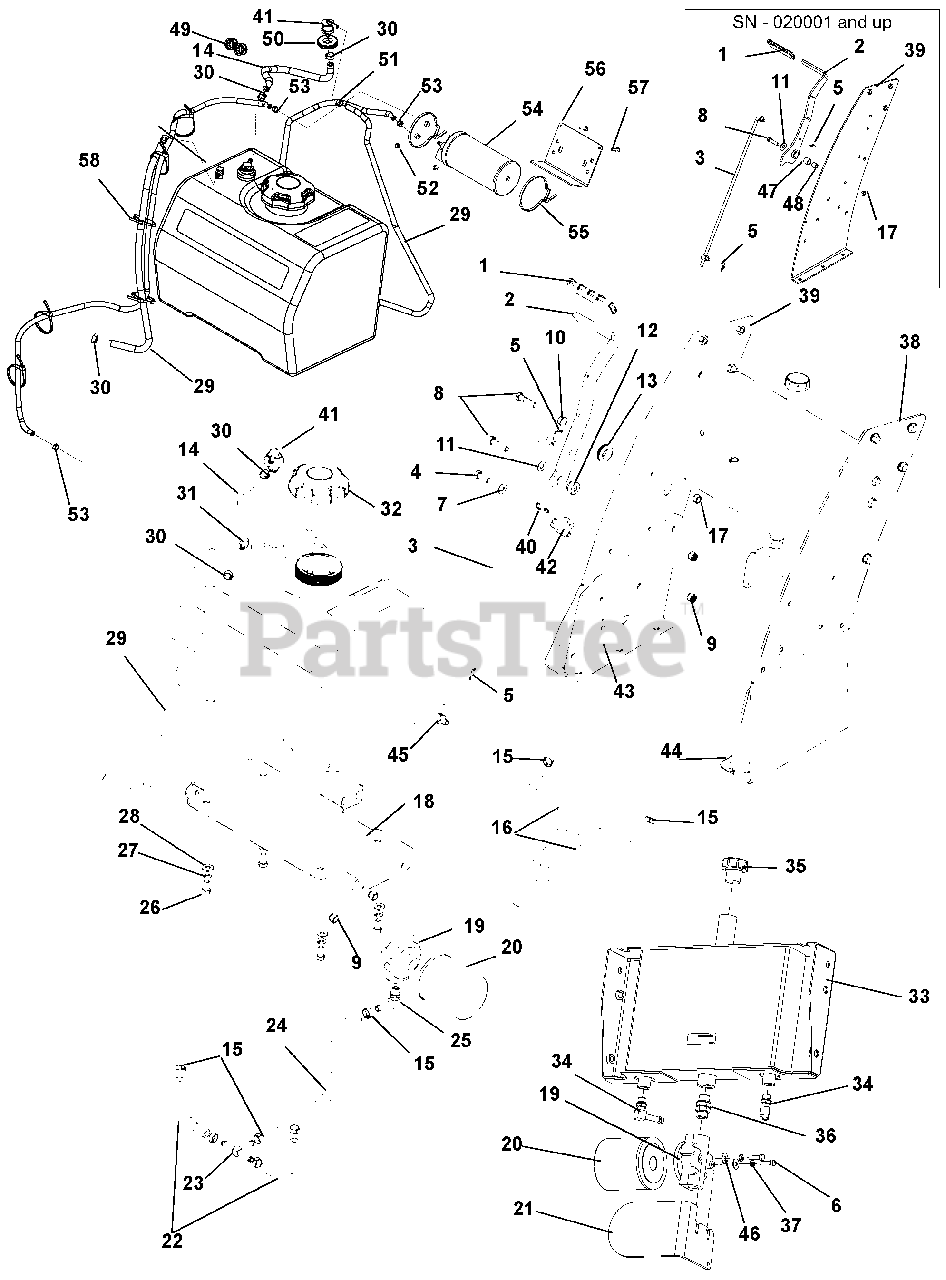

988153 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower, Pistol Grip, Recoil (SN: 000101 & Above) Fuel Tank, Hydraulic Tank And Parking Brake Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Pistol Grip, Recoil

Fuel Tank, Hydraulic Tank And Parking Brake Parts Diagram

  • Title

1

Gravely TCU19034

GRIP, PVC .250 X 1.00 X 3.63
(Superseded to 03826900)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 04147351

LEVER, HAND BRAKE FLOAT WALK (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely 04392251

PARK BRAKE LEVER WLDT (SN 020001 and up)

Note: (SN 020001 and up)

$72.99

$

In Stock, only 1 left!

0

3

Gravely 03858911

ROD, DRIVE CONTROL FW

$54.99

$

Usually ships in 4-12 days

0

4

Gravely 05948700

BOLT, HEX .38-16 X 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 05947700

BOLT, HEX .25-20 X 1.00 GR5 Y (SN 000101 - 020000)
(Superseded to 05901639)

Note: (SN 000101 - 020000)

$1.49

$

In Stock, Qty 9

0

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC (SN 020001 and up)
(Superseded to 05901705)

Note: (SN 020001 and up)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06436200

WASHER, FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05957900

BOLT, HEX .38-16X1.50 GR5 Y
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

9

Gravely 06535800

NUT-LOCKING-NYLON .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06534900

NUT-SPNLK-FLG .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435700

WASHER-FL-STL .38 X .875 X .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03886202

BUSHING, BRAKE LEVER STAND OFF

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 03384007

GROMMET: RUB:.88ID X 1.38OD X .14GR

$

$

Not available

14

Gravely 03832614

HOSE, FUEL HYDRO TANK - ROV

$

$

Not available

15

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, only 2 left!

0

16

Gravely 03832604

HOSE, HYD .375 X 10 (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely 03832621

HOSE, HYD .375 X 14.00" (SN 020001 and up)

Note: (SN 020001 and up)

$

$

Not available

17

Gravely 06529600

NUT, LK-CTR .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 04215051

BRACKET, FUEL TANK RMHF (SN 000101 - 010000)

Note: (SN 000101 - 010000)

$62.99

$

Usually ships in 4-12 days

0

Gravely 04215053

BRACKET, FUEL TANK RMHF (SN 010001 - 020000)

Note: (SN 010001 - 020000)

$

$

Not available

Gravely 04455153

BRACKET, FUEL TANK RMHF (SN 020001 - 021000)

Note: (SN 020001 - 021000)

$

$

Not available

Gravely 04589153

BRKT, FUEL TANK GRAVELY (SN 021001 and up)

Note: (SN 021001 and up)

$43.99

$

Usually ships in 4-12 days

0

19

Gravely 00200463

HEAD, OIL FILTER

$34.99

$

Usually ships in 4-12 days

0

20

Gravely GDA10137

FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

21

Gravely 03911551

GUARD, HYDRO FILTER FLWLK (SN 000101 - 010000)

Note: (SN 000101 - 010000)

$

$

Not available

Gravely 03911553

GUARD, HYDRO FILTER FLWLK (SN 010001 - 020000)

Note: (SN 010001 - 020000)

$

$

Not available

Gravely 04455253

GUARD, HYDRO FILTER GRAVELY (SN 021000 and up)

Note: (SN 021000 and up)

$

$

Not available

22

Gravely 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

23

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

24

Gravely 03832605

HOSE, HYD. .375 X 12

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$17.99

$

Usually ships in 4-12 days

0

26

Gravely 05959400

BOLT, HEX .38-16 X .75 GR5 Y
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06308800

WASHER, LK .38 X .094 REG
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06436200

WASHER, FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 03832612

HOSE, FUEL 1/4 X 15.00

$

$

Not available

30

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

31

Gravely 04953200

TANK, FUEL (SN 000101 - 021000)

Note: (SN 000101 - 021000)

$253.99

$

Usually ships in 4-12 days

0

Gravely 04952000

TANK, FUEL LOW PERM (SN 021001 and up)
(Superseded to 05283900)

Note: (SN 021001 and up)

$

$

Not available

32

Gravely 04952005

CAP, FUEL NONVENT, AUTOLOCK

$47.99

$

Usually ships in 4-12 days

0

33

Gravely D35031

WLDT, TANK (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$103.99

$

In Stock, only 1 left!

0

Gravely 04499153

WLDMT, TANK HYDRO STR PORT GRV (SN 020001 and up)

Note: (SN 020001 and up)

$142.99

$

Usually ships in 4-12 days

0

34

Gravely D24028

FTG, 90 9/16 MOR X 3/8 HOSE (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$

$

Not available

Gravely GDA10065

ADAPTER, STRAIGHT FITTING (SN 020001 and up)

Note: (SN 020001 and up)

$

$

Not available

35

Gravely D18333

CAP, OIL FILL BREATHER

$24.99

$

Usually ships in 4-12 days

0

36

Gravely 07001606

STRAIGHT UNION SAE 8

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 06308400

WASHER, LK .25 X .062 REG
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 04193151

WLDT, LH UPRIGHT TOWER 36 (SN 000101 - 010000) (988153)

Note: (SN 000101 - 010000) (988153)

$102.99

$

Usually ships in 4-12 days

0

Gravely 04193153

WLDT, LH UPRIGHT TOWER 36 (SN 010001 - 020000) (988153)

Note: (SN 010001 - 020000) (988153)

$

$

Not available

Gravely 04499653

WLDMT, LH UPRIGHT 36 PG GRAVEL (SN 020001 and up) (988153)

Note: (SN 020001 and up) (988153)

$97.99

$

Usually ships in 4-12 days

0

Gravely 04454553

WLDMT, LH UPRIGHT 18" ENG BED (SN 021000 and up) (988153)

Note: (SN 021000 and up) (988153)

$

$

Not available

Gravely 03982851

WLDT, LH UPRIGHT TOWER 36 G2 (SN 000101 - 010000) (988156)

Note: (SN 000101 - 010000) (988156)

$105.99

$

Usually ships in 4-12 days

0

Gravely 03982853

WLDT, LH UPRIGHT TOWER 36 G2 (SN 010001 - 020000) (988156)

Note: (SN 010001 - 020000) (988156)

$

$

Not available

Gravely 04454553

WLDT, LH UPRIGHT TOWER 36 G2 (SN 020001 and up) (988156)

Note: (SN 020001 and up) (988156)

$

$

Not available

39

Gravely 04193251

WLDT, RH UPRIGHT TOWER 36 (SN 000101 - 010000) (988153)

Note: (SN 000101 - 010000) (988153)

$125.99

$

Usually ships in 4-12 days

0

Gravely 04193253

WLDT, RH UPRIGHT TOWER 36 (SN 010001 - 020000) (988153)

Note: (SN 010001 - 020000) (988153)

$

$

Not available

Gravely 04456653

WLDMT, RH UPRIGHT 36 PG GRAVEL (SN 020001 and up) (988153)

Note: (SN 020001 and up) (988153)

$97.99

$

Usually ships in 4-12 days

0

Gravely 03982951

WLDT, RH UPRIGHT TOWER 36 G2 (SN 000101 - 010000) (988156)

Note: (SN 000101 - 010000) (988156)

$105.99

$

Usually ships in 4-12 days

0

Gravely 03982953

WLDT, RH UPRIGHT TOWER 36 G2 (SN 010001 - 020000) (988156)

Note: (SN 010001 - 020000) (988156)

$

$

Not available

Gravely 04454653

WLDT, RH UPRIGHT TOWER 36 G2 (SN 020001 and up) (988156)

Note: (SN 020001 and up) (988156)

$

$

Not available

40

Gravely 06116900

SCREW, 10-24 X .75 HWH
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

41

Gravely 04068910

VALVE, COMBINATION (988156)
(Superseded to 05185600)

Note: (988156)

$17.99

$

In Stock, only 1 left!

0

Gravely 04068920

VALVE, REMOTE ROLL OVER (988153)

Note: (988153)

$21.99

$

In Stock, only 1 left!

0

42

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

43

Gravely 04083551

PLATE, DOUBLE RH UPRIGHT BI (SN 000101 - 010000)

Note: (SN 000101 - 010000)

$31.99

$

Usually ships in 4-12 days

0

Gravely 04083553

PLATE, DOUBLE RH UPRIGHT BI (SN 010001 - 020000)

Note: (SN 010001 - 020000)

$

$

Not available

Gravely 04454953

PLATE, RH DOUBLER 36" GRAVELY (SN 020001 and up)

Note: (SN 020001 and up)

$16.99

$

Usually ships in 4-12 days

0

44

Gravely 04325951

PLATE, DOUBLE LH UPRIGHT BI (SN 000101 - 010000)

Note: (SN 000101 - 010000)

$

$

Not available

Gravely 04325953

PLATE, DOUBLE LH UPRIGHT BI (SN 010001 - 020000)

Note: (SN 010001 - 020000)

$

$

Not available

Gravely 04454853

PLATE, LH DOUBLER 36" GRAVELY (SN 020001 and up)

Note: (SN 020001 and up)

$16.99

$

Usually ships in 4-12 days

0

45

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

46

Gravely 06435800

WASHER-FLAT-STL .312 X .734 X .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 04392300

PARK BRAKE LEVER BUSHING (SN 021000 and up)

Note: (SN 021000 and up)

$

$

Not available

48

Gravely 04392400

PARK BRAKE LEVER SPACER (SN 021000 and up)

Note: (SN 021000 and up)

$18.99

$

Usually ships in 4-12 days

0

49

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56 (988153)

Note: (988153)

$3.99

$

In Stock, only 2 left!

0

50

Gravely 04068925

GROMMET, REMOTE ROV (988153)

Note: (988153)

$

$

Not available

51

Gravely 04097715

CLAMP, DBL PINCH 5/16" - 7/16" (988153)

Note: (988153)

$3.49

$

Usually ships in 4-12 days

0

52

Gravely 06500704

NUT-KEPS 10-24 (988153) (SN 021000 and up)

Note: (988153) (SN 021000 and up)

$3.99

$

Usually ships in 4-12 days

0

53

Gravely 04097700

CLAMP - HOSE, SPRING .188 (988153)

Note: (988153)

$

$

Not available

54

Gravely 04058210

400 CC CARBON CANISTER 3/16 PT (988153)

Note: (988153)

$96.99

$

Usually ships in 4-12 days

0

55

Gravely 00967006

CABLE TIE, .19 X 14.4 (988153)

Note: (988153)

$

$

Not available

56

Gravely 04309853

BRKT, CARB CANISTER MTG (988153)

Note: (988153)

$11.99

$

Usually ships in 4-12 days

0

57

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC (988153)
(Superseded to 05901837)

Note: (988153)

$2.49

$

In Stock, Qty 15

0

58

Gravely 00111910

CABLE TIE, .15 X 8.50 (988153)

Note: (988153)

$

$

Not available
