988150 (32 GR) - Gravely Pro-Gear 32" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Gas Tank Assembly Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Recoil Start

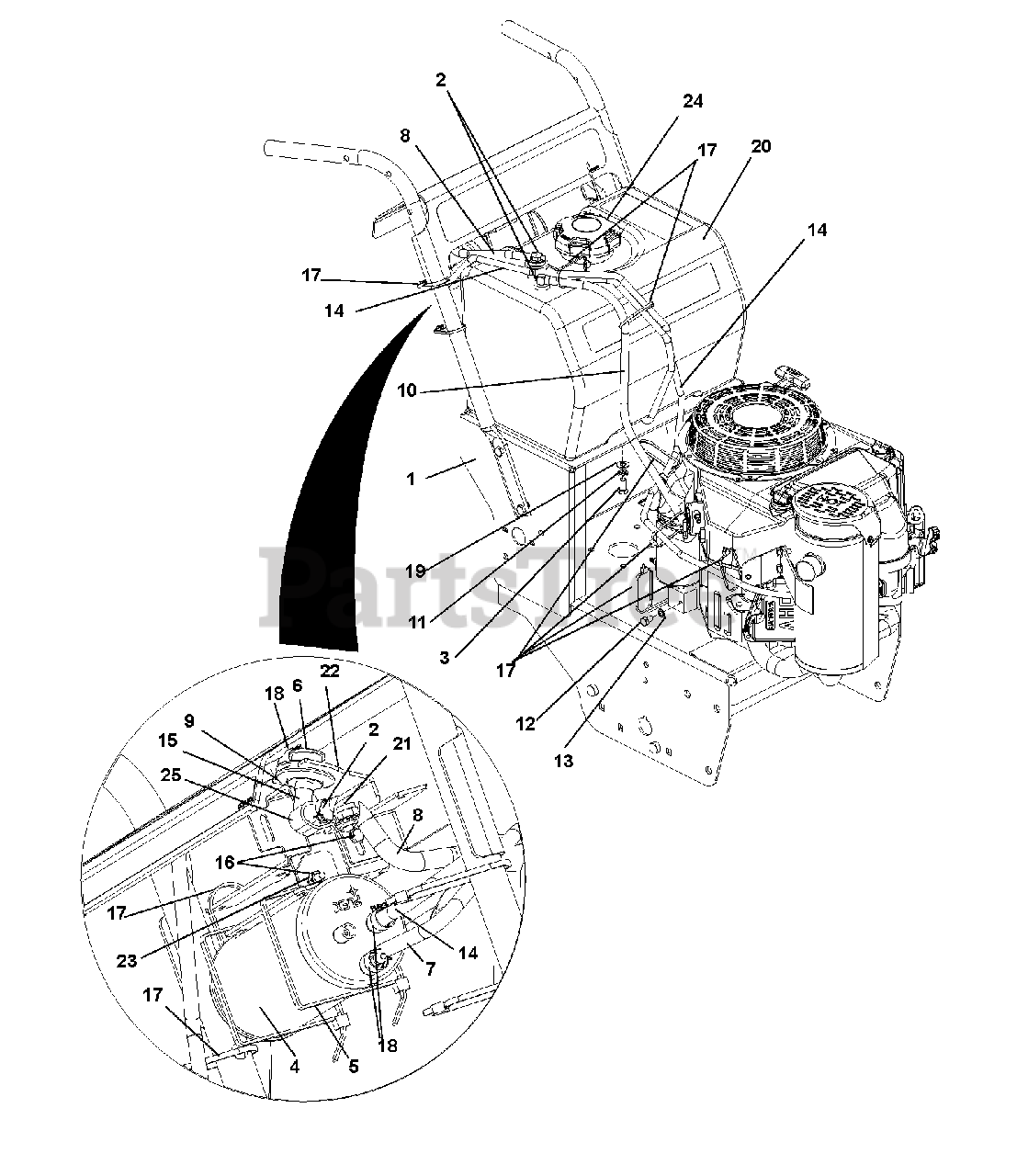

Gas Tank Assembly Parts Diagram

  • Title

1

Gravely 58808600

Frame, Gravely GRWK w/Decals (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$258.99

$

Usually ships in 4-12 days

0

Gravely 58809800

Frame, Gravely GRWLK w/Decals (SN 021000 +)

Note: (SN 021000 +)

$454.99

$

Usually ships in 4-12 days

0

2

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05959400

Bolt, .38-16 x .75 Hex Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04058210

400 CC Carbon Canister 3/16 Point

$96.99

$

Usually ships in 4-12 days

0

5

Gravely 00967006

Cable Tie, .19 x 14.4

$

$

Not available

6

Gravely 04068920

Valve, Remote Roll Over

$21.99

$

In Stock, only 1 left!

0

7

Gravely 03832619

Hose, 3/16 Remote ROV-Canister

$

$

Not available

8

Gravely 03832618

Hose, 1/4" Tank-Remote ROV GRW

$

$

Not available

9

Gravely 04068925

Grommet, Remote ROV

$

$

Not available

10

Gravely 03832612

Hose, Fuel .25 x 18.00

$

$

Not available

11

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05970001

Bolt, Hex M8 x 1.25 x 14
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06307200

Washer, Locking-EXT.326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 03832617

Hose, Purge Line 3/16 GRWLK

$

$

Not available

15

Gravely 07001632

Elbow Fitting, 1/4 x 1/4 Assembly

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

17

Gravely 00111910

Cable Tie, .15 x 8.50

$

$

Not available

18

Gravely 04097715

Clamp, Hose, Spring .188

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06436200

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 04953200

Assembly, Tank, Fuel FF CLPE Walk (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$253.99

$

Usually ships in 4-12 days

0

Gravely 04952000

Tank, Fuel Low Perm (SN 021000 +)
(Superseded to 05283900)

Note: (SN 021000 +)

$

$

Not available

21

Gravely 06542300

Nut, Locking-Flange M8-1.25
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 04265351

Bracket, ROV and CC Gear Walk

$19.99

$

Usually ships in 4-12 days

0

23

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert (SN 000101 – 019999)
(Superseded to 06500915)

Note: (SN 000101 – 019999)

$0.99

$

In Stock, Qty 20+

0

Gravely 06500704

Nut, 10-24 KEPS (SN 020000 +)

Note: (SN 020000 +)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 04952005

Cap, Fuel Nonvent, Autolock

$47.99

$

Usually ships in 4-12 days

0

25

Gravely AH89557

P-Clip, .500 Insulated

$5.49

$

In Stock, only 1 left!

0
