988147 (HR 1948 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki (SN: 000401 & Above) Fuel Tank, Hyraulic Tank, Brake, Battery - 48" And 52" Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki

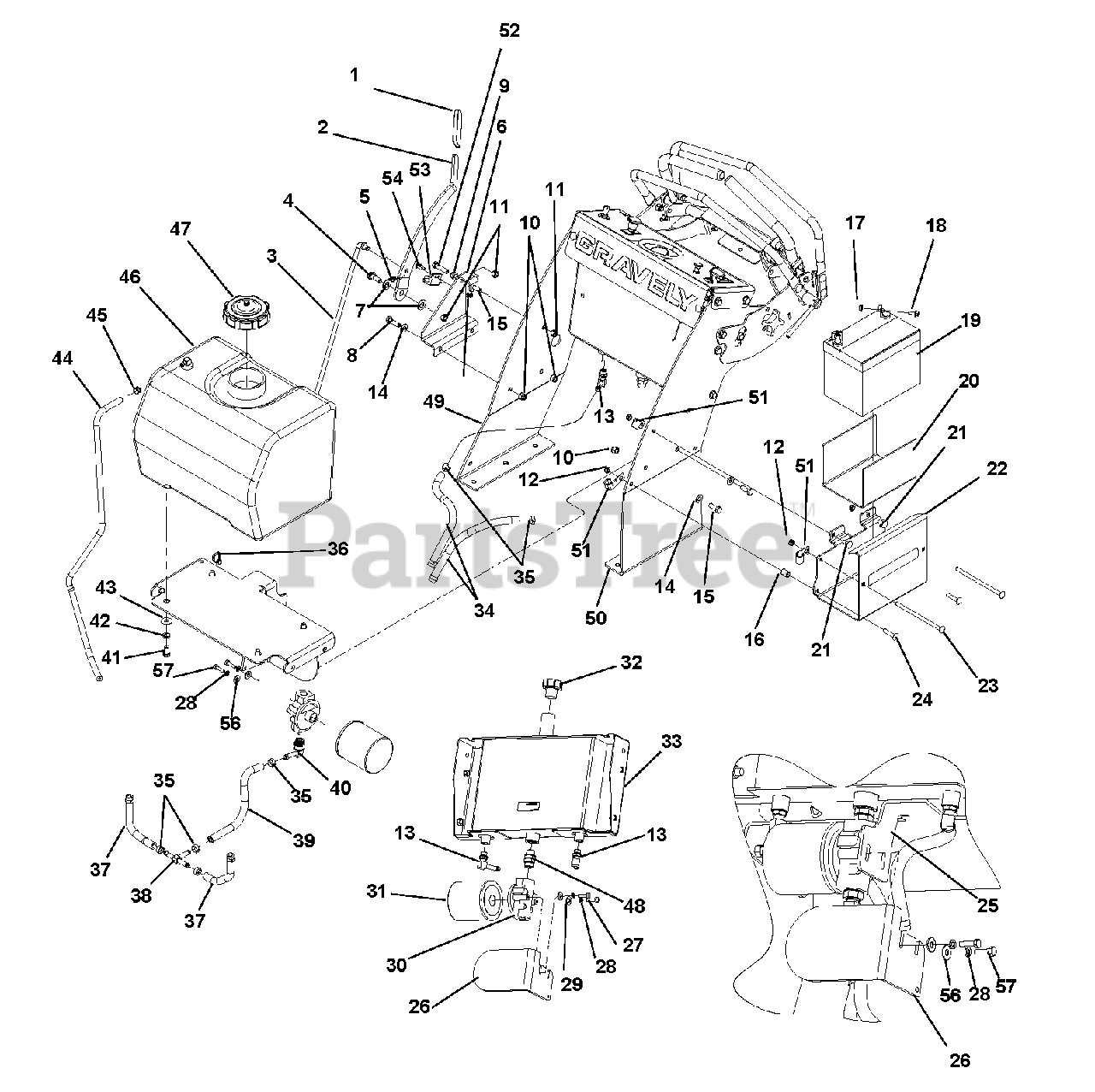

Fuel Tank, Hyraulic Tank, Brake, Battery - 48" And 52" Parts Diagram

  • Title

1

Gravely D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 03886251

LEVER, HAND BRAKE FLOAT WALK

$50.99

$

Usually ships in 4-12 days

0

3

Gravely 03858911

ROD, DRIVE CONTROL FW

$54.99

$

Usually ships in 4-12 days

0

4

Gravely 00135139

BOLT, 1/2 X 1.06 X 3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 00967353

RING, RUE .375 X .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 03935051

LOCATOR, BRAKE ARM WD

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 00967398

WASHER, .510 X 1.00 X .068 NYLON

$

$

Not available

8

Gravely 05958000

BOLT, .38-16 X 1.25 HEX 5 Y
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

11

Gravely 00964062

LOCKNUT, 3/8-16 CENTER Y
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely D24028

FTG, 90 9/16 MOR X 3/8 HOSE

$

$

Not available

14

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05948700

BOLT, .38-16 X 1.00 HEX 5 Y
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00203926

BUSHING, .364X.540X.700 Y

$

$

Not available

17

Gravely 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

18

Gravely 00963001

BOLT, 1/4-20 X .625 WSH Y

$

$

Not available

19

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

20

Gravely D28159

STRIP, BATTERY INSULATOR

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 06215700

BOLT, RDHDSQNK .31-18 X .75 G5Y
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 00203873

TRAY, BATTERY 1948 HYDRO
(Superseded to 04450951)

$42.99

$

Usually ships in 4-12 days

0

23

Gravely 03H1832

BOLT, 5/16-18 X 6.00 CRG 2 Y

$

$

Not available

24

Gravely 06212100

BOLT, RDHDSQNK .31-18 X 1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

25

Gravely 03853751

BRACKET, FUEL TANK RMHF

$

$

Not available

26

Gravely 03911551

GUARD, HYDRO FILTER FLWLK

$

$

Not available

27

Gravely 05947700

BOLT, .25-20 X 1.00 HEX 5 Y
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

28

Gravely 00960600

WASHER, .250 MED SPRG LOCK Y

$

$

Not available

29

Gravely 00960700

WASHER, .250 REG FLAT Y

$

$

Not available

30

Gravely 00200463

HEAD, OIL FILTER

$34.99

$

Usually ships in 4-12 days

0

31

Gravely GDA10137

FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

32

Gravely D18333

CAP, OIL FILL BREATHER

$24.99

$

Usually ships in 4-12 days

0

33

Gravely D32050

WLDT, TANK

$

$

Not available

34

Gravely 03832604

HOSE, HYD .375 X 11.5

$

$

Not available

35

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, only 2 left!

0

36

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

37

Gravely 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

38

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

39

Gravely 03832605

HOSE, HYD. .375 X 12

$14.99

$

Usually ships in 4-12 days

0

40

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$17.99

$

Usually ships in 4-12 days

0

41

Gravely 05959400

BOLT, .38-16 X .750 HEX 5 Y
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

43

Gravely 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 00192126

HOSE, FUEL 1/4 X 30.00

$

$

Not available

45

Gravely 03278800

CLAMP, HOSE - 1/2" SPRING

$1.49

$

In Stock, Qty 20+

0

46

Gravely 04943500

TANK, FUEL GRAVELY WALK REV G

$

$

Not available

47

Gravely 00181251

CAP, FUEL

$23.99

$

In Stock, only 1 left!

0

48

Gravely 07001606

STRAIGHT UNION SAE 8

$14.99

$

Usually ships in 4-12 days

0

49

Gravely 03980651

WLDT, RH UPRIGHT TOWER WDTL WALK

$

$

Not available

50

Gravely 03980751

WLDT, LH UPRIGHT TOWER WDTL WALK

$

$

Not available

51

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

52

Gravely 05957900

BOLT-HEX .38-16 X 1.50 GR5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

53

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

54

Gravely 00967340

SCREW, 10-24 X .625 PAN PHL

$

$

Not available

55

Gravely 00964013

LOCKNUT, 10-24 NYLOC

$

$

Not available

56

Gravely AA960700

WASHER, .250 REG FLAT
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

57

Gravely 05947700

Bolt-hex .25-20 x 1.00 GR5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0
