988147 (HR 1948 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki (SN: 000401 & Above) 48" And 52" Deck Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki

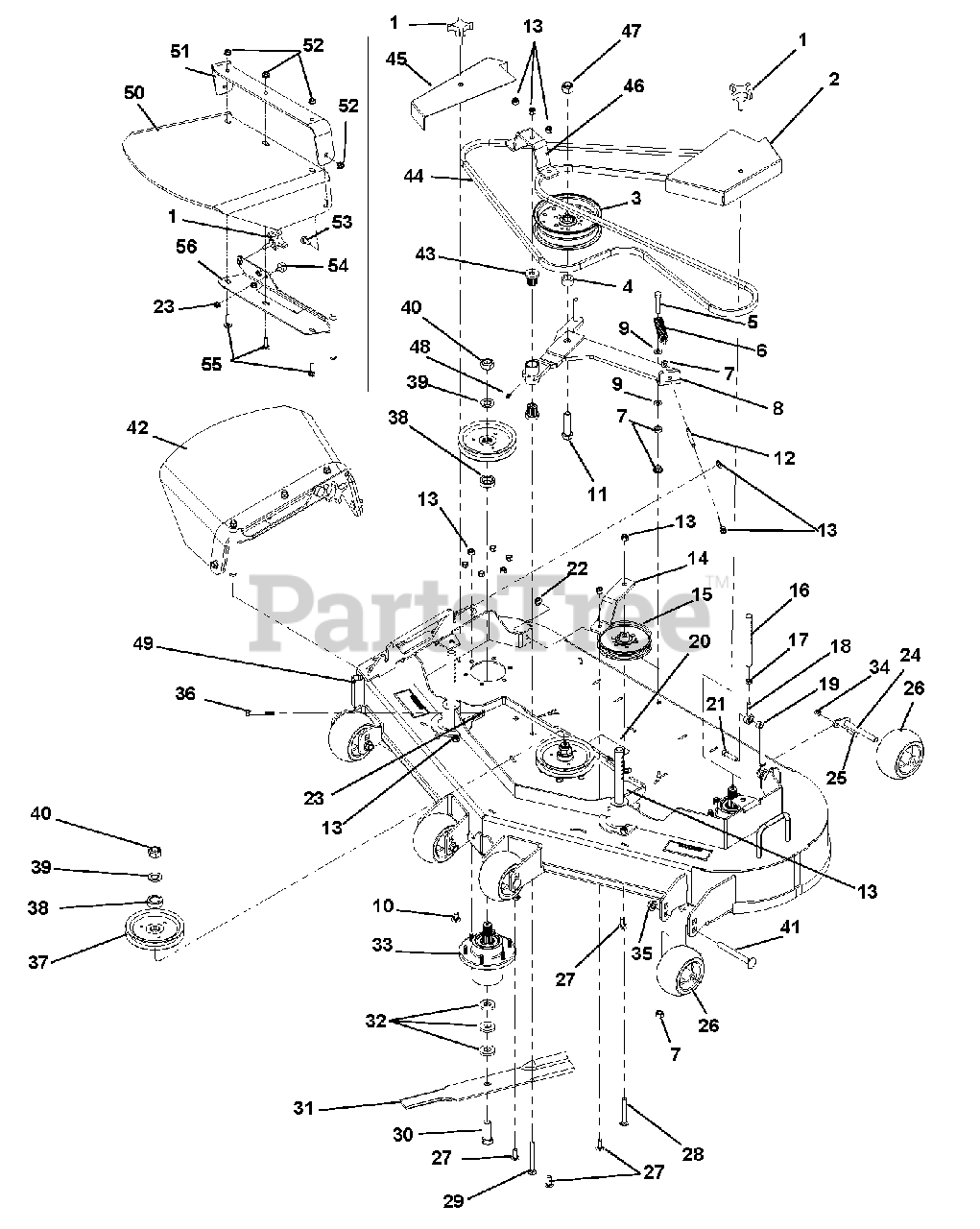

48" And 52" Deck Assembly Parts Diagram

  • Title

1

Gravely 03820400

KNOB, .38 x 1.25- 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 03899253

SHIELD, LH SPINDLE 52 FLWLK (988148)

Note: (988148)

$33.99

$

Usually ships in 4-12 days

0

Gravely 03901153

SHIELD, LH SPINDLE 48 FLWLK (988147)

Note: (988147)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 07300535

PULLEY, FLAT 6.00 X .635 W/BRG

$63.99

$

Usually ships in 4-12 days

0

4

Gravely 03846235

BUSHING, .688 X 1.13 X .55

$

$

Not available

5

Gravely 05958500

BOLT, 7/16-14 X 2.00 HEX 5 Y
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00110580

SPRING, EXT .875 X .125 X 4.25 Y

$17.99

$

In Stock, only 1 left!

0

7

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03860151

WLDT, IDLER ARM 48/52 FLOAT WALK

$186.99

$

Usually ships in 4-12 days

0

9

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06200004

BOLT, RDHDSHSQNK .38-16 X .75 G5
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05969300

BOLT, HEX .62-11X2.50 GR5Y

$4.99

$

In Stock, only 2 left!

0

12

Gravely 00104024

ROD, THREADED ADJUSTMENT

$24.99

$

Usually ships in 4-12 days

0

13

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

14

Gravely 03856451

STRAP, IDLER 52/48 WALK

$13.99

$

Usually ships in 4-12 days

0

15

Gravely D28050

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

16

Gravely 03841021

ROD, REAR HOC

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 06534700

NUT, JAM .375-24 YWZC REV
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 08790600

ROD, END 3/8 RH REV

$

$

Not available

19

Gravely 05522100

BSHG - SLV REV

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 03841019

ROD, FRONT HOC

$52.99

$

Usually ships in 4-12 days

0

21

Gravely 05957900

BOLT, HEX .38-16 X 1.50 GR5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

22

Gravely 06542000

NUT, LK-TOP-FLG .375-16 YWZC REV
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

24

Gravely GDA10103

PIVOT, RETAINER WELD

$55.99

$

In Stock, Qty 7

0

25

Gravely 03H1729

BOLT, 1/4-20 X 1.00 SQU SN Y
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

26

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, only 4 left!

0

27

Gravely 00963019

5BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

28

Gravely 06228100

BLT, RDHD SQNK .38-16 X 3.0 GR5YZ REV
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 03H1836

BLT, 3/8-16 X 3.50 CRG 5

$

$

Not available

30

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

31

Gravely GDU10231

BLADE, 18.000 X .80 LIFT (988148)

Note: (988148)

$30.99

$

In Stock, Qty 20+

0

Gravely GDU10230

BLADE, 16.500 X .80 LIFT (988147)

Note: (988147)

$28.99

$

In Stock, Qty 17

0

32

Gravely D18055

WASHER, BLADE
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

33

Gravely 00200262

ASSY, SPINDLE HOUSING

$262.99

$

In Stock, only 2 left!

0

34

Gravely H122207

Nut, 1/4" FLANGE PREVAILING TOR

$

$

Not available

35

Gravely E62934

LOCKNUT 1/2 W/FLANGE

$

$

Not available

36

Gravely 00967165

BOLT, 5/16-18 X 2.50 HEX 8 Y

$

$

Not available

37

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$68.99

$

In Stock, only 2 left!

0

38

Gravely D13024

SPACER, 1.500 X 1.000 X .510 Y

$12.99

$

In Stock, only 2 left!

0

39

Gravely 03399703

WASHER, .75 X 1.3125X .113
(Superseded to 06401037)

$

$

Not available

40

Gravely 00964024

LOCKNUT, 3/4-16 CROWN C
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 03H1853

BOLT, 1/2-13 X 4.50 CRG 5 Y

$

$

Not available

42

Gravely 56155053

ASSY, DISCHARGE SHIELD

$199.99

$

In Stock, only 1 left!

0

43

Gravely TCU14540

BRG, FLG M10 X M25 X M27 FLUTED

$17.99

$

In Stock, only 2 left!

0

44

Gravely 00181711

BELT, HB 131.0 EL AMD (988148)

Note: (988148)

$93.99

$

In Stock, only 3 left!

0

Gravely 07200519

BELT, HB 124.8 EL (988147)

Note: (988147)

$105.99

$

In Stock, Qty 20+

0

45

Gravely 03999753

SHIELD, RH SPINDLE 52 FLWLK (988148)

Note: (988148)

$33.99

$

Usually ships in 4-12 days

0

Gravely 04045853

SHIELD, LH SPINDLE 48 FLWLK (988147)

Note: (988147)

$90.99

$

Usually ships in 4-12 days

0

46

Gravely 03854951

STRAP, IDLER 52 FLOAT WALK (988148)

Note: (988148)

$31.99

$

Usually ships in 4-12 days

0

Gravely 03842051

STRAP, IDLER 48 FLWLK (988147)

Note: (988147)

$22.99

$

Usually ships in 4-12 days

0

47

Gravely 06540700

NUT, LK-NYL .625-11 YWZC REV

$3.99

$

In Stock, only 2 left!

0

48

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

49

Gravely 50498000

ASSY, 52" FLOAT DECK W/DECALS (988148)

Note: (988148)

$1464.99

$

Usually ships in 4-12 days

0

Gravely 50498001

ASSY, 48" DECK W/ DECALS (988147)

Note: (988147)

$1162.99

$

Usually ships in 4-12 days

0

50

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$

$

Not available

51

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$62.99

$

Usually ships in 4-12 days

0

52

Gravely 06534900

NUT, SPNLK-FLG .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

53

Gravely 06223600

BOLT, RDHDSQNK .38-16 X 1.00 G5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

54

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

55

Gravely 06224100

BOLT, RDHDSQNK .38-16 X 1.25 G5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

56

Gravely 03981953

WLDT. DISCHARGE

$88.99

$

Usually ships in 4-12 days

0
