988147 (HE 1948 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki (SN: 000101 - 000400) Console & Controls Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki

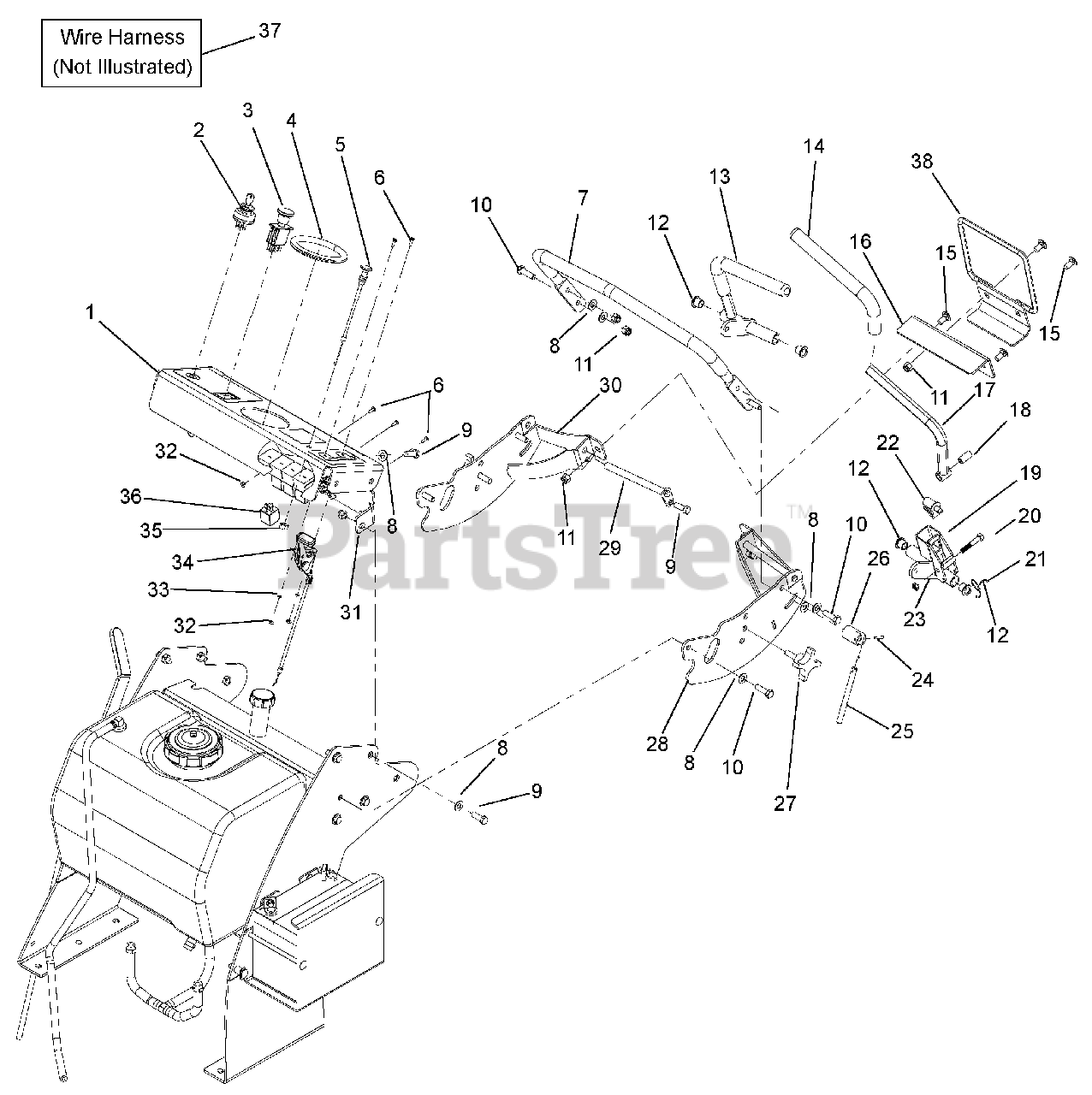

Console & Controls Parts Diagram

  • Title

1

Gravely 03859801

ASSY, CONSOLE W/DECALS

$

$

Not available

2

Gravely 00180620

SWITCH, KEY - 3 POSITION

$35.99

$

Usually ships in 4-12 days

0

3

Gravely 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

In Stock, only 1 left!

0

4

Gravely 00170900

TRIM, RUBBER EDGE 12"

$12.24

$

Usually ships in 4-12 days

0

5

Gravely 00180273

CABLE, CHOKE 48"

$52.99

$

In Stock, only 1 left!

0

6

Gravely D24020

SCREW, 8-32 X .50 PAN PHL Y

$

$

Not available

7

Gravely D38026

HANDLE, LOOP HYDRO

$125.99

$

Usually ships in 4-12 days

0

8

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 00960046

BOLT, 3/8-16 X 1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00960047

BOLT, 3/8-16 X 1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

12

Gravely D18013

BRG, FLG .500 X .625 X .500 BRNZ

$

$

Not available

13

Gravely 00203897

WLDT, RH DRIVE LEVER

$

$

Not available

14

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$7.99

$

In Stock, only 1 left!

0

15

Gravely 00963033

BOLT, 3/8-16 X 3/4 CRG 5 LN Y

$

$

Not available

16

Gravely 00203882

DRIVE ARM BACK PLATE

$

$

Not available

17

Gravely 00203902

WLDT, LH DRIVE LEVER

$

$

Not available

18

Gravely D33004

SPACER, .330 X .500 X .980

$

$

Not available

19

Gravely 00203898

WLDT, LH HANDLE MOUNT

$

$

Not available

20

Gravely 00960026

BOLT, 5/16-18 X 1.75 HEX 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

21

Gravely D38003

SPRING, TOR 1.00 X .062 Y

$

$

Not available

22

Gravely AM103119

SWITCH, SEAT OVER RIDE (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

23

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 34H60

PIN, SPRING

$

$

Not available

25

Gravely D13309

LEVER, LOCK Y

$

$

Not available

26

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

27

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 00203885

WLDT, LH CONTROL MOUNT

$

$

Not available

29

Gravely 00203893

WLDT, PIN AND LOCK

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 00203886

WLDT, RH CONTROL MOUNT

$

$

Not available

31

Gravely 03859802

ASSY, HANDLE BRACE W/DECALS

$

$

Not available

32

Gravely 00967037

NUT, 8-32 STD HEX Y
(Superseded to 06529900)

$

$

Not available

33

Gravely 00967038

WASHER, #8 MED SPRG LOCK Y
(Superseded to 06300112)

$

$

Not available

34

Gravely 00200413

CABLE, THROTTLE - 49.5
(Superseded to 06900714)

$34.99

$

In Stock, only 1 left!

0

35

Gravely 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

36

Gravely 00102770

RELAY, ISO MINI ELEC.

$21.99

$

Usually ships in 4-12 days

0

37

Gravely 03756700

HARNESS, ELEC START WALK

$

$

Not available

38

Gravely 03864451

WLDT, REVERSE INDEX BAR

$

$

Not available
