988147 (HE 1948 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki (SN: 000101 - 000400) 48 & 52" Deck Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki

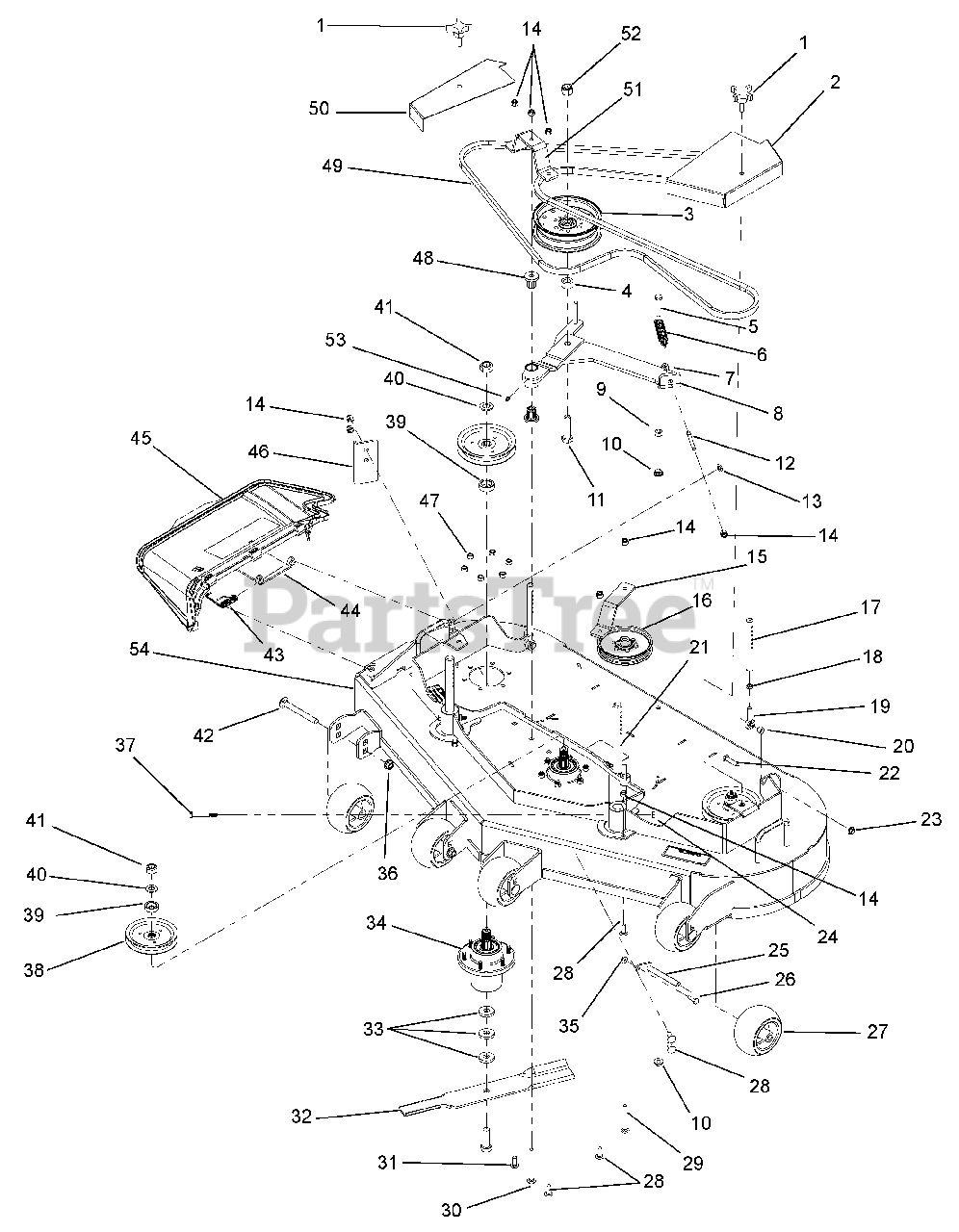

48 & 52" Deck Assembly Parts Diagram

  • Title

1

Gravely D18047

KNOB, STAR 3/8-16 X 1.00

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 03899253

SHIELD, LH SPINDLE 52 FLWLK (988148)

Note: (988148)

$33.99

$

Usually ships in 4-12 days

0

Gravely 03901153

SHIELD, LH SPINDLE 48 FLWLK (988147)

Note: (988147)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 07300535

PULLEY, FLAT 6.00 X .635 W/BRG

$63.99

$

Usually ships in 4-12 days

0

4

Gravely 03846235

BUSHING, .688 X 1.13 X .55

$

$

Not available

5

Gravely 00960083

BOLT, 7/16-14 X 2.00 HEX 5 Y
(Superseded to 05982200)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00110580

SPRING, EXT .875 X .125 X 4.25 Y

$17.99

$

In Stock, only 1 left!

0

7

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03860151

WLDT, IDLER ARM 48/52 FLOAT WALK

$186.99

$

Usually ships in 4-12 days

0

9

Gravely 00960503

NUT, 7/16-14 STD HEX GR5 Y
(Superseded to 06503500)

$3.49

$

In Stock, only 4 left!

0

10

Gravely 00967342

LOCKNUT, 7/16-14 WHIZ Y
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 00960159

BOLT, 5/8-11 X 2.50 HEX 5 Y

$

$

Not available

12

Gravely 00104024

ROD, THREADED ADJUSTMENT

$24.99

$

Usually ships in 4-12 days

0

13

Gravely H141123

RETAINER #

$

$

Not available

14

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

15

Gravely 03856451

STRAP, IDLER 52/48 WALK

$13.99

$

Usually ships in 4-12 days

0

16

Gravely D28050

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

17

Gravely 03841021

ROD, REAR HOC

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 06534700

NUT, JAM .375-24 YWZC REV
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

19

Gravely 08790600

ROD, END 3/8 RH REV

$59.99

$

Usually ships in 4-12 days

0

20

Gravely 05522100

BSHG - SLV REV

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 03841019

ROD, FRONT HOC

$52.99

$

Usually ships in 4-12 days

0

22

Gravely 00960048

BOLT, 3/8-16 X 1.50 HEX 5 Y
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

23

Gravely 06542000

NUT, LK-TOP-FLG .375-16 YWZC REV
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

25

Gravely GDA10103

PIVOT, RETAINER WELD

$55.99

$

In Stock, Qty 7

0

26

Gravely 03H1729

BOLT, 1/4-20 X 1.00 SQU SN Y
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

27

Gravely TCU18744

WHEEL, GAGE

$14.99

$

Usually ships in 4-12 days

0

28

Gravely 00963019

BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

29

Gravely 06228100

BLT, RDHD SQNK .38-16 X 3.0 GR5YZ REV
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

30

Gravely 06200117

BLT, RDHD SQNK .375-16 X 3.75 YWZC

$

$

Not available

31

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

32

Gravely GDU10231

BLADE, 18.000 X .80 LIFT (988148)

Note: (988148)

$30.99

$

In Stock, Qty 20+

0

Gravely GDU10230

BLADE, 16.500 X .80 LIFT (988147)

Note: (988147)

$28.99

$

In Stock, Qty 13

0

33

Gravely D18055

WASHER, BLADE
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

34

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$267.99

$

In Stock, only 2 left!

0

35

Gravely H122207

NUT, 1/4" FLANGE PREVAILING TOR

$

$

Not available

36

Gravely E62934

LOCKNUT 1/2 W/FLANGE

$

$

Not available

37

Gravely 00967165

BOLT, 5/16-18 X 2.50 HEX 8 Y

$

$

Not available

38

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$68.99

$

In Stock, only 2 left!

0

39

Gravely D13024

SPACER, 1.500 X 1.000 X .510 Y

$13.99

$

In Stock, only 2 left!

0

40

Gravely 03399703

WASHER, .75 X 1.3125X .113
(Superseded to 06401037)

$1.99

$

Usually ships in 4-12 days

0

41

Gravely 00964024

LOCKNUT, 3/4-16 CROWN C
(Superseded to 06500031)

$3.99

$

In Stock, only 2 left!

0

42

Gravely 03H1853

BOLT, 1/2-13 X 4.50 CRG 5 Y

$

$

Not available

43

Gravely 03393800

SPRING, DISCHARGE CHUTE

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 00200095

BRACKET, CHUTE SUPPORT 48" DECK

$25.99

$

Usually ships in 4-12 days

0

45

Gravely TCA16387

CHUTE DISCHARGE ASST #

$35.99

$

In Stock, only 2 left!

0

46

Gravely 03754053

PLATE, EXTENDER 48" HYDRO

$

$

Not available

47

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

48

Gravely TCU14540

BRG, FLG M10 X M25 X M27 FLUTED

$17.99

$

In Stock, only 2 left!

0

49

Gravely 00181711

BELT, HB 131.0 EL AMD (988148)

Note: (988148)

$94.99

$

In Stock, only 2 left!

0

Gravely 07200519

BELT, HB 124.8 EL (988147)

Note: (988147)

$109.99

$

In Stock, Qty 20+

0

50

Gravely 03899353

SHIELD, RH SPINDLE 52 FLWLK (988148)

Note: (988148)

$33.99

$

Usually ships in 4-12 days

0

Gravely 03901253

SHIELD, LH SPINDLE 48 FLWLK (988147)

Note: (988147)

$

$

Not available

51

Gravely 03854951

STRAP, IDLER 52 FLOAT WALK (988148)

Note: (988148)

$31.99

$

Usually ships in 4-12 days

0

Gravely 03842051

STRAP, IDLER 48 FLWLK (988147)

Note: (988147)

$22.99

$

Usually ships in 4-12 days

0

52

Gravely 06540700

NUT, LK-NYL .625-11 YWZC REV

$3.99

$

Usually ships in 4-12 days

0

53

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

54

Gravely 03854501

ASSY, 52" FLOAT DECK W/DECALS (988148)

Note: (988148)

$

$

Not available

Gravely 03860701

ASSY, 48" DECK W/ DECALS (988147)

Note: (988147)

$

$

Not available
