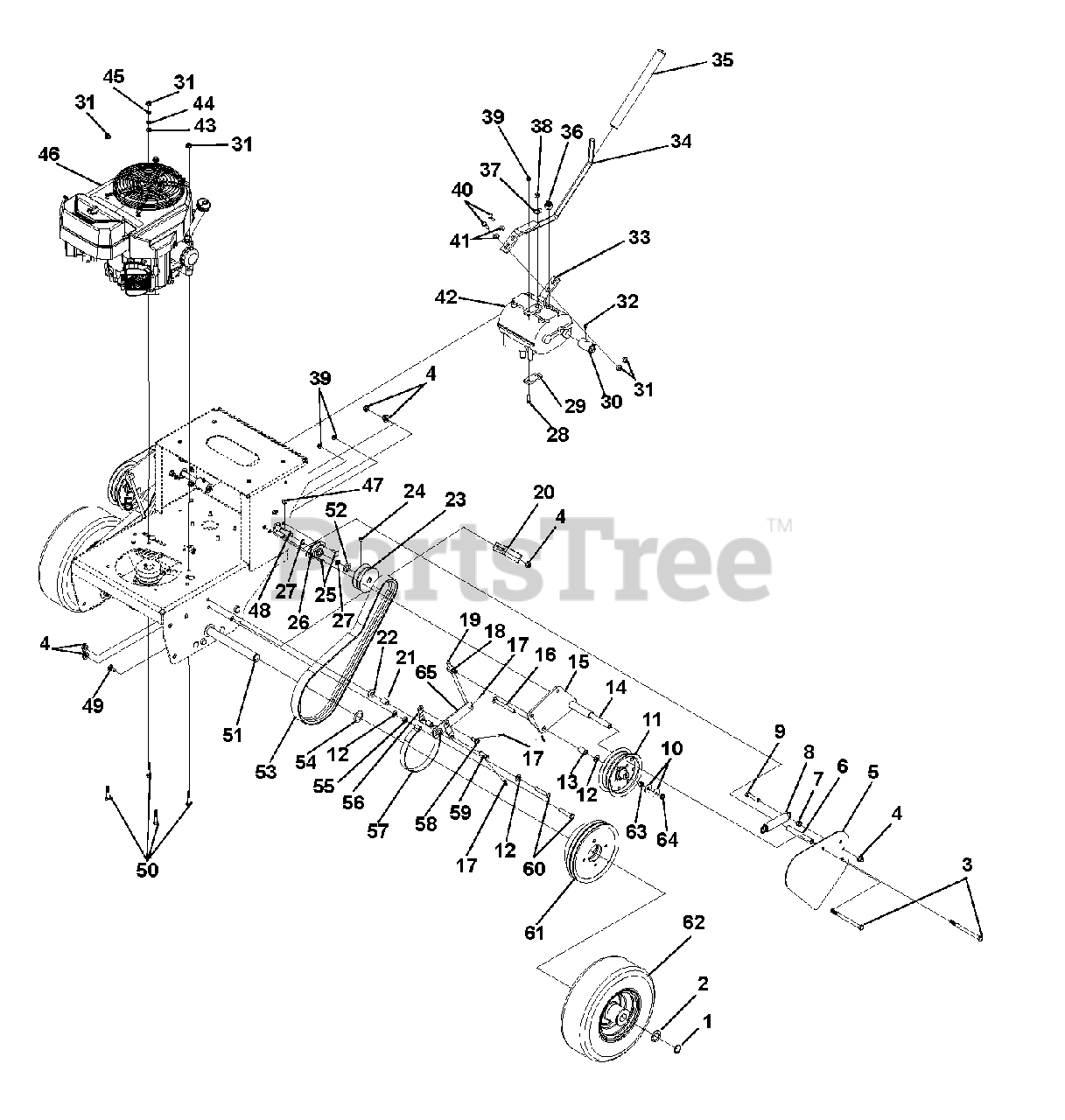

988145 (GR 1548 FX) - Gravely Pro-Gear 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 000400) Engine & Traction Control Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Engine & Traction Control Parts Diagram

  • Title

1

Gravely 05707300

Ring-Retaining-External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

2

Gravely 06436300

Washer, Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00960062

Bolt, .38-16 x5.00 Hex 5
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03296651

Cover, Traction Belt

$

$

Not available

6

Gravely 05500835

Bushing,S.385 x .610 x 4.32 Steel

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 00960502

Nut, .38-16 Standard Hex Grade 5

$

$

Not available

8

Gravely 08346800

Spring-Tension .105 x 1.00 x 5.0

$14.99

$

In Stock, only 2 left!

0

9

Gravely 00960049

Bolt, .38-16 x 1.75 Hex 5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06425500

Washer, Flat Steel .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

11

Gravely D18032

Pulley, Flat 5.0 x .38 w/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 1 left!

0

12

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05509000

Bushing, Sleeve .375 x .625 x .1.000

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 05500835

Bushing, S.385 x .610 x 4.32 Steel

$31.99

$

Usually ships in 4-12 days

0

15

Gravely 03292251

Weldment, Wheel Clutching Arm-Left Hand

$

$

Not available

16

Gravely 06222400

Bolt, Round Head Square Neck .38-16 x 3.5 Grade 5
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

17

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

18

Gravely D33002

Swivel, .38-24

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 03369100

Rod, Brake Actuating

$13.99

$

Usually ships in 4-12 days

0

20

Gravely 03299151

Plate, Belt Finger

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 08833400

Bushing, S.391 x .622 x .95 St

$5.99

$

In Stock, only 1 left!

0

22

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 07328500

Sheave, Drive 3.25 OD x .625 ID
(Superseded to 07328551)

$193.99

$

Usually ships in 4-12 days

0

24

Gravely 06005500

Screw, Set .31-18X.38 Socket Head

$2.99

$

In Stock, Qty 15

0

25

Gravely 00963095

Bolt, .25-20 x .750 Crg 5
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05426400

Bearing, Flange .625 x 1.875 x .797

$62.99

$

In Stock, Qty 8

0

27

Gravely 05711900

Ring, Retaining-External .579 x .035

$0.99

$

In Stock, Qty 20+

0

28

Gravely 00960002

Bolt, .25-20 x 1.00 Hex 5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

29

Gravely 04923000

Plate, Shift

$

$

Not available

30

Gravely 04901200

Coupler

$40.99

$

Usually ships in 4-12 days

0

31

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 04922951

Bracket, Shift Lever

$39.99

$

Usually ships in 4-12 days

0

34

Gravely 03369851

Welment, Shift Lever

$109.99

$

Usually ships in 4-12 days

0

35

Gravely 00675200

Grip, Handlebar

$9.49

$

In Stock, only 1 left!

0

36

Gravely 02913100

Switch, Nuetral Start (N.O.)

Note: (N.O.)

$45.99

$

In Stock, Qty 7

0

37

Gravely 06306700

Washer, Locking .375 x .130

$3.99

$

In Stock, only 1 left!

0

38

Gravely 06539400

Nut, Locking-Center .375-24
(Superseded to 06500929)

$2.49

$

In Stock, only 4 left!

0

39

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

40

Gravely 00960032

Bolt, .3125-18 x 3.25 Hex 5

$

$

Not available

41

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 04901000

Transmission

$517.99

$

Usually ships in 4-12 days

0

43

Gravely AA960601

Washer, .313 Medium Spring Lock
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 06500011

Nut, Locking-Center Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, Qty 5

0

45

Gravely 06307200

Washer, Locking-EXT .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

46

Gravely 08200414

Engine, KAWI FH381V KAI 13HP (143, 144)

Note: (143, 144)

$

$

Not available

Gravely 00200342

Engine, Kawasaki 15HP Vertical (145)

Note: (145)

$

$

Not available

47

Gravely 06608700

Key, Woodruff .19 x .75 HRD#9

$1.49

$

In Stock, Qty 20+

0

48

Gravely 04923100

Shaft, Half

$68.99

$

Usually ships in 4-12 days

0

49

Gravely 00963033

Bolt, .38-16 x .750 CRG 5 LN

$

$

Not available

50

Gravely 00960026

Bolt, .3125-18 x 1.75 Hex 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

51

Gravely 03386800

Shaft, Axle

$83.99

$

Usually ships in 4-12 days

0

52

Gravely 06400830

Washer, Flat .765 x 1.125 x .187

$3.49

$

Usually ships in 4-12 days

0

53

Gravely 07400037

Belt, Gear Drive 49" Elbow COG

$104.99

$

In Stock, Qty 7

0

54

Gravely 06416600

Washer, Hard-Thrust 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

55

Gravely 00960502

Nut, .38-16 Standard Hex Grade 5

$

$

Not available

56

Gravely 08831951

Link, Brake Arm

$15.99

$

In Stock, only 1 left!

0

57

Gravely 08880600

Assembly, Brake Band, Pro

$58.99

$

In Stock, only 2 left!

0

58

Gravely 00967176

Pin, CVS .375 x .750 x .516
(Superseded to 06814800)

$3.99

$

In Stock, only 4 left!

0

59

Gravely 06814900

Pin, Clevis .38 x 1.25

$3.99

$

In Stock, only 2 left!

0

60

Gravely 00960050

Bolt, .38-16 x 2.00 Hex 5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

61

Gravely 07326900

Assembly, Pulley and Drum

$193.99

$

In Stock, Qty 6

0

62

Gravely 07100734

Assembly, Wheel And Tire 6 x 3.5 (143)

Note: (143)

$148.99

$

Usually ships in 4-12 days

0

Gravely 07100239

Assembly, Wheel and Tire 6 x 4.5 (144, 145)

Note: (144, 145)

$159.99

$

Usually ships in 4-12 days

0

63

Gravely 00964062

Locknut, .38-16 Center
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

64

Gravely 06537200

Nut, Locking-Jam-Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

65

Gravely 03371851

Weldment, Brake Actuating Lever

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 03748502

Air Filter
(Superseded to 21538000)

$18.99

$

In Stock, Qty 20+

0

NS

Gravely 00181073

Oil Filter
(Superseded to 21535800)

$18.99

$

In Stock, Qty 20+

0

NS

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$

$

Not available
