988143 (GR 1332 FX) - Gravely Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000401 & Above) Discharge Shield Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

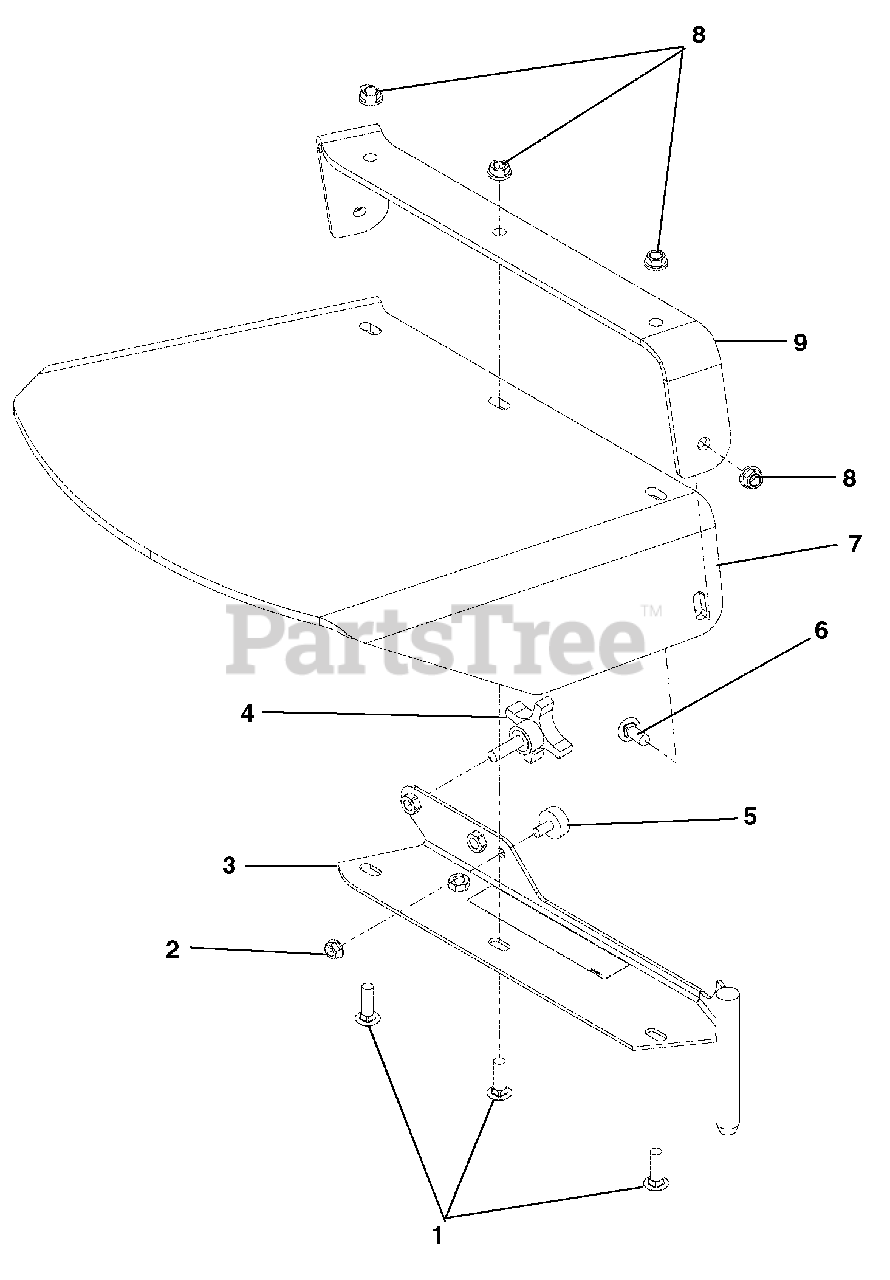

Discharge Shield Parts Diagram

  • Title

1

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 00964019

Locknut, .313-18 Whiz
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03981953

Weldment, Discharge

$88.99

$

Usually ships in 4-12 days

0

4

Gravely 03820400

Knob, .375 x 1.25-4 Prong

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

6

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

7

Gravely 04044200

Shield, Walk Rubber Discharge

$

$

Not available

8

Gravely 06534900

Nut, Spin Lock Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03983853

Strap, Gravely Walk Rubber Discharge Chute

$62.99

$

Usually ships in 4-12 days

0
