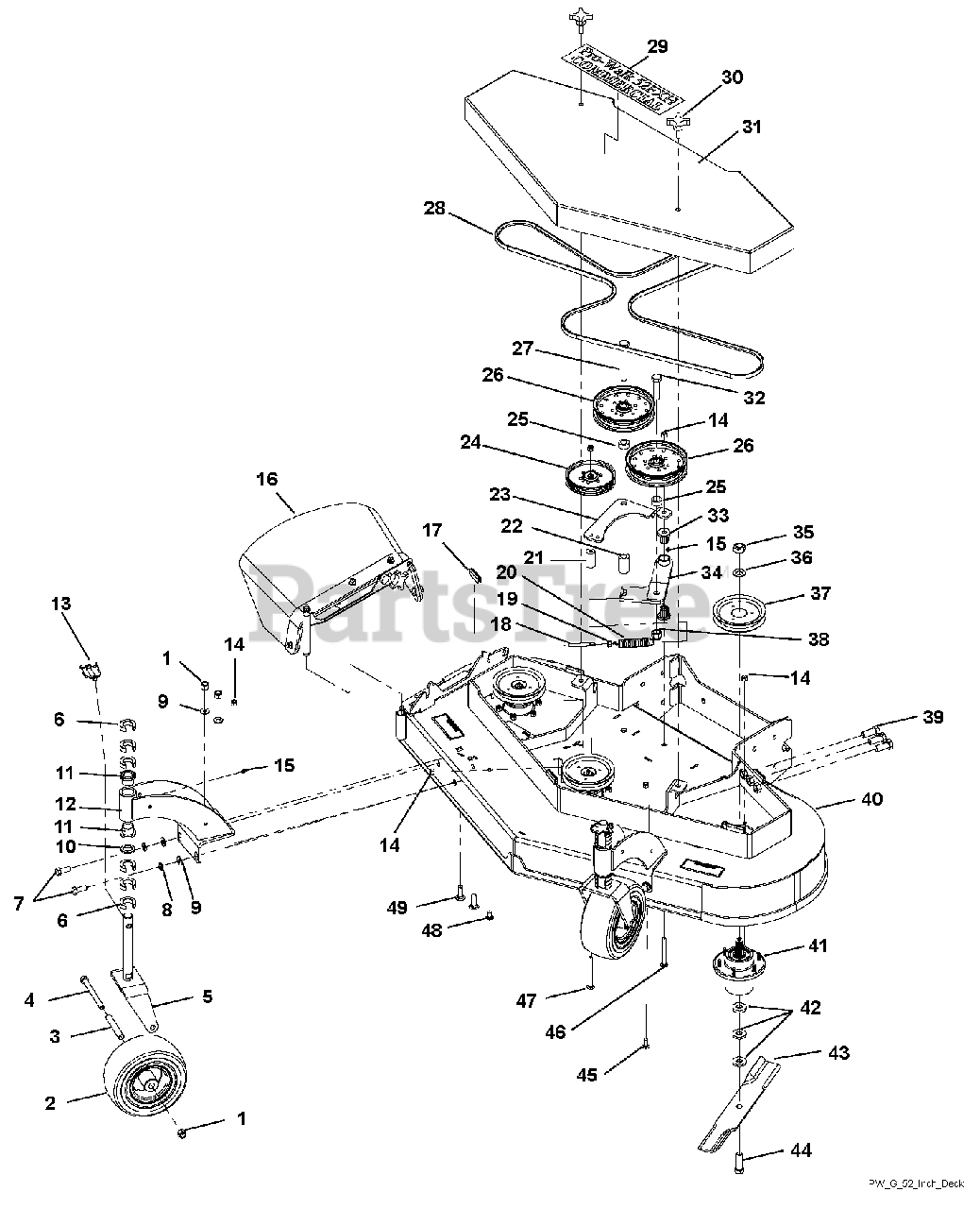

988142 (HR 1952 FX) - Gravely Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) 52-inch Deck Assembly Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

52-inch Deck Assembly Parts Diagram

  • Title

1

Gravely 06540600

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 2 left!

0

3

Gravely D13003

Tube, Caster Axle

$20.99

$

Usually ships in 4-12 days

0

4

Gravely 05964100

Bolt, .50-13 x 5.50 Hex Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 00203933

Weldment, Caster Yoke w/Gravely Paint

$204.99

$

Usually ships in 4-12 days

0

6

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 6

0

7

Gravely 05958900

Bolt, .50-13 x 1.25 Hex 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 06307300

Washer, Lock .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

9

Gravely 06441000

Washer, Flat .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

10

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

11

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$6.99

$

In Stock, only 3 left!

0

12

Gravely 03987453

Weldment, Strut Front FXWLK w/Gravely Paint

$

$

Not available

13

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

14

Gravely 06535800

Locknut, .38-16 Nyloc
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 56155053

Discharge Shield Assembly

$199.99

$

In Stock, only 1 left!

0

17

Gravely 00999538

Trim, 1/4" Trim-LOK

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 00104024

Rod, Threaded Adjustment

$24.99

$

Usually ships in 4-12 days

0

19

Gravely 06534900

Nut, .375-16 Spring Lock Flanged
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00110580

Spring, Ext .875 x .125 x 4.25

$17.99

$

In Stock, only 1 left!

0

21

Gravely TCU18742

Spacer

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 03984702

Bushing, .688 x 1.13 x 1.89

$

$

Not available

23

Gravely 03985751

Strap, Idler 52 FXWLK

$

$

Not available

24

Gravely D28050

Pulley, Flat 5.00 x .375 w/Bearing
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

25

Gravely 03846235

Bushing, .688 x 1.13 x .55

$

$

Not available

26

Gravely 00140280

Pulley, Flat 6.00 x .635 w/Bearing

$68.99

$

In Stock, only 4 left!

0

27

Gravely 05983100

Bolt, .62-11 x 4.50 Hex Grade 5

$6.99

$

In Stock, only 4 left!

0

28

Gravely 07200530

Belt, HB 124.0 Elbow AMD

$85.99

$

Usually ships in 4-12 days

0

29

Gravely 05237806

Decal, Pro-Walk Commercial 52 FXH

$

$

Not available

30

Gravely 03820400

Knob, .375 x 1.25-4 Prong

$10.99

$

Usually ships in 4-12 days

0

31

Gravely 03988053

Weldment, 52" Belt Shield Gravely

$

$

Not available

32

Gravely 05969300

Bolt, Hex .62-11 x 2.50 Grade 5

$4.99

$

In Stock, only 2 left!

0

33

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$17.99

$

In Stock, only 2 left!

0

34

Gravely 03986951

Weldment, Idler Arm

$

$

Not available

35

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 03399703

Washer, .75 x 1.313 x .113
(Superseded to 06401037)

$

$

Not available

37

Gravely 03399702

Pulley, Spline Spindle Offset

$75.99

$

In Stock, only 1 left!

0

38

Gravely 06540700

Nut, Lock, Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

39

Gravely 05901321

Bolt, .625-11 x 1.50 Hex Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 03984701

Assembly, Deck 52 Gravely w/Decals

$

$

Not available

41

Gravely 00200262

Assembly, Spindle Housing

$262.99

$

In Stock, only 2 left!

0

42

Gravely D18055

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

43

Gravely GDU10230

Blade, 16.500 Lo-Lift

$28.99

$

In Stock, Qty 17

0

44

Gravely 05968100

Bolt, .62-11 x 2.00 Hex 8

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 06212000

Bolt, .38-16 x 1.00 Round Head Square Neck Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06200125

Bolt, .38-16 x 3.50 Round Head Square Neck Grade 5
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

47

Gravely 06200126

Bolt, .38-16 x 4.00 Round Head Square Neck Grade 5
(Superseded to 06200239)

$6.99

$

In Stock, only 1 left!

0

48

Gravely 06200004

Bolt, .38-16 x .75 Round Head Square Neck Grade 5
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

49

Gravely 06223100

Bolt, .50-13 x 1.50 Round Head Square Neck Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0
