988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000400) Traction Control Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

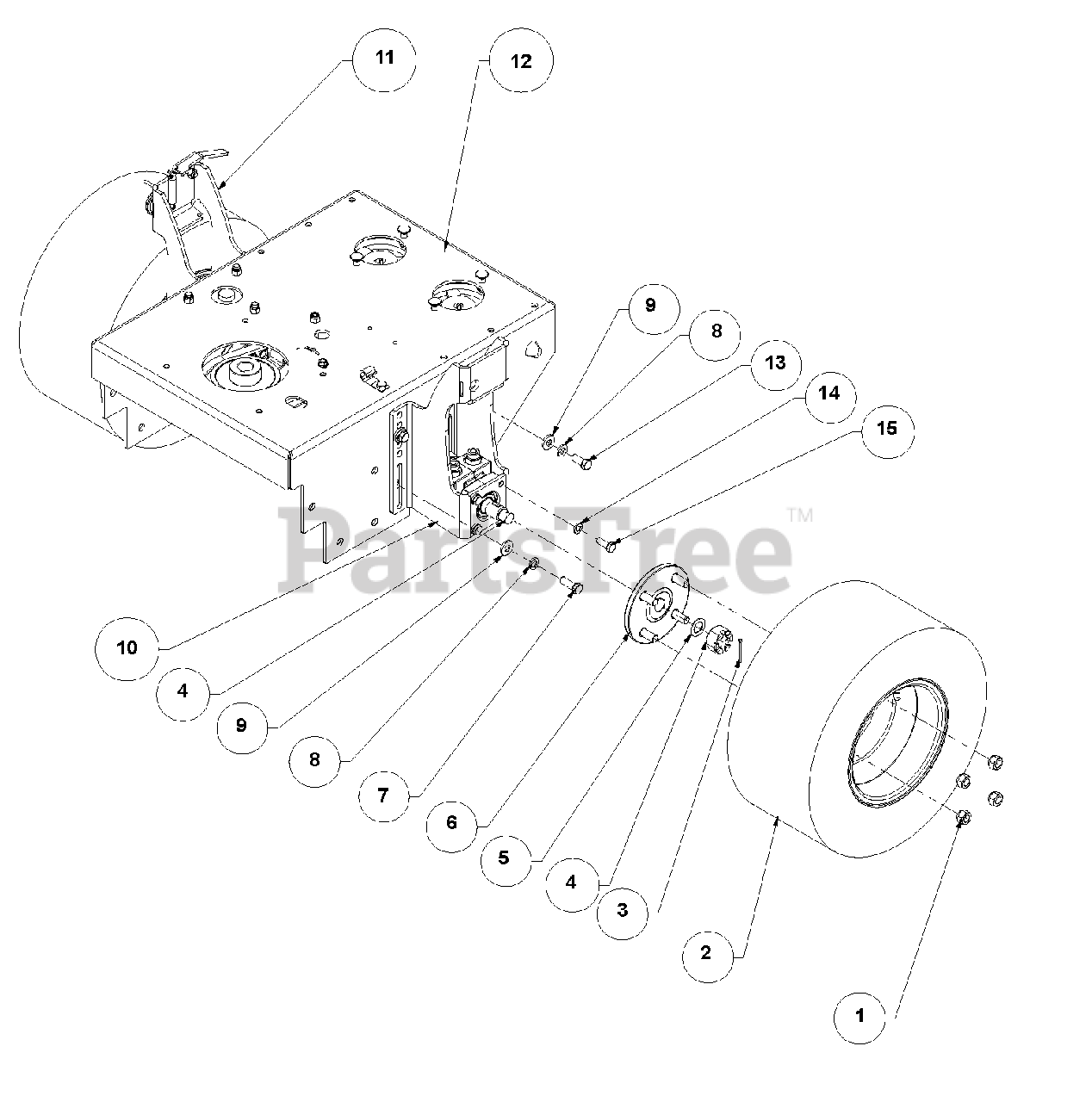

Traction Control Parts Diagram

  • Title

1

Gravely 00960526

Nut, .50-20 Lug
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 00200531

Assembly, Wheel and Tire-16 x 6.5-8

$114.99

$

Usually ships in 4-12 days

0

3

Gravely 00962019

Pin, Cotter .125 x 1.50 EXTP
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely D18311

Motor, Hydraulic Wheel

$840.99

$

Usually ships in 4-12 days

0

5

Gravely 00150052

Bushing, Machine .750 x 1.25 x .048

$

$

Not available

6

Gravely 00203842

Assembly, Wheel Hub

$

$

Not available

7

Gravely 00960080

Bolt, .4375-14 x 1.25 Hex 5
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 11

0

9

Gravely 00960712

Washer, .468 x 1.00 x .125 Flat
(Superseded to 06400914)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 03780353

Bracket, Left Hand Combo WD Gravely (142)

Note: (142)

$

$

Not available

Gravely 03763653

Bracket, Left Hand COMB Gravely (140, 141)

Note: (140, 141)

$

$

Not available

11

Gravely 03780553

Bracket, Right Hand Combo WD Gravely (142)

Note: (142)

$

$

Not available

Gravely 03763753

Bracket, Right Hand COMB Gravely (140, 141)

Note: (140, 141)

$

$

Not available

12

Gravely 03754953

Weldment, Engine Plate TDF Gravely

$

$

Not available

13

Gravely 00960079

Bolt, .4375-14 x 1.00 Hex 5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 00960602

Washer, .375 Medium Spring Lock

$

$

Not available

15

Gravely D14280

Bolt, .38-16 x 1 Grade 8 Black

$

$

Not available
