988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000400) Fuel Tank Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

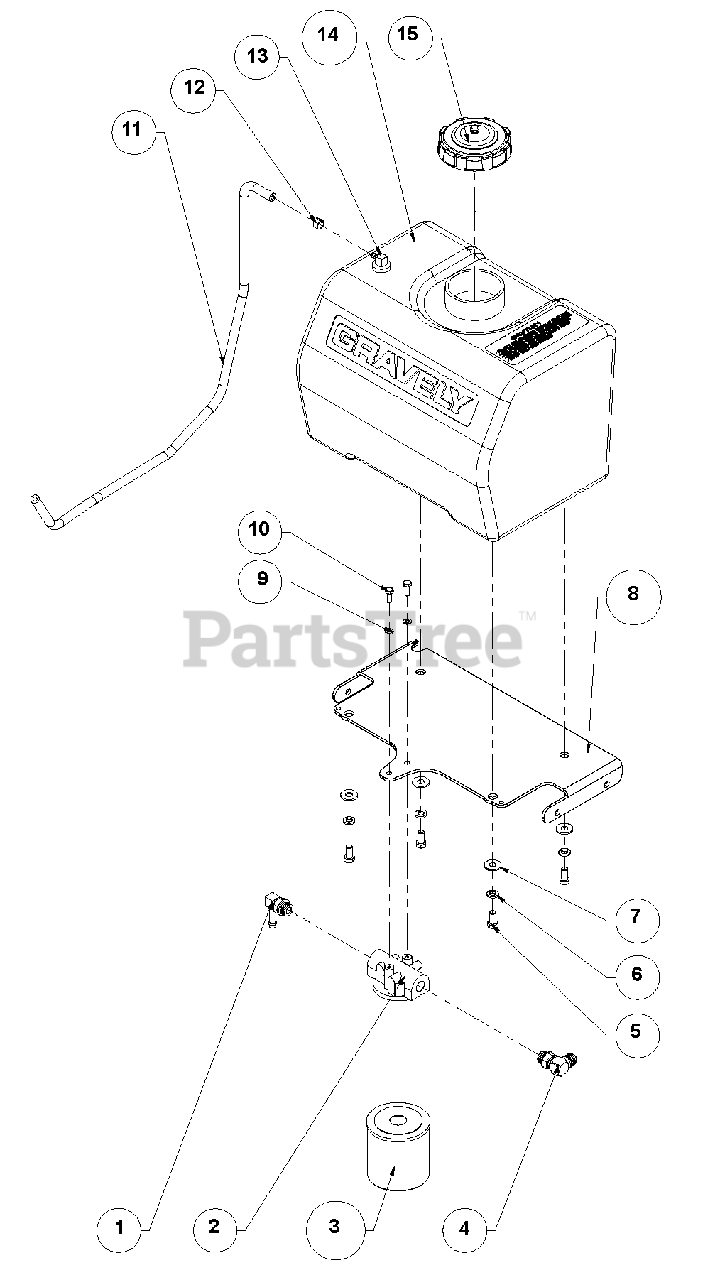

Fuel Tank Assembly Parts Diagram

  • Title

1

Gravely 00200464

Fitting, 90 BRB-OR

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 00200463

Head, Oil Filter

$34.99

$

Usually ships in 4-12 days

0

3

Gravely GDA10137

Filter, Oil

$22.99

$

In Stock, only 3 left!

0

4

Gravely 00230668

Fitting, 90 .75 MOR x .75 MJIC
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 00960045

Bolt, .38-16 x .750 Hex 5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00960602

Washer, .375 Medium Spring Lock

$

$

Not available

7

Gravely 00960702

Washer, .375 Regular Flat
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00203805

Bracket, Tank Support

$

$

Not available

9

Gravely AA960600

Washer, .250 Medium Spring Lock

$

$

Not available

10

Gravely 00960001

Bolt, 1/4-20 x .750 Hex 5

$

$

Not available

11

Gravely 00192126

Hose, Fuel .25 x 30.00

$

$

Not available

12

Gravely 00130924

Clamp, Hose- .50 Spring
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

14

Gravely 04914000

Tank, Fuel

$

$

Not available

15

Gravely 00181251

Cap, Fuel

$23.99

$

In Stock, only 1 left!

0
