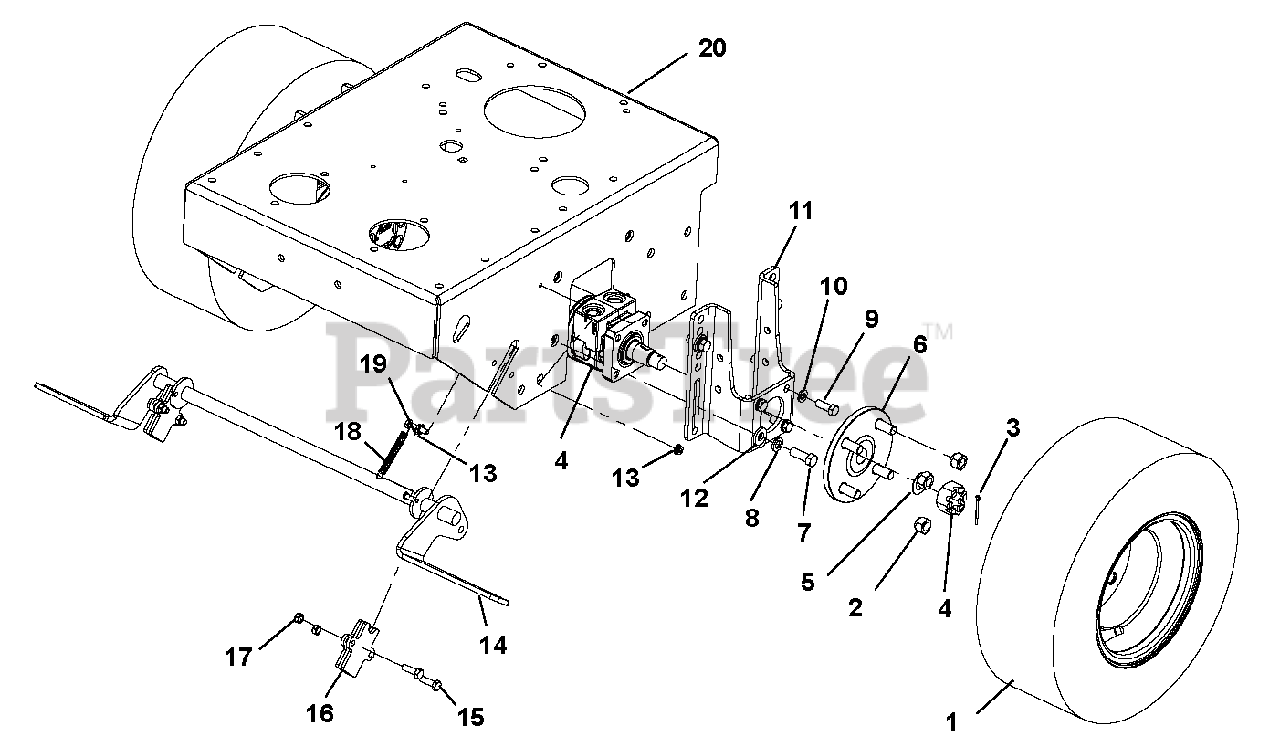

988140 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000401 & Above) Traction Control Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Traction Control Parts Diagram

  • Title

1

Gravely 00200531

Assembly, Wheel and Tire- 16 x 6.5-8

$114.99

$

Usually ships in 4-12 days

0

2

Gravely 00960526

Nut, .50-20 Lug
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00962019

Pin, Cotter .125 x 1.50 ExTP
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely D18311

Motor, Hydraulic Wheel

$840.99

$

Usually ships in 4-12 days

0

5

Gravely 00150052

Bushing, Machine .750 x 1.25 x .048

$

$

Not available

6

Gravely 00203842

Assembly, Wheel Hub

$

$

Not available

7

Gravely 059638005

Bolt, .44-14 x 1.25 Hex Grade 5

$

$

Not available

8

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 11

0

9

Gravely D14280

Bolt, .38-16 x 1 Grade 8 Black

$

$

Not available

10

Gravely 00960602

Washer, .375 Medium Spring Lock

$

$

Not available

11

Gravely 00203937

Bracket, Motor Mount (988140)

Note: (988140)

$

$

Not available

Gravely 03396853

Bracket, Motor Mount (988141, 142)

Note: (988141, 142)

$

$

Not available

12

Gravely 00960712

Washer, .468 x 1.00 x .125 Flat
(Superseded to 06400914)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00964040

Locknut, .25-25 WHIZ

$

$

Not available

14

Gravely 03908351

Weldment, Brake System (988140)

Note: (988140)

$78.99

$

Usually ships in 4-12 days

0

Gravely 03990751

Weldment, Brake System (988141, 142)

Note: (988141, 142)

$

$

Not available

15

Gravely 05946900

Bolt, .31-18 x 1 Hex Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03885753

Shoe, Brake System Float Walk

$

$

Not available

17

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 00135292

Spring, Ext .375 x .055 x 2.25

$20.99

$

Usually ships in 4-12 days

0

19

Gravely 05947400

Bolt, .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

20

Gravely 04083453

Weldment, 18" Engine Bed FXFL

$210.99

$

Usually ships in 4-12 days

0
