988140 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000401 & Above) 36-inch Deck Assembly Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

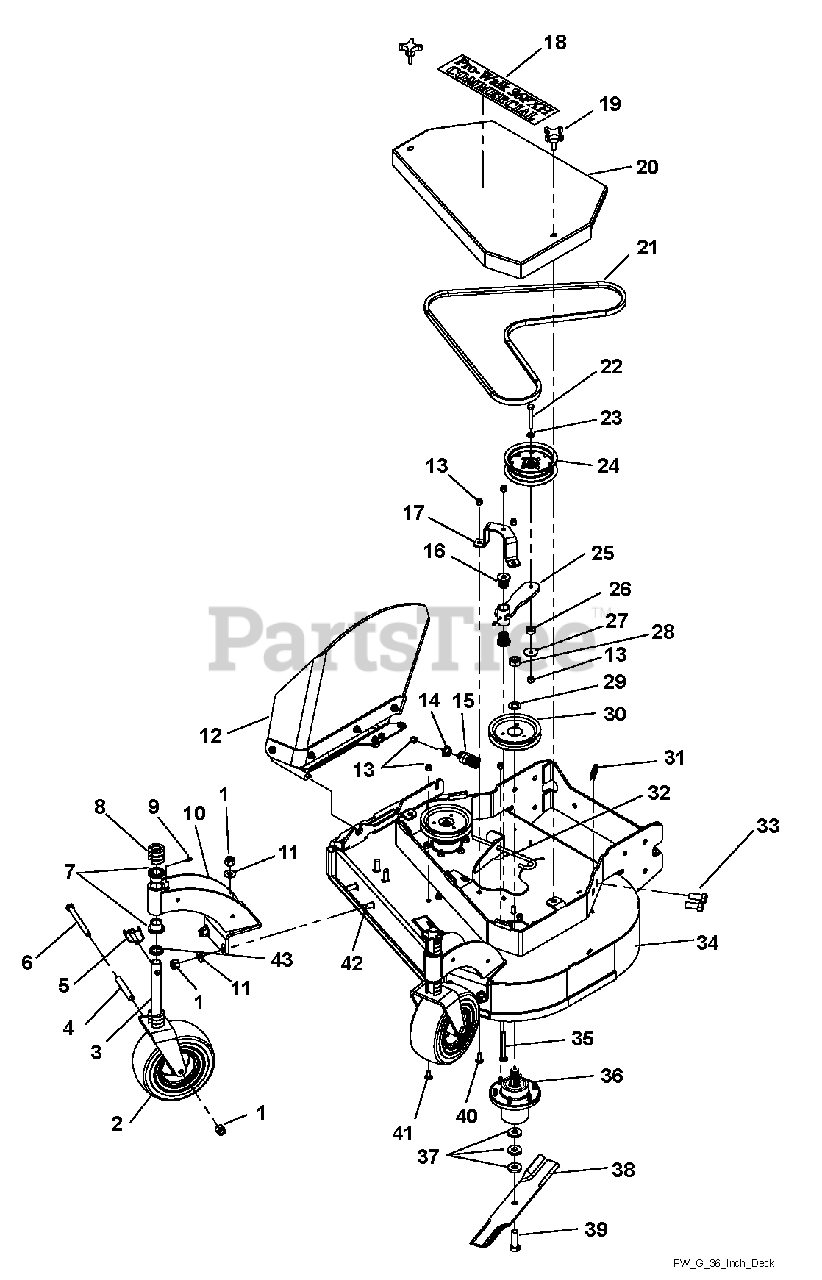

36-inch Deck Assembly Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 1 left!

0

3

Gravely 00203933

Weldment, Caster Yoke w/Gravely Paint

$204.99

$

Usually ships in 4-12 days

0

4

Gravely 05964100

Bolt, .50-13 x 5.50 Hex Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

6

Gravely 05964100

Bolt, 50-13 x 5.50 Hex Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$6.99

$

In Stock, only 3 left!

0

8

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 6

0

9

Gravely 00959995

Fitting, .25-28 Straight Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 03987453

Weldment, Strut Front FXWLK w/Gravely Paint

$

$

Not available

11

Gravely 00960703

Washer, .438 Regular Flat

$

$

Not available

12

Gravely 56155053

Discharge Shield Assembly

$199.99

$

In Stock, only 1 left!

0

13

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

14

Gravely D33062

Keeper, Spring

$38.99

$

Usually ships in 4-12 days

0

15

Gravely D38128

Spring, COM 1.22 x .162 x 2.50

$

$

Not available

16

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$17.99

$

In Stock, only 2 left!

0

17

Gravely 00165662

Brace, Tensioner Arm

$

$

Not available

18

Gravely 05237804

Decal, Pro-Walk Commercial 36 FXH

$

$

Not available

19

Gravely 03820400

Knob, .375 x 1.25-4 Prong

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 03997353

Weldment, Belt Shield 36"

$

$

Not available

21

Gravely D18087

Belt, HB 77.5 Elbow AMD OHR

$76.99

$

Usually ships in 4-12 days

0

22

Gravely 05961400

Bolt, .38-16 x 2.75 Hex Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely D18032

Pulley, Flat 5.0 x .38 w/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 1 left!

0

25

Gravely 03996351

Weldment, Idler 36 FXWLK

$

$

Not available

26

Gravely D13023

Bushing, .380 x 1.00 x .410

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 00964502

Washer, Flat .375 x 1.50 x .063
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 03399703

Washer, .75 x 1.313 x .113
(Superseded to 06401037)

$

$

Not available

30

Gravely 03399702

Pulley, Spline Spindle Offset

$75.99

$

In Stock, only 1 left!

0

31

Gravely 00999538

Trim, 1/4" Trim-LOK

$5.99

$

Usually ships in 4-12 days

0

32

Gravely D23040

J-Bolt, .375-16 x 7.88

$11.99

$

Usually ships in 4-12 days

0

33

Gravely 05901321

Bolt, Hex .625-11 x 1.50 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 03984301

Assembly, Deck 36" Gravely w/Decal

$

$

Not available

35

Gravely 03H1836

Bolt, .375-16 x 3.50 Round Head Square Neck Grade 5

$

$

Not available

36

Gravely 00200262

Assembly, Spindle Housing

$262.99

$

In Stock, only 2 left!

0

37

Gravely D18055

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

38

Gravely GDU10231

Blade, 18.000 x .80 Lift

$30.99

$

In Stock, Qty 20+

0

39

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

40

Gravely 00963019

Bolt, .375-16 x 1.00 Round Head Square Neck Grade 5

$

$

Not available

41

Gravely 06223900

Bolt, .38-16 x .75 Round Head Square Neck Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

42

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

43

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0
