988130 (GR 1336 FX) - Gravely Pro-Gear 36" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000101 & Above) Engine, Fuel And Exhaust System Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

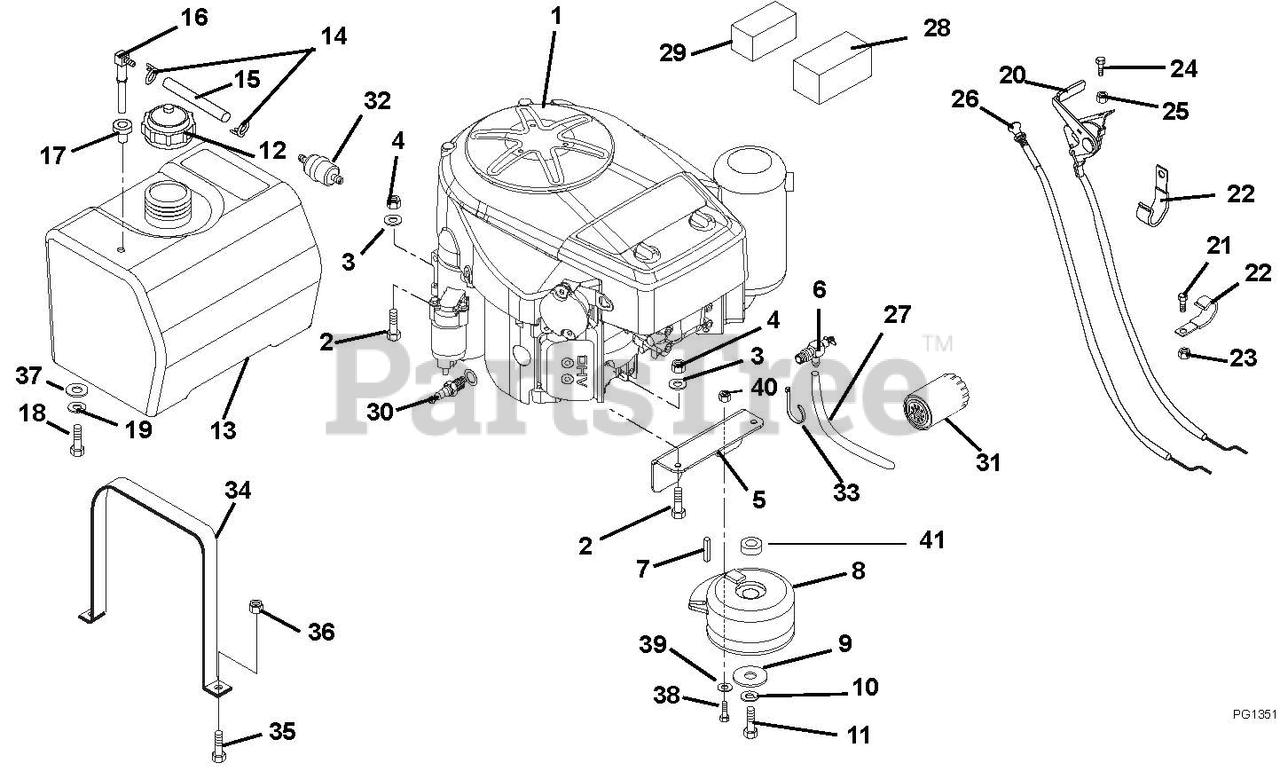

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266800

Engine, 15 HP Kawasaki FH430V - AS02

Note: (988102)

$

$

Not available

1

Gravely 08266700

Engine, 13 HP Kawasaki FH381V-AS02

Note: (988100, 110, 114, 118, 121, 122)

$

$

Not available

1

Gravely 08200405

Engine, 13 HP Kawasaki CA FH381V-AS02

Note: (988130, 133, 134)

$

$

Not available

2

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

3

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

5

Gravely 03292451

Bracket, Clutch

$31.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

Valve, Oil Drain

$52.99

$

In Stock, only 1 left!

0

7

Gravely 06603400

Key, Square .25 x 1.25 x 25 SAE 8630 or SAE 1035

Note: (988100, 102, 110, 114, 118, 130, 133)

$3.99

$

In Stock, Qty 11

0

7

Gravely 06611200

Key, Square .25 x .25 x 1.00 RC 40-50

Note: (988121, 122, 134)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 00191700

Clutch, Electric PTO

$374.99

$

In Stock, only 2 left!

0

9

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

10

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

11

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

Note: (988100, 102, 110, 114, 118, 130, 133)

$6.99

$

In Stock, only 1 left!

0

11

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

Note: (988121, 122, 134)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

Note: (988100, 102, 110, 114, 118, 130, 133)

$28.99

$

In Stock, Qty 16

0

12

Gravely 07533400

Cap, Fuel

Note: (988121, 122, 134)

$22.99

$

In Stock, only 1 left!

0

13

Gravely 04914000

Tank, Fuel

Note: (988100, 102, 110, 114, 118, 130, 133)

$

$

Not available

13

Gravely 04949100

Tank, Fuel

Note: (988100, 102, 110, 114, 118, 130, 133)

$174.99

$

Usually ships in 4-12 days

0

14

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 15

0

15

Gravely 00924300

Gas Line, Bulk .25 I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

17

Gravely 07511400

Bushing

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 00387300

Grommet

Note: (Orange in color. Does not replace or interchange with black colored bushing.)

$9.49

$

In Stock, Qty 20+

0

18

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

Note: (988100, 102, 110, 114, 118, 130, 133)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

Note: (988100, 102, 110, 114, 118, 130, 133)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06949800

Cable, Throttle with Liner

Note: (988100, 102, 110, 121, 130, 134)

$50.99

$

Usually ships in 4-12 days

0

20

Gravely 06949100

Cable, Throttle with Liner

Note: (988114, 118, 122, 133)

$70.99

$

In Stock, only 4 left!

0

21

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06924800

Control, Choke

$39.99

$

In Stock, only 1 left!

0

27

Gravely 01590900

Tube, Oil Drain

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 21538000

Filter, Air Paper

$18.99

$

In Stock, Qty 6

0

29

Gravely 21538100

Filter, Air Foam

$7.49

$

Usually ships in 4-12 days

0

30

Gravely 21533600

Spark Plug

$4.99

$

In Stock, Qty 20+

0

31

Gravely 21535800

Filter, Oil
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

32

Gravely 21538400

Fuel Filter, Kawasaki
(Superseded to 21573800)

$

$

Not available

33

Gravely 07517300

Cable Tie

$

$

Not available

34

Gravely 09112100

Tank Strap

Note: (988121, 122, 134)

$

$

Not available

35

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

Note: (988121, 122, 134)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06531000

Nut, Locking Nylon .25-20
(Superseded to 06500832)

Note: (988121, 122, 134)

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 06436200

Washer, Flat Steel .409 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 05980900

Bolt, Hex .312-18 x 2.00 FTH Grade 5
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

39

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06536100

Nut, Jam .31-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 00182500

Bushing, Spacer 1.0 x 1.25 x .25

$5.99

$

Usually ships in 4-12 days

0
