988123 (HE 1748 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower Drive, 17hp Kawasaki (SN: 006000 - 006999) Ground Drive Parts Diagram

Pro-Hydro 48" Walk-Behind Mower Drive, 17hp Kawasaki

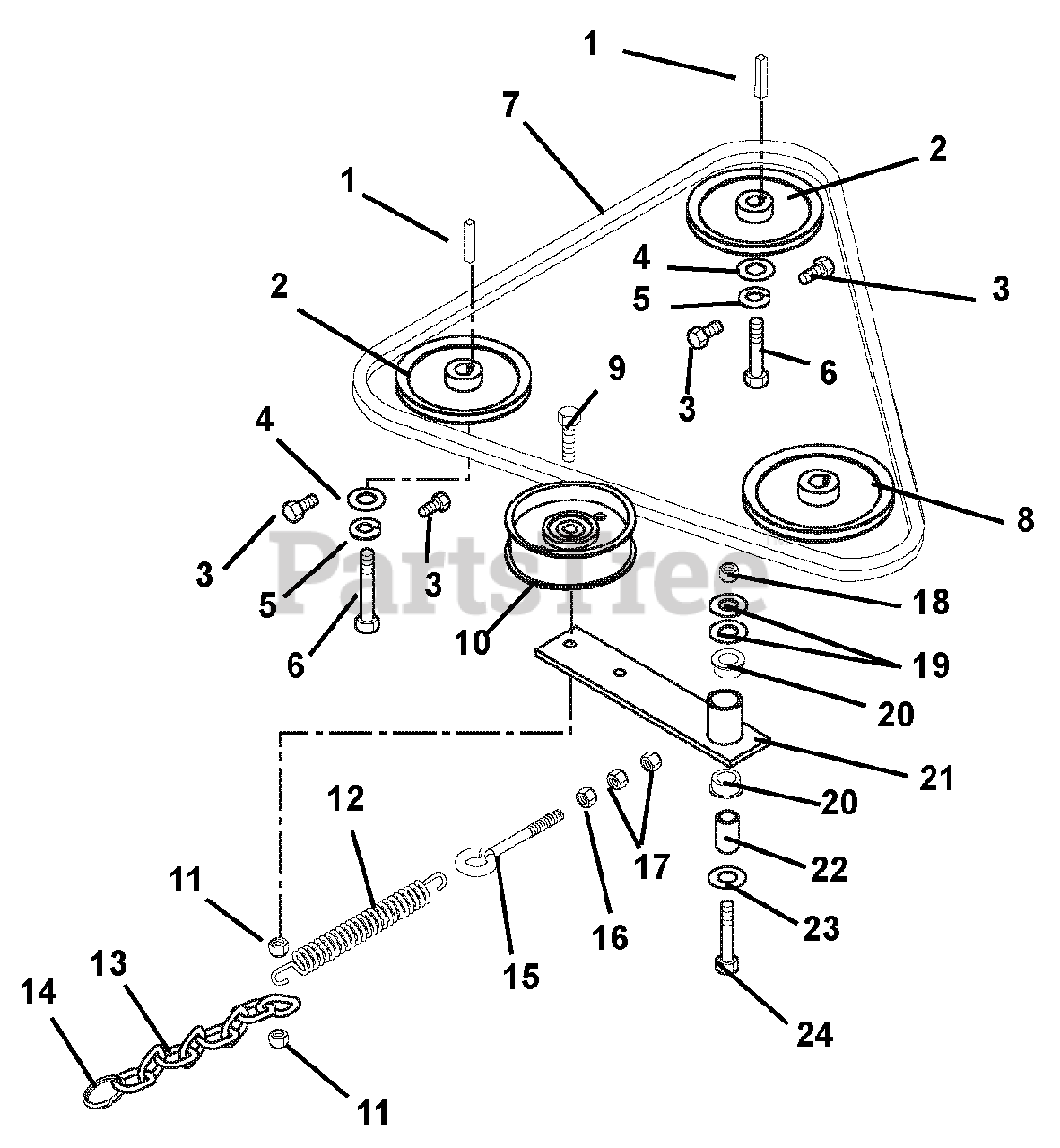

Ground Drive Parts Diagram

  • Title
1

Gravely 06607500

Key-Straight 5MM x 25MM x 5MM

$3.99

$

In Stock, only 2 left!

0

2

Gravely 07318900

Sheave 4.0 x .199

$51.99

$

In Stock, only 2 left!

0

3

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06403700

Washer-Flat-Steel .281 x 1.25 x .048

$

$

Not available

5

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05969800

Bolt-Hex M6 x 1.0 x 12

$1.99

$

In Stock, Qty 14

0

7

Gravely 07239700

Belt, Hydro Ground Drive

$37.99

$

In Stock, only 1 left!

0

8

$116.99

$

Usually ships in 4-12 days

0

9

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 07320700

Idler-Pulley Flat 3.25 x .625

$34.99

$

In Stock, only 1 left!

0

11

Gravely 06537200

Nut-Locking-Jam-Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Gravely 04927200

Chain, Link

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 00564900

Ring, Split .1 x 2

$3.49

$

In Stock, only 1 left!

0

15

Gravely 07030000

Bolt-Eye .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05518400

Bushing-Flange Nylon .762 x 1.00 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

21

Gravely 08844251

Weldment, Ground Drive Idler

$58.99

$

Usually ships in 4-12 days

0

22

Gravely 08815100

Bushing, Spacer .56 x .745 x 2.04 Steel

$21.99

$

In Stock, only 1 left!

0

23

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0
