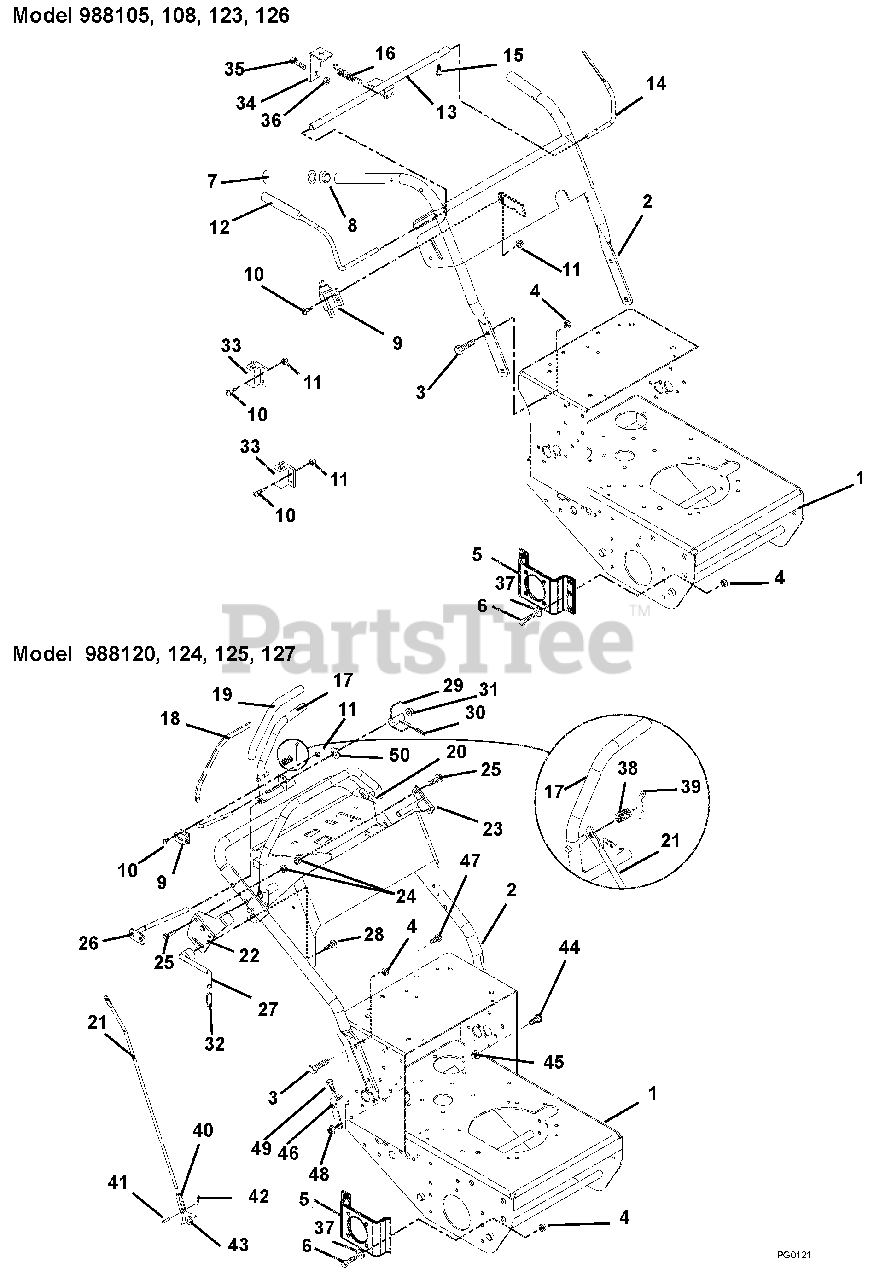

988123 (HE 1748 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower Drive, 17hp Kawasaki (SN: 006000 - 006999) Frame And Handlebars Parts Diagram

Pro-Hydro 48" Walk-Behind Mower Drive, 17hp Kawasaki

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

Kit-Frame with Decals

$

$

Not available

2

Gravely 58805600

Kit-Handlebar with Decals HR15 (105)

Note: (105)

$

$

Not available

Gravely 58805700

Kit-Handlebar with Decals HE17 (108, 123, 126)

Note: (108, 123, 126)

$

$

Not available

Gravely 58806400

Kit, Handlebar with Decals 15-Pro Steer (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

3

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 04926100

Bracket, Wheel Motor Left Hand (105, 108, 120, 124, 125)

Note: (105, 108, 120, 124, 125)

$

$

Not available

Gravely 04931300

Bracket, Wheel Motor Right Hand (105, 108, 120, 124, 125)

Note: (105, 108, 120, 124, 125)

$

$

Not available

Gravely 04929000

Bracket, Wheel Motor Left Hand (123, 126, 127)

Note: (123, 126, 127)

$

$

Not available

Gravely 04929100

Bracket, Wheel Motor Right Hand (123, 126, 127)

Note: (123, 126, 127)

$37.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04928800

Grip, Handlebar (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$9.99

$

In Stock, only 2 left!

0

8

Gravely 07533300

Caplug, Handlebar (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 08828100

Switch, Interlock (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$20.99

$

In Stock, only 1 left!

0

Gravely 03606600

Switch, Double Pole (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$17.99

$

In Stock, only 1 left!

0

10

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head (105, 108, 213, 126)
(Superseded to 05901837)

Note: (105, 108, 213, 126)

$2.49

$

In Stock, Qty 15

0

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head (120, 124, 125, 127)
(Superseded to 05901837)

Note: (120, 124, 125, 127)

$2.49

$

In Stock, Qty 15

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert (105, 108, 123, 126)
(Superseded to 06500915)

Note: (105, 108, 123, 126)

$0.99

$

In Stock, Qty 20+

0

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert (120, 124, 125, 127)
(Superseded to 06500915)

Note: (120, 124, 125, 127)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04924100

Lever, Right Hand-Operator Presence (105, 108, 123, 126)
(Superseded to 78806400)

Note: (105, 108, 123, 126)

$219.99

$

In Stock, only 1 left!

0

13

Gravely 04924000

Weldment, Pivot Tube (105, 108, 123, 126)
(Superseded to 78806400)

Note: (105, 108, 123, 126)

$219.99

$

In Stock, only 1 left!

0

14

Gravely 04924200

Lever, Left Hand-Operator Presence (105, 108, 123, 126)
(Superseded to 78806400)

Note: (105, 108, 123, 126)

$219.99

$

In Stock, only 1 left!

0

15

Gravely 07415600

Screw-Tapping 8-32 x .50 Hex Washer Head (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08337000

Spring-Tension .047 x .438 x 1.45 (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$5.99

$

In Stock, Qty 16

0

17

Gravely 04942851

Weldment, Lever-Right Hand Speed Control (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

Gravely 04942951

Weldment-Lever-Left Hand Speed Control (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

18

Gravely 04944100

Lever- Operator Presence (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$47.99

$

Usually ships in 4-12 days

0

19

Gravely 07534500

Grip- Handlebar (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$27.99

$

In Stock, only 2 left!

0

20

Gravely 04944951

Weldment- Speed Control Stop (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$256.99

$

Usually ships in 4-12 days

0

21

Gravely 04942100

Rod, Steering (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$43.99

$

In Stock, only 2 left!

0

22

Gravely 04944800

Weldment, Control Stop Limiter-Right Hand (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

23

Gravely 04938300

Weldment, Control Stop Limiter-Left Hand (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

24

Gravely 06543100

Nut-Locking-Top-Flange .31-18 (120, 124, 125, 127)
(Superseded to 06500904)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5 (120, 124, 125, 127)
(Superseded to 05901804)

Note: (120, 124, 125, 127)

$2.99

$

In Stock, Qty 8

0

26

Gravely 04943200

Weldment, Speed Control Pivot- Right Hand (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

Gravely 04943300

Weldment, Speed Control Pivot- Left Hand (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

27

Gravely 04944700

Lever- Control Stop Lock (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$34.99

$

Usually ships in 4-12 days

0

28

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 2 (120, 124, 125, 127)
(Superseded to 06200312)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, only 4 left!

0

29

Gravely 04936900

Actuator, Switch (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$58.99

$

Usually ships in 4-12 days

0

30

Gravely 05803400

Pin-Roll .125 x .75 (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$0.99

$

In Stock, Qty 16

0

31

Gravely 06514900

Nut-Push .312 (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 07528300

Grip, Hand Clutch Lever (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 03657100

Switch- Double Pole N.O./N.O. (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$9.49

$

In Stock, only 1 left!

0

34

Gravely 04928900

Bracket, Brake Link (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$

$

Not available

35

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 (105, 108, 123, 126)
(Superseded to 05901716)

Note: (105, 108, 123, 126)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06531000

Nut, Locking Nylon .25-20 (105, 108, 123, 126)
(Superseded to 06500832)

Note: (105, 108, 123, 126)

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 (105, 108, 123, 126)
(Superseded to 06401013)

Note: (105, 108, 123, 126)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 08338800

Spring-Compression .045 x .60 x .75 (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$6.99

$

In Stock, only 2 left!

0

39

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18 (120, 124, 125, 127)
(Superseded to 06700222)

Note: (120, 124, 125, 127)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 00513800

Yoke, .312-24 x 2.25 (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$29.99

$

Usually ships in 4-12 days

0

41

Gravely 06814000

Pin-Clevis .31 x .937 (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 06714800

Pin-Hair, Endries #25 (120, 124, 125, 127)
(Superseded to 06700223)

Note: (120, 124, 125, 127)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 06439100

Washer-Flat-Steel .38 x .87 x .179 (120, 124, 125, 127)
(Superseded to 06401103)

Note: (120, 124, 125, 127)

$3.49

$

In Stock, only 2 left!

0

44

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5 (120, 124, 125, 127)
(Superseded to 05901701)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06530400

Nut-Spin Lock-Flange .312-18 (120, 124, 125, 127)
(Superseded to 06500815)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 04942400

Weldment- Reverse Adjustment Bracket (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

47

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5 (120, 124, 125, 127)
(Superseded to 05901702)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 06542000

Nut-Locking-Top-Flange .38-16 (120, 124, 125, 127)
(Superseded to 06500822)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5 (120, 124, 125, 127)
(Superseded to 05901803)

Note: (120, 124, 125, 127)

$2.49

$

In Stock, Qty 11

0

50

Gravely 01320200

Washer, Wave (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$3.49

$

In Stock, Qty 7
