988121 (GR 1334 FX) - Gravely Pro-Gear 34" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 005000 - 005999) 34" Frame, Discharge Chute And Baffles Parts Diagram

Pro-Gear 34" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

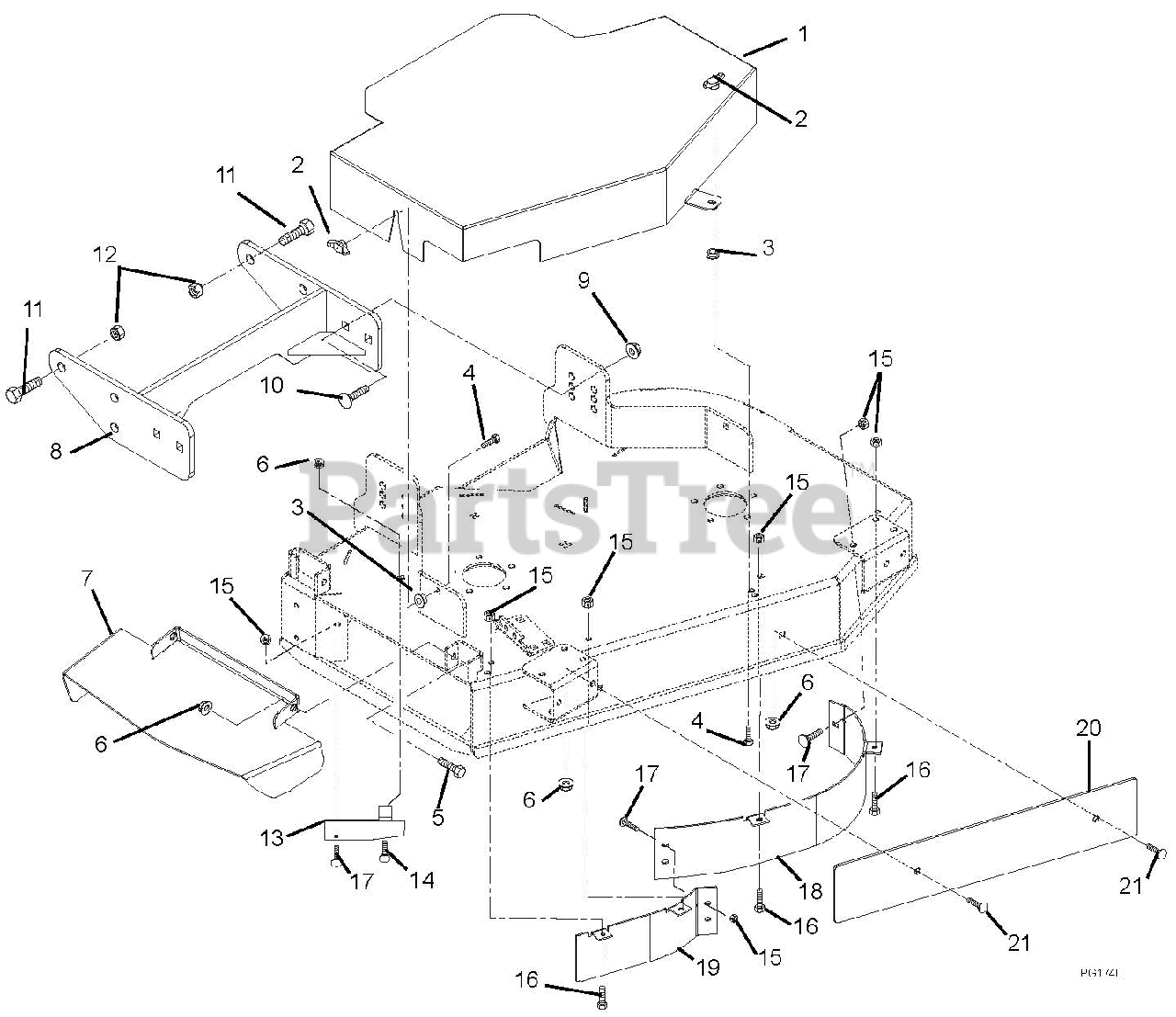

34" Frame, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 04947753

Weldment, Belt Cover 34"

$

$

Not available

2

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06221800

Bolt, Round Head Square Neck .31-18 x 1.0
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 07056500

Bolt, Shoulder .38-16 x .50
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

Note: (988121)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

Note: (988122)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09299753

Weldment, 34" Discharge Chute

$136.99

$

Usually ships in 4-12 days

0

8

Gravely 04948653

Weldment, Mower Mounting

$

$

Not available

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06224700

Bolt, Round Head Square Neck .50-13 x 1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 05968700

Bolt, Hex .62-11 x 1.50

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06540700

Nut, Locking Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

13

Gravely 00174251

Baffle, Deflector

$32.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 09297051

Baffle, 34" Front Left Hand

$94.99

$

Usually ships in 4-12 days

0

19

Gravely 09297151

Baffle, 34" Front Right Hand

$71.99

$

Usually ships in 4-12 days

0

20

Gravely 00430151

Weight, Pro Steer

Note: (988122)

$

$

Not available

21

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

Note: (988122)

$2.49

$

In Stock, only 3 left!

0
