988121 (GR 1334 FX) - Gravely Pro-Gear 34" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000101 - 004999) 34" Belts, Idlers And Blades Parts Diagram

Pro-Gear 34" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

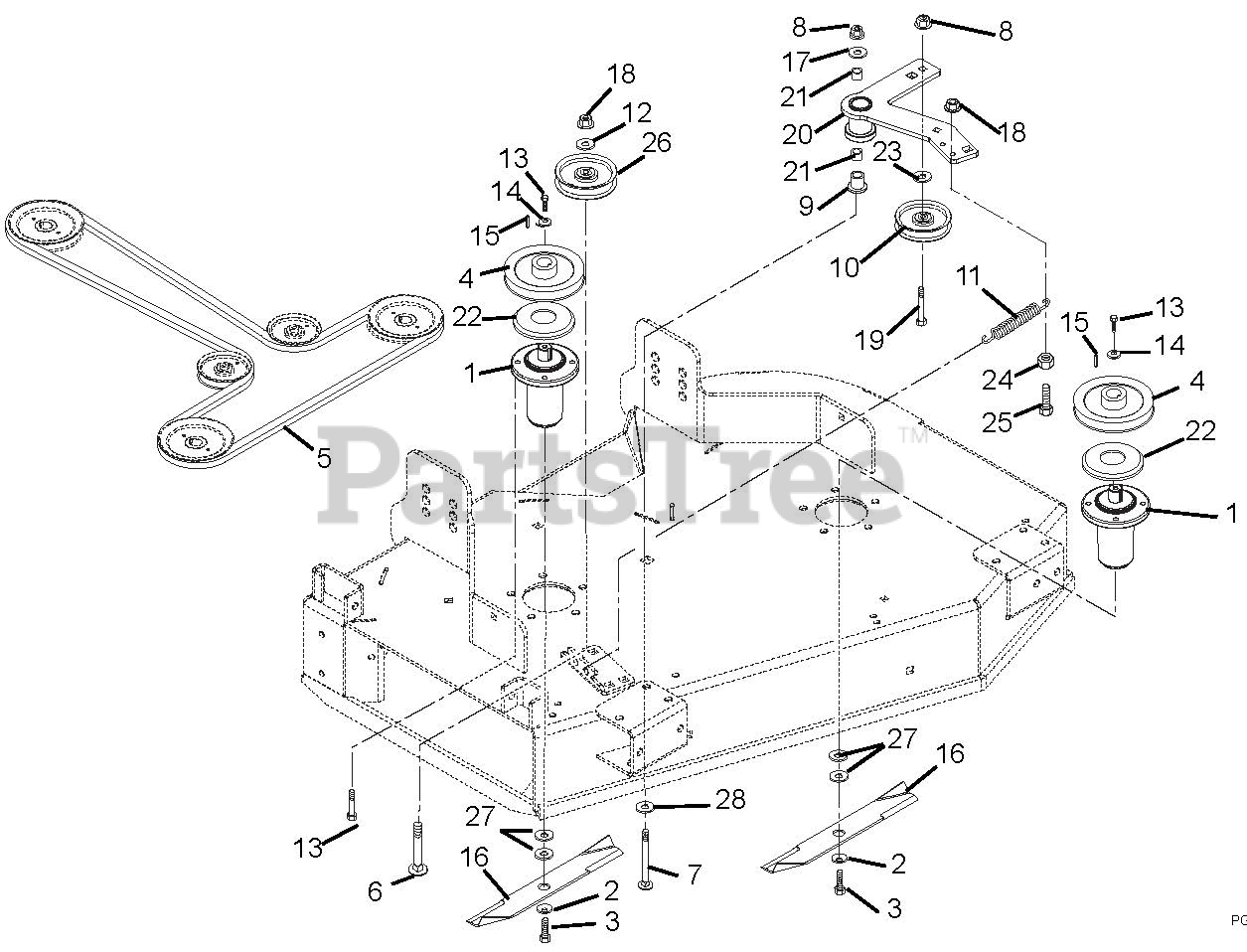

34" Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 69219600

Assembly, Spindle

$

$

Not available

2

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 18

0

3

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 07300011

Sheave, 5.00 Spindle, 1.00 I.D.
(Superseded to 07331167)

$76.99

$

In Stock, only 1 left!

0

5

Gravely 07200017

V-Belt, B-RMA 95" EFFLG x .650W

$97.99

$

Usually ships in 4-12 days

0

6

Gravely 06225400

Bolt-Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06200003

Bolt-Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200340)

$5.99

$

In Stock, only 4 left!

0

8

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

10

Gravely 07316700

Idler-Flat 6.75 x .510, 2.00 W

$63.99

$

In Stock, only 2 left!

0

11

Gravely 08300008

Spring, Extension
(Superseded to 08300505)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 06425500

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 05900013

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06400006

Washer-Flat-Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 17

0

16

Gravely 09082400

Blade, Mower Hi -Lift

$30.99

$

In Stock, Qty 20+

0

17

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05959700

Bolt, Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

20

Gravely 00390651

Weldment, Idler Pivot Arm
(Superseded to 00390653)

$

$

Not available

21

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

22

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

23

Gravely 09036100

Spacer, .516 x .875 x .300

$36.99

$

Usually ships in 4-12 days

0

24

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07327800

Idler-Flat 4.00 x .38

$87.99

$

In Stock, only 2 left!

0

27

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

28

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0
