988119 (GR 1544 FXP) - Gravely Pro-Gear 44" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki (SN: 003000 & Above) Electrical System - Recoil Start - Pro Steer Parts Diagram

Pro-Gear 44" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki

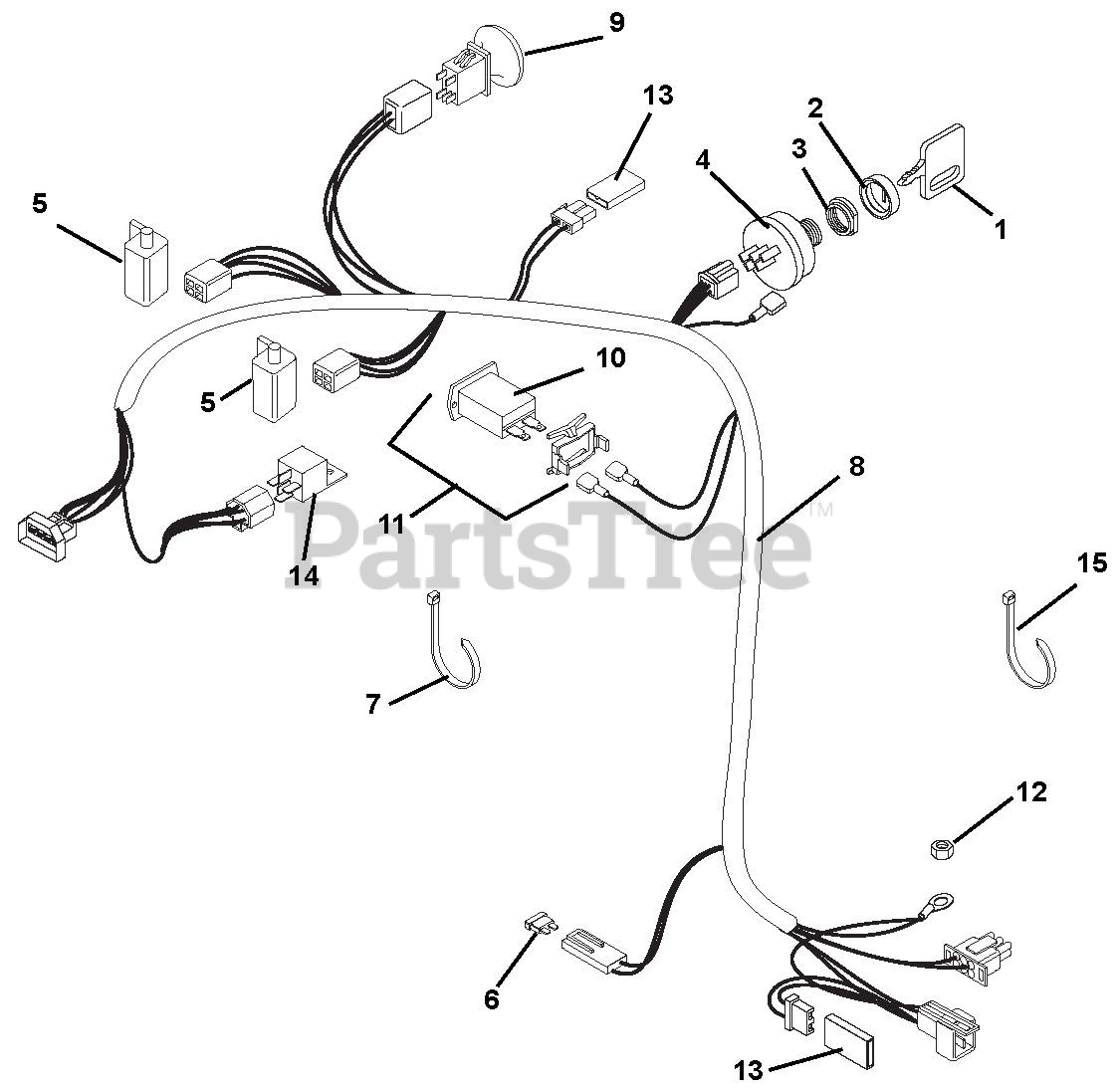

Electrical System - Recoil Start - Pro Steer Parts Diagram

  • Title

1

Gravely 02460700

Key- with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 07517700

Cap, Ignition Switch

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06517400

Nut, Panel .562-24

$20.99

$

In Stock, only 1 left!

0

4

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

5

Gravely 03657100

Switch- Single Pole N.O.

$9.49

$

In Stock, only 2 left!

0

6

Gravely 09351100

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 07517300

Tie Wrap-Black

$

$

Not available

8

Gravely 04940900

Harness, Wire Gear Recoil-Pro Steer
(Superseded to 03287900)

$180.99

$

Usually ships in 4-12 days

0

9

Gravely 04940800

Switch, Clutch

$

$

Not available

10

Gravely 04935700

Hour Meter-Quartz
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

11

Gravely 78804200

Kit, Hour Meter

Note: (Optional)

$

$

Not available

12

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

14

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

15

Gravely 04003800

Tie Wrap

$

$

Not available
