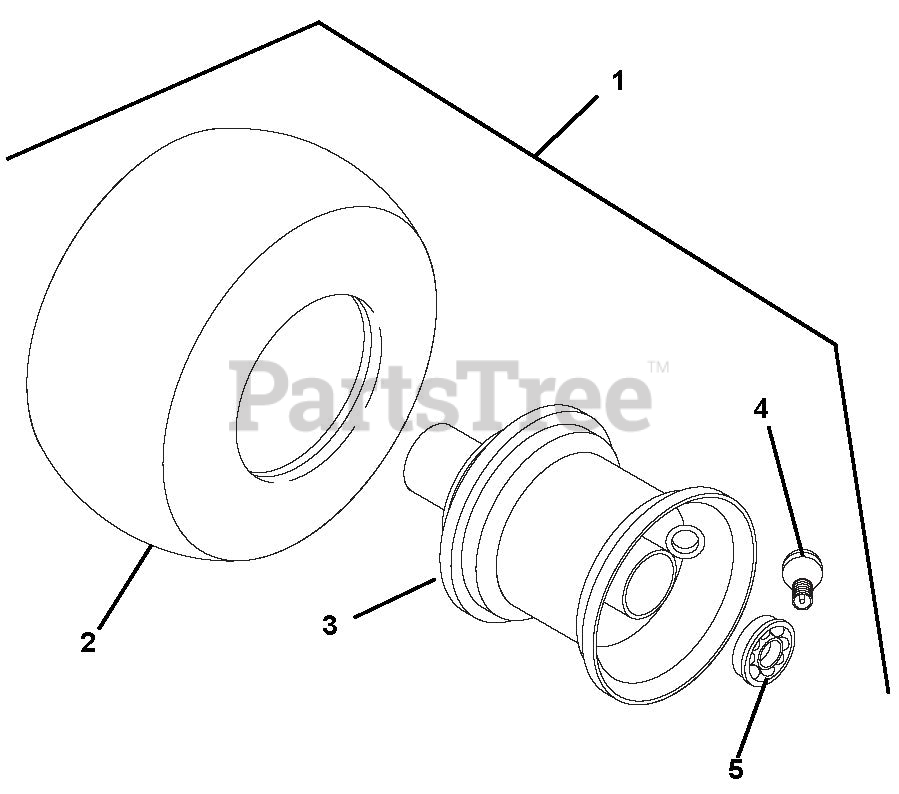

988115 (GR 1548 FXP) - Gravely Pro-Gear 48" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki (SN: 003000 & Above) Wheels Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Pro-Steer, 15hp Kawasaki

Wheels Parts Diagram

  • Title

1

Gravely 07157300

Assembly, Wheel and Tire 16 x 6.50
(Superseded to 07100240)

Note: (Includes 2 - 5) (100, 102, 114, 115)

$

$

Not available

2

Gravely 07157700

Tire, 16 x 650-8 4Ply

Note: (988100, 102, 114, 115)

$

$

Not available

3

Gravely 07157600

Rim Assembly
(Superseded to 07100305)

Note: (988100, 102, 114, 115)

$

$

Not available

4

Gravely 07520000

Valve Stem Assembly

$2.49

$

In Stock, Qty 5

0

5

Gravely 05436500

Bearing, 1" Sealed

$30.99

$

In Stock, only 2 left!

0
