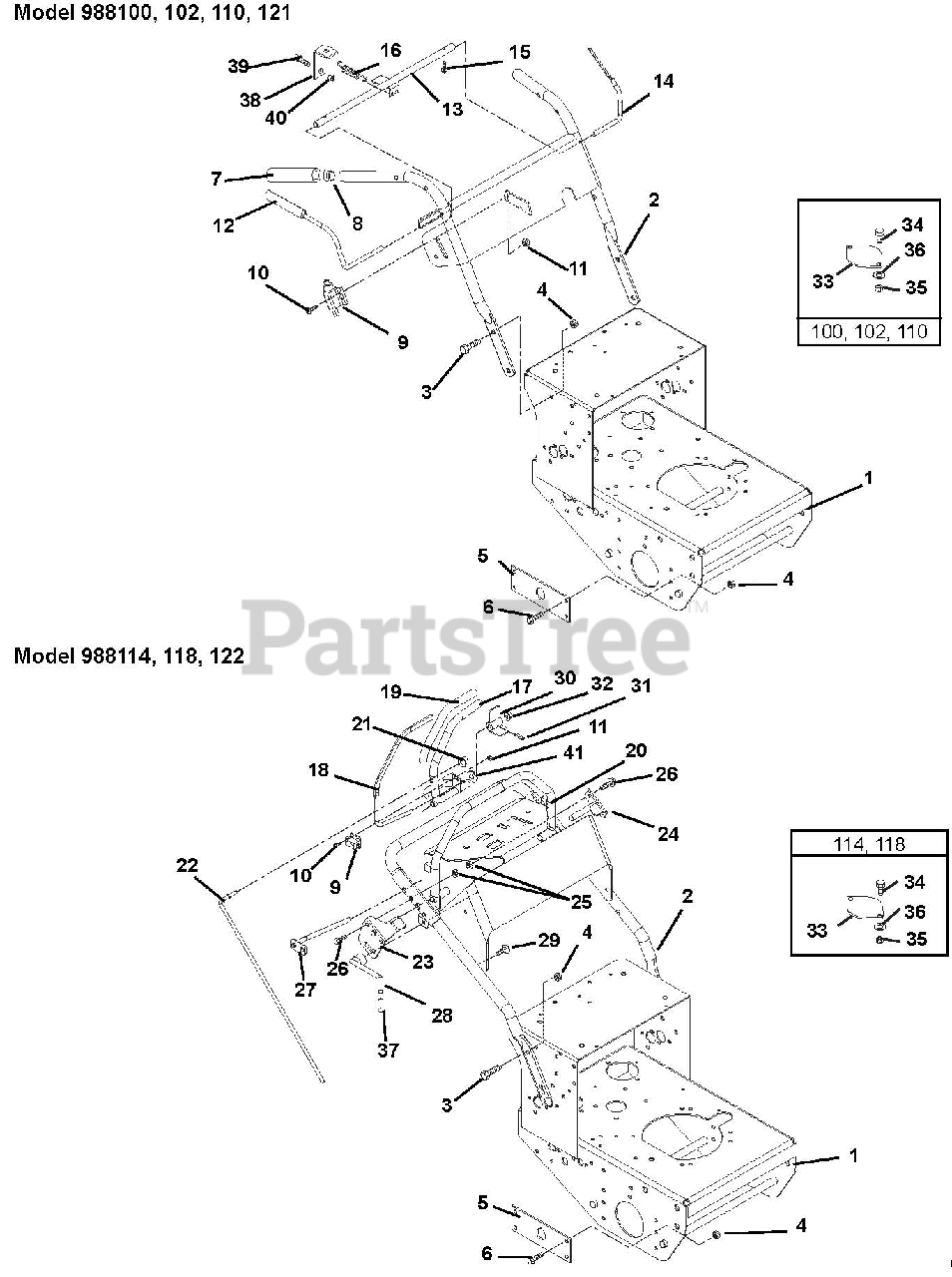

988110 (GR 1332 FX) - Gravely Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 005100 - 005999) Frame And Handlebars Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

Kit-Frame with Decals

Note: (988100, 102, 110, 114, 118)

$

$

Not available

1

Gravely 58807500

Kit-Frame with Decals - 1334

Note: (988121, 122)

$215.99

$

Usually ships in 4-12 days

0

2

Gravely 58805300

Kit-Handlebar with Decals GR13

Note: (988100, 110)

$

$

Not available

2

Gravely 58805400

Kit-Handlebar with Decals GR15

Note: (988102)

$

$

Not available

2

Gravely 58807000

Kit, Handlebar with Decals GR13/15-Pro Steer

Note: (988114, 122)

$

$

Not available

2

Gravely 58807600

Kit, Handlebar with Decals - 1334

Note: (988121)

$

$

Not available

3

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 04922300

Plate, Support

$

$

Not available

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04928800

Grip, Handlebar

Note: (988100, 102, 110, 121)

$9.99

$

In Stock, only 2 left!

0

8

Gravely 07533300

Caplug, Handlebar

Note: (988100, 102, 110, 121)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 08828100

Switch, Interlock

Note: (988100, 102, 110, 121)

$20.99

$

In Stock, only 1 left!

0

9

Gravely 03657100

Switch, Interlock

Note: (988114, 122)

$9.49

$

In Stock, only 2 left!

0

10

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

Note: (988100, 102, 110, 121)

$2.49

$

In Stock, Qty 15

0

10

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

Note: (988114, 122)

$2.49

$

In Stock, Qty 15

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

Note: (988100, 102, 110, 121)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

Note: (988114, 122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04924100

Lever, Right Hand-Operator Presence
(Superseded to 78806400)

Note: (988100, 102, 110, 121)

$219.99

$

In Stock, only 1 left!

0

13

Gravely 04924000

Weldment, Pivot Tube
(Superseded to 78806400)

Note: (988100, 102, 110, 121)

$219.99

$

In Stock, only 1 left!

0

14

Gravely 04924200

Lever, Left Hand-Operator Presence
(Superseded to 78806400)

Note: (988100, 102, 110, 121)

$219.99

$

In Stock, only 1 left!

0

15

Gravely 07415600

Screw-Tapping 8-32 x .50 Hex Washer Head

Note: (988100, 102, 110, 121)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08337000

Spring-Tension .047 x .438 x 1.45

Note: (988100, 102, 110, 121)

$5.99

$

In Stock, Qty 20+

0

17

Gravely 04944351

Weldment, Lever-Right Hand Speed Control

Note: (988114, 122)

$325.99

$

Usually ships in 4-12 days

0

17

Gravely 04944451

Weldment-Lever-Left Hand Speed Control

Note: (988114, 122)

$310.99

$

Usually ships in 4-12 days

0

18

Gravely 04944100

Lever- Operator Presence

Note: (988114, 122)

$47.99

$

Usually ships in 4-12 days

0

19

Gravely 07534500

Grip- Handlebar

Note: (988114, 122)

$27.99

$

In Stock, only 2 left!

0

20

Gravely 04944951

Weldment- Speed Control Stop

Note: (988114, 122)

$256.99

$

Usually ships in 4-12 days

0

21

Gravely 05711300

Ring-Retaining-External .375 x .010

Note: (988114, 122)

$0.99

$

In Stock, only 3 left!

0

22

Gravely 04950500

Rod, Steering

Note: (988114, 122)

$

$

Not available

23

Gravely 04944800

Weldment, Control Stop Limiter-Right Hand

Note: (988114, 122)

$

$

Not available

24

Gravely 04938300

Weldment, Control Stop Limiter-Left Hand

Note: (988114, 122)

$

$

Not available

25

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

Note: (988114, 122)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

Note: (988114, 122)

$2.99

$

In Stock, Qty 8

0

27

Gravely 04943200

Weldment, Speed Control Pivot- Right Hand

Note: (988114, 122)

$

$

Not available

27

Gravely 04943300

Weldment, Speed Control Pivot- Left Hand

Note: (988114, 122)

$

$

Not available

28

Gravely 04944700

Lever- Control Stop Lock

Note: (988114, 122)

$34.99

$

Usually ships in 4-12 days

0

29

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06200312)

Note: (988114, 122)

$1.49

$

In Stock, only 4 left!

0

30

Gravely 04936900

Actuator, Switch

Note: (988114, 122)

$58.99

$

Usually ships in 4-12 days

0

31

Gravely 05803400

Pin-Roll .125 x .75

Note: (988114, 122)

$0.99

$

In Stock, Qty 16

0

32

Gravely 06514900

Nut-Push .312

Note: (988114, 122)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 04926053

Plate, Cover

Note: (988100, 102, 110, 114, 118)

$

$

Not available

34

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

Note: (988100, 102, 110, 114, 118)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06542000

Nut-Locking-Flange .375-16
(Superseded to 06500822)

Note: (988100, 102, 110, 114, 118)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (988100, 102, 110, 114, 118)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 07528300

Grip, Hand Clutch Lever

Note: (988114, 118, 122)

$3.99

$

In Stock, only 2 left!

0

38

Gravely 04928900

Bracket, Brake Link

Note: (988100, 102, 110, 121)

$

$

Not available

39

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

Note: (988100, 102, 110, 121)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06531000

Nut, Locking Nylon .25-20
(Superseded to 06500832)

Note: (988100, 102, 110, 121)

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 01320200

Washer, Wave

Note: (988114, 118, 122)

$3.49

$

In Stock, Qty 7
