988108 (HE 1748 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start (SN: 000101 - 001999) Electrical System - Electric Start Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start

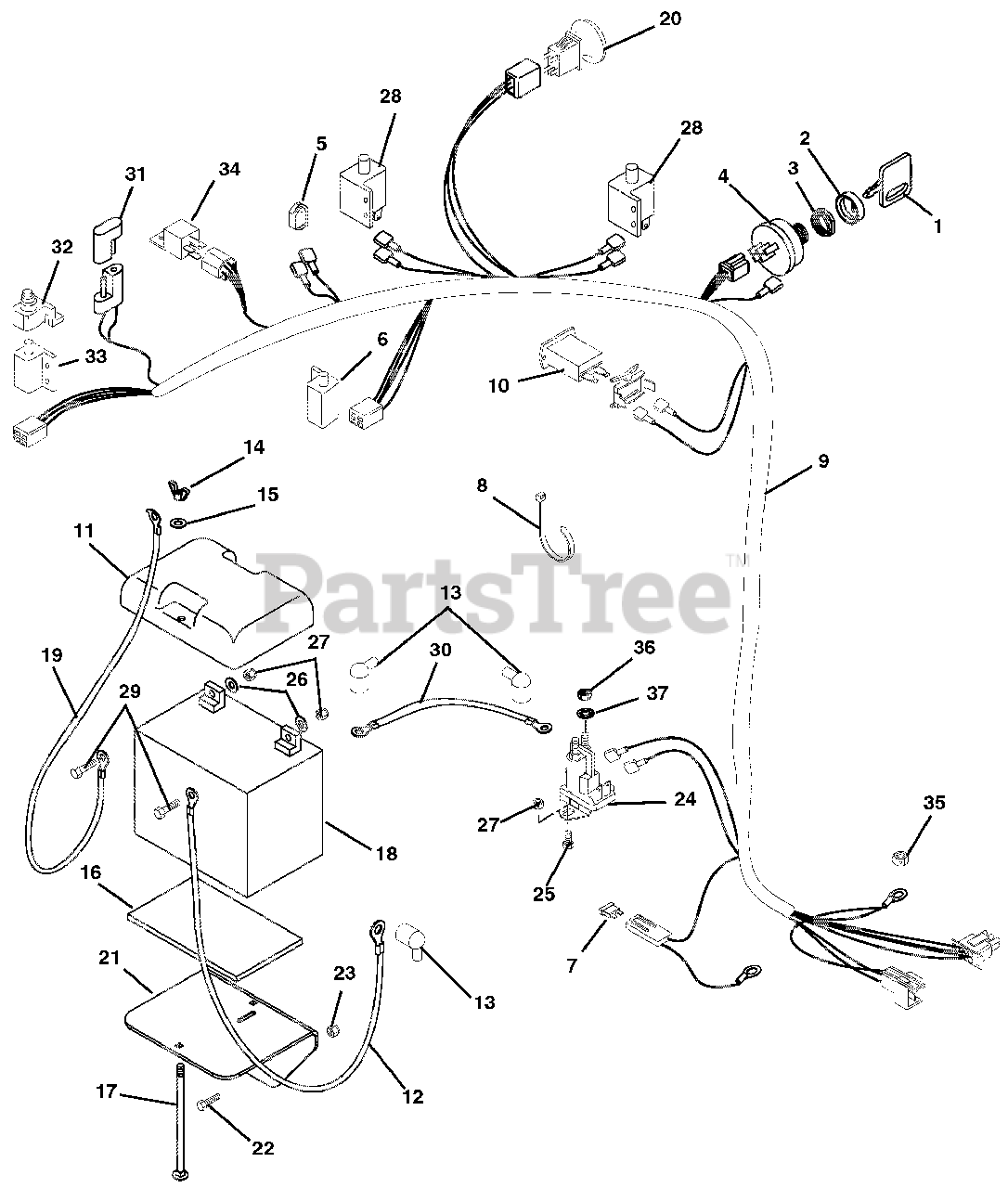

Electrical System - Electric Start Parts Diagram

  • Title

1

Gravely 02460700

Key- with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 045489

Nut, Panel .625-32
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 050673

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 03606600

Switch- Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

7

Gravely 09351100

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 036313

Tie Wrap-Black
(Superseded to 07517300)

$

$

Not available

9

Gravely 04928000

Wire Harness
(Superseded to 03287500)

$214.99

$

Usually ships in 4-12 days

0

10

Gravely 04935700

Hour Meter-Quartz
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

11

Gravely 04912900

Cover-Battery

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 02743300

Cable, Positive Battery
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

13

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

14

Gravely 06537500

Nut-Locking-Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

15

Gravely 06437300

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 050417

Pad, Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, only 2 left!

0

18

Gravely 01554800

Battery

$

$

Not available

19

Gravely 042130

Cable, Negative Battery
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

20

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

21

Gravely 04924451

Weldment, Battery Tray

$90.99

$

Usually ships in 4-12 days

0

22

Gravely 05948700

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

24

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

25

Gravely 05946800

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06530100

Nut-Locking-Flange .25-20 (108, 109)
(Superseded to 06500824)

Note: (108, 109)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 03657100

Switch- Single Pole (N.O.)

Note: (N.O.)

$9.49

$

In Stock, only 2 left!

0

29

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 042696

Starter Cable 6.75"
(Superseded to 00145900)

$13.99

$

In Stock, only 1 left!

0

31

Gravely 03081700

Molded Diode Plug 1 AMP

$26.99

$

Usually ships in 4-12 days

0

32

Gravely 07534400

Boot, Rubber

$

$

Not available

33

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

34

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

35

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06536700

Nut- Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

37

Gravely 06310500

Washer-Locking .31

$0.99

$

In Stock, only 3 left!
