988106 (HR 1548 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 001999) 44", 48" And 52" Discharge Chute And Baffles Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

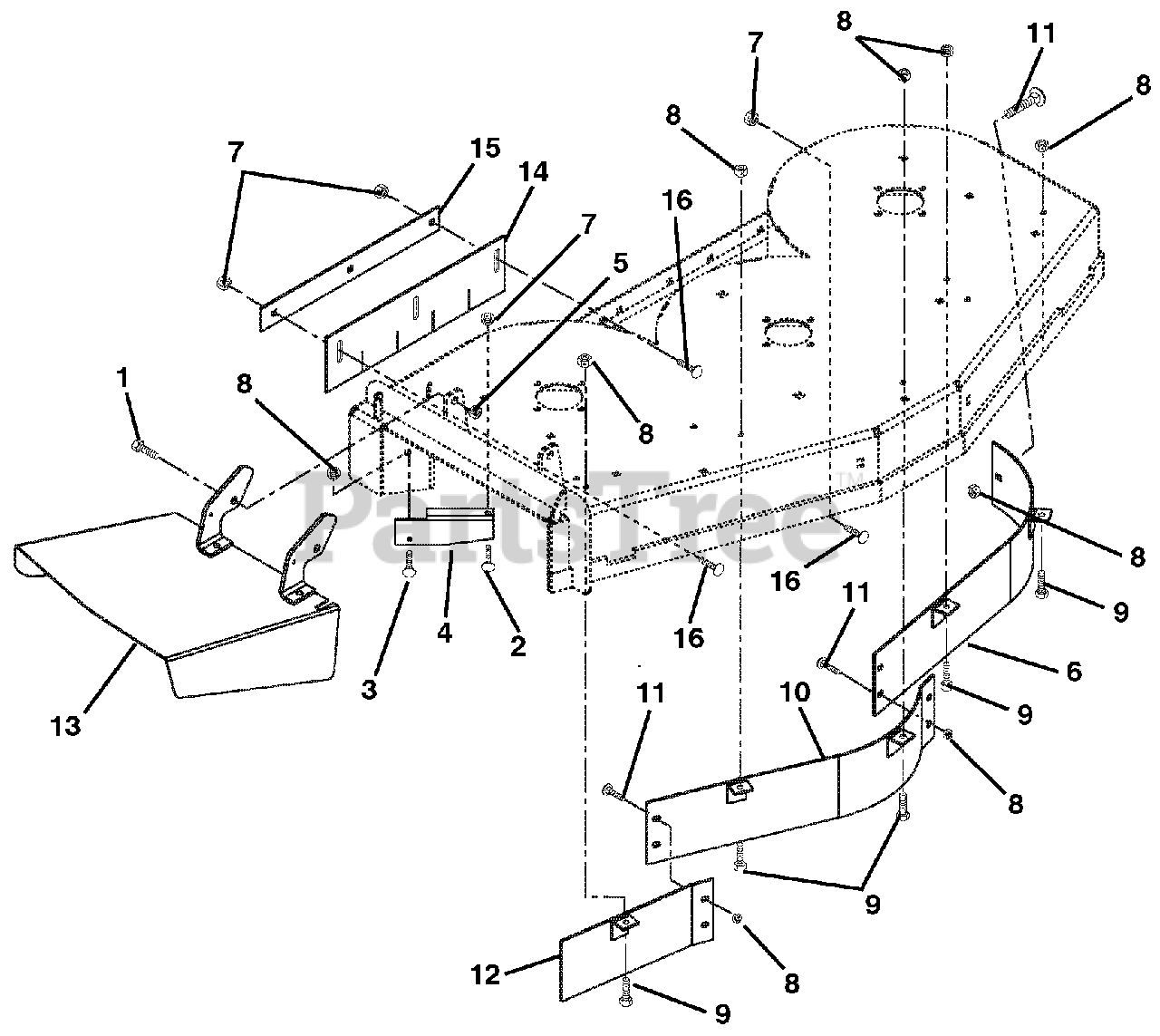

44", 48" And 52" Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

2

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 04919451

Deflector 48" (106, 107, 108)
(Superseded to 04939853)

Note: (106, 107, 108)

$58.99

$

Usually ships in 4-12 days

0

Gravely 04939851

Deflector 44" (113)
(Superseded to 04939853)

Note: (113)

$58.99

$

Usually ships in 4-12 days

0

Gravely 04921951

Deflector 52"(109)
(Superseded to 04921953)

Note: (109)

$

$

Not available

5

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 04918951

Weldment- Upper Baffle Left (106, 107, 108)
(Superseded to 04918953)

Note: (106, 107, 108)

$75.99

$

Usually ships in 4-12 days

0

Gravely 04938951

Weldment- Baffle- Left Front-44" (113)

Note: (113)

$

$

Not available

Gravely 04921651

Weldment- Baffle- Left Front-52""(109)
(Superseded to 04921653)

Note: (109)

$56.99

$

In Stock, only 1 left!

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04919051

Weldment- Upper Baffle Center (106, 107, 108)
(Superseded to 04919053)

Note: (106, 107, 108)

$60.99

$

Usually ships in 4-12 days

0

Gravely 04939051

Weldment-Baffle-Center Front- 44 (113)

Note: (113)

$156.99

$

Usually ships in 4-12 days

0

Gravely 04921751

Weldment- Baffle-Center Front-52"(109)

Note: (109)

$74.99

$

In Stock, only 1 left!

0

11

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 04919651

Weldment, Right Hand Baffle-Upper (106, 107, 108)
(Superseded to 04919653)

Note: (106, 107, 108)

$34.99

$

Usually ships in 4-12 days

0

Gravely 04939151

Weldment-Baffle-Right Front- 44" (113)

Note: (113)

$100.99

$

Usually ships in 4-12 days

0

Gravely 04921851

Weldment- Baffle- Right Front-52" (109)
(Superseded to 04921853)

Note: (109)

$37.99

$

In Stock, Qty 8

0

13

Gravely 04917853

Chute-Discharge

$187.99

$

Usually ships in 4-12 days

0

14

Gravely 04919300

Skirt- Rubber

$39.99

$

Usually ships in 4-12 days

0

15

Gravely 04919251

Strip- Striper Mount

$

$

Not available

16

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0
