988105 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 006000 & Above) 32" And 36" Discharge Chute And Baffles Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

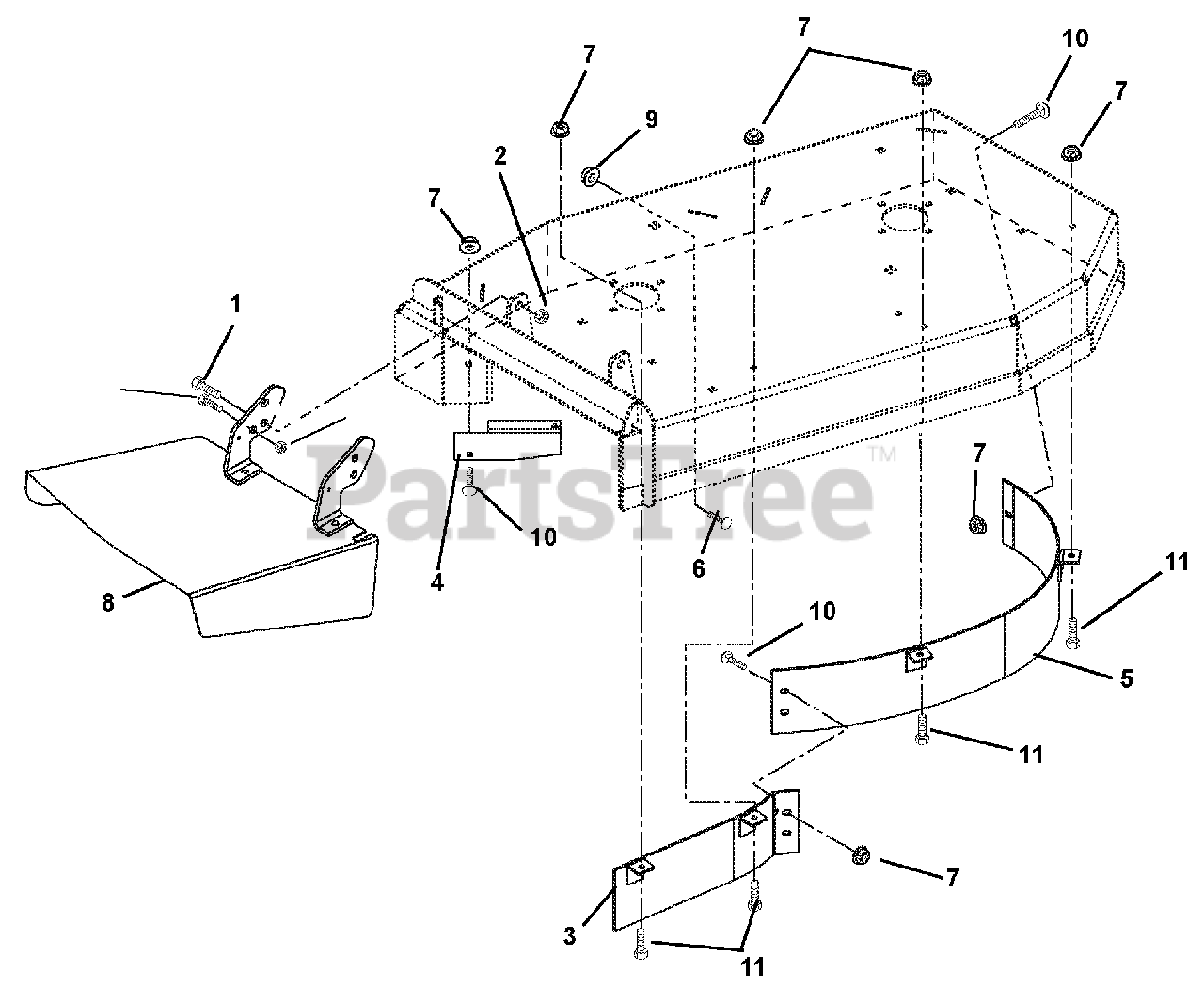

32" And 36" Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

2

Gravely 06540600

Nut, Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 04916353

Baffle, Right Front 36"

$63.99

$

Usually ships in 4-12 days

0

Gravely 04929553

Baffle, Right Front 32"

$

$

Not available

4

Gravely 04930253

Deflector 32"

$

$

Not available

5

Gravely 04916253

Baffle, Left Front 36"

$55.99

$

Usually ships in 4-12 days

0

Gravely 04929453

Baffle, Left Front 32"

$

$

Not available

6

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

7

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 04917853

Chute, Discharge

$187.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0
