988105 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 006000 & Above) 32", 36" And 48" Fixed Deck And Mower Frame Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

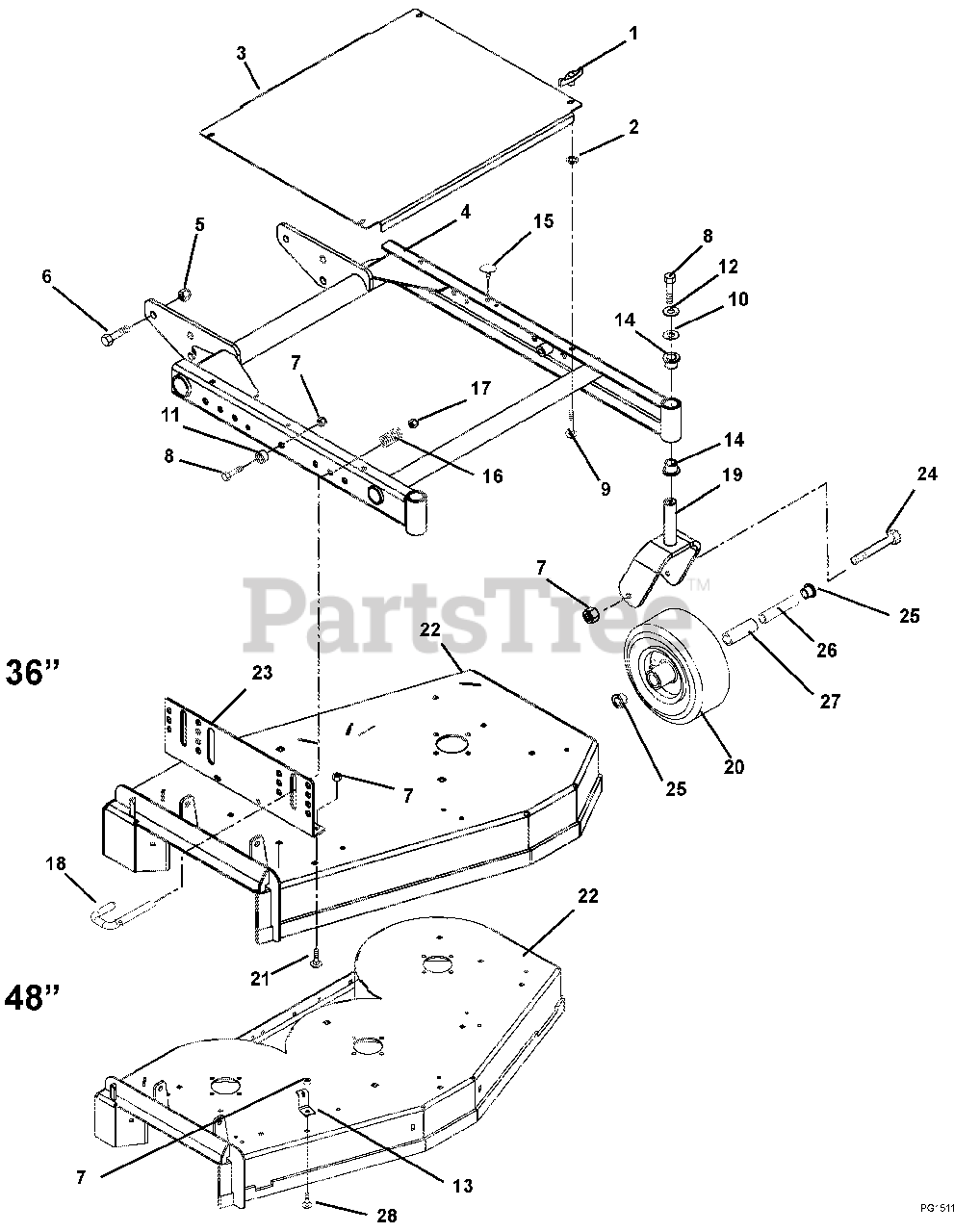

32", 36" And 48" Fixed Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

Knob, Wing .312-18 (105, 120, 123, 124)
(Superseded to 07534800)

Note: (105, 120, 123, 124)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06514900

Nut, Push .312 (105, 120, 123, 124)

Note: (105, 120, 123, 124)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04916753

Cover, Belt Pro Mower (105, 120)

Note: (105, 120)

$

$

Not available

Gravely 04919853

Cover, Belt Pro Mower (123, 124)

Note: (123, 124)

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 04916653

Weldment, Mower Frame 36" (105, 120)

Note: (105, 120)

$

$

Not available

Gravely 04919753

Weldment, Mower Frame 48" (123, 124)

Note: (123, 124)

$

$

Not available

5

Gravely 06540700

Nut, Locking-Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05968700

Bolt, Hex .62-11 x 1.50

$3.99

$

In Stock, only 3 left!

0

7

Gravely 06542000

Nut, Locking-Top-Flange .38-16 (105, 120)
(Superseded to 06500822)

Note: (105, 120)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

Nut, Locking-Top-Flange .38-16 (123, 124)
(Superseded to 06500822)

Note: (123, 124)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06221800

Bolt, Round Head Square Neck .31-18 x 1.00 (105, 120, 123, 124)
(Superseded to 06200237)

Note: (105, 120, 123, 124)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06443400

Washer, Flat-Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0

11

Gravely 08553700

Bushing

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09245353

Anchor, Spring

$

$

Not available

14

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

Bumper Grommet .125 x .25 Dia.

$3.49

$

In Stock, only 3 left!

0

16

Gravely 08325900

Spring, Compression .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 06536300

Nut, Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 04920400

Pin, Latch

$36.99

$

Usually ships in 4-12 days

0

19

Gravely 04917053

Weldment. Caster Fork

$148.99

$

Usually ships in 4-12 days

0

20

Gravely 07157200

Wheel 9 x 3.50
(Superseded to 07100931)

$136.99

$

In Stock, only 2 left!

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade (105, 120, 123, 124)
(Superseded to 06200313)

Note: (105, 120, 123, 124)

$2.49

$

In Stock, Qty 12

0

22

Gravely 58804400

Kit, 32" Fixed Mower Deck with Decals

$

$

Not available

Gravely 58804500

Kit, 36" Fixed Mower Deck with Decals (105, 120)

Note: (105, 120)

$475.99

$

Usually ships in 4-12 days

0

Gravely 58804600

Kit, 48" Fixed Mower Deck with Decals (123, 124)

Note: (123, 124)

$

$

Not available

23

Gravely 58806600

Kit, Mower Side Support Bracket-Right Hand and Left Hand

$157.99

$

Usually ships in 4-12 days

0

24

Gravely 05925400

Bolt, Hex .38-16 x 5.50
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 07000014

Bearing, Retainer

$39.99

$

Usually ships in 4-12 days

0

26

Gravely 04916900

Bearing .625 x .380 x 4.08

$71.99

$

Usually ships in 4-12 days

0

27

Gravely 05400003

Bearing, Roller

$22.99

$

In Stock, only 4 left!

0

28

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0
