988105 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 003000 - 005999) Wheels Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

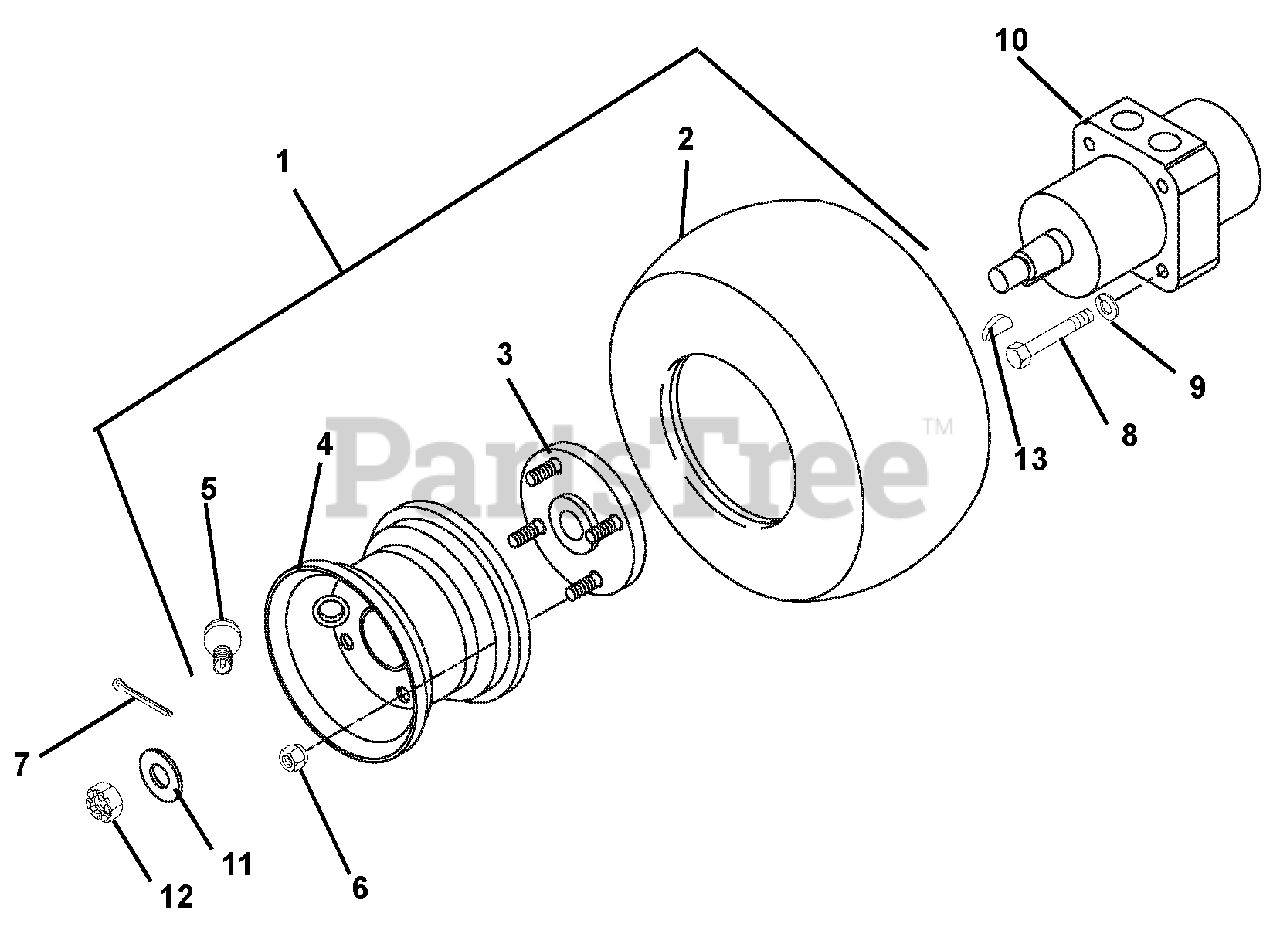

Wheels Parts Diagram

  • Title

1

Gravely 07157400

Assembly, Tire and Wheel (includes 2 thru 6)
(Superseded to 07100301)

Note: (includes 2 thru 6)

$

$

Not available

2

Gravely 07157900

Tire 18 x 8.50 - 8
(Superseded to 07101220)

$113.99

$

In Stock, only 1 left!

0

3

Gravely 07158000

Assembly-Hub
(Superseded to 07100309)

$

$

Not available

4

Gravely 07157800

Assembly-Rim

$113.99

$

Usually ships in 4-12 days

0

5

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

6

Gravely 06535000

Nut-Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06712600

Pin-Center .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 04915500

Motor, Hydraulic Wheel
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

11

Gravely 06441500

Washer-Flat-Steel .812 x 1.50 x .135
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

12

Gravely 052053

Nut, Hex .75-28 Slotted
(Superseded to 08846900)

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 06608700

Key-Woodruff .19 x .75

$1.49

$

In Stock, Qty 20+

0
