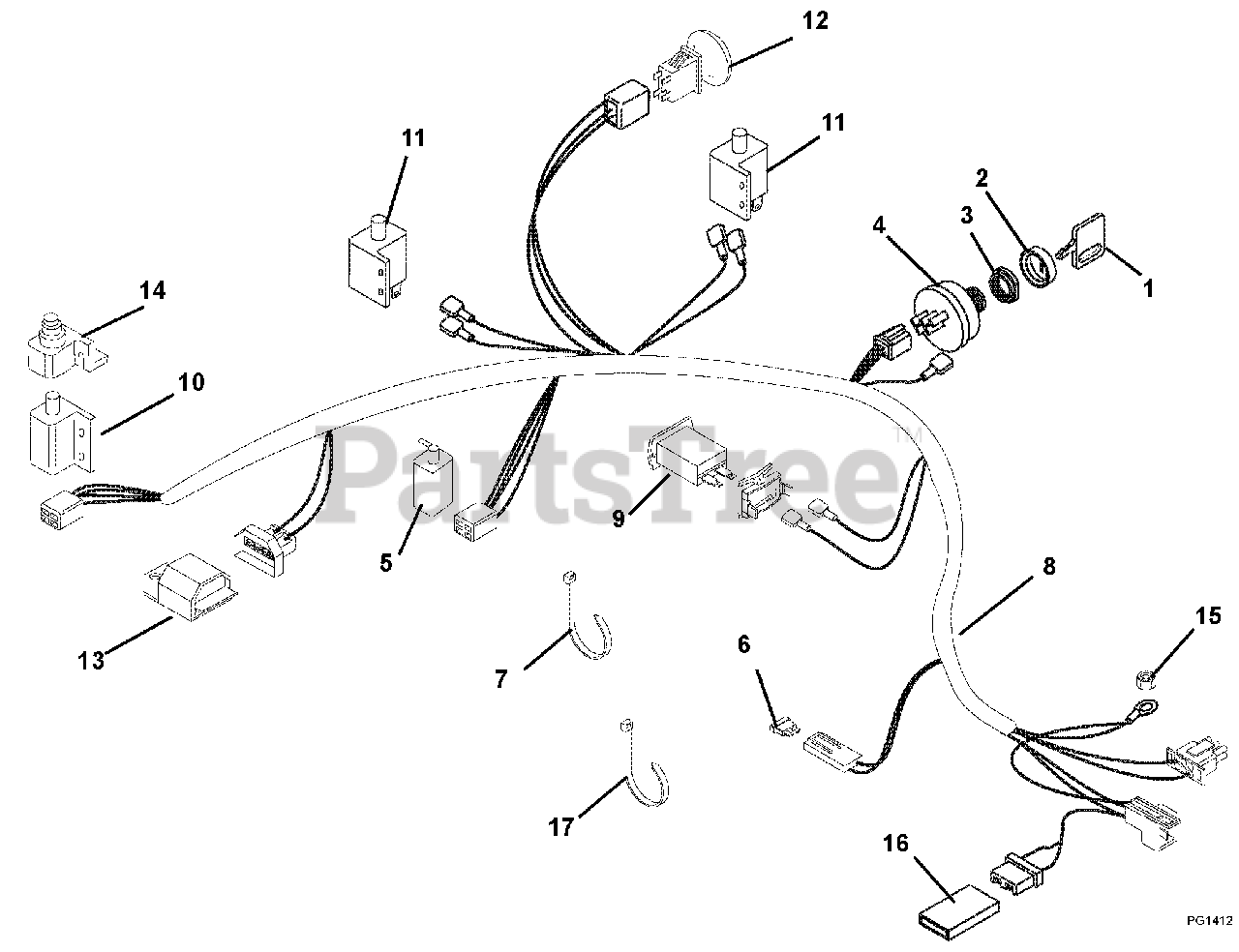

988105 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 003000 - 005999) Electrical System - Recoil Start - Pistol Grips Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Electrical System - Recoil Start - Pistol Grips Parts Diagram

  • Title

1

Gravely 02460700

Key- with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 045489

Nut, Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 03606600

Switch- Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

6

Gravely 09351100

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 036313

Tie Wrap-Black
(Superseded to 07517300)

$

$

Not available

8

Gravely 04928100

Wire Harness

$

$

Not available

9

Gravely 04935700

Hour Meter-Quartz
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

10

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

11

Gravely 03657100

Switch- Single Pole (N.O.)

Note: (N.O.)

$9.49

$

In Stock, only 2 left!

0

12

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

13

Gravely 08885700

Module, Interlock, Recoil

$87.99

$

In Stock, Qty 6

0

14

Gravely 07534400

Boot, Rubber

$

$

Not available

15

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09293500

Diode-Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

17

Gravely 04003800

Tie Wrap

$

$

Not available
