988100 (GR 1336 FX) - Gravely Pro-Gear 36" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 005100 - 005999) Electrical System - Recoil Start - Pistol Grips Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

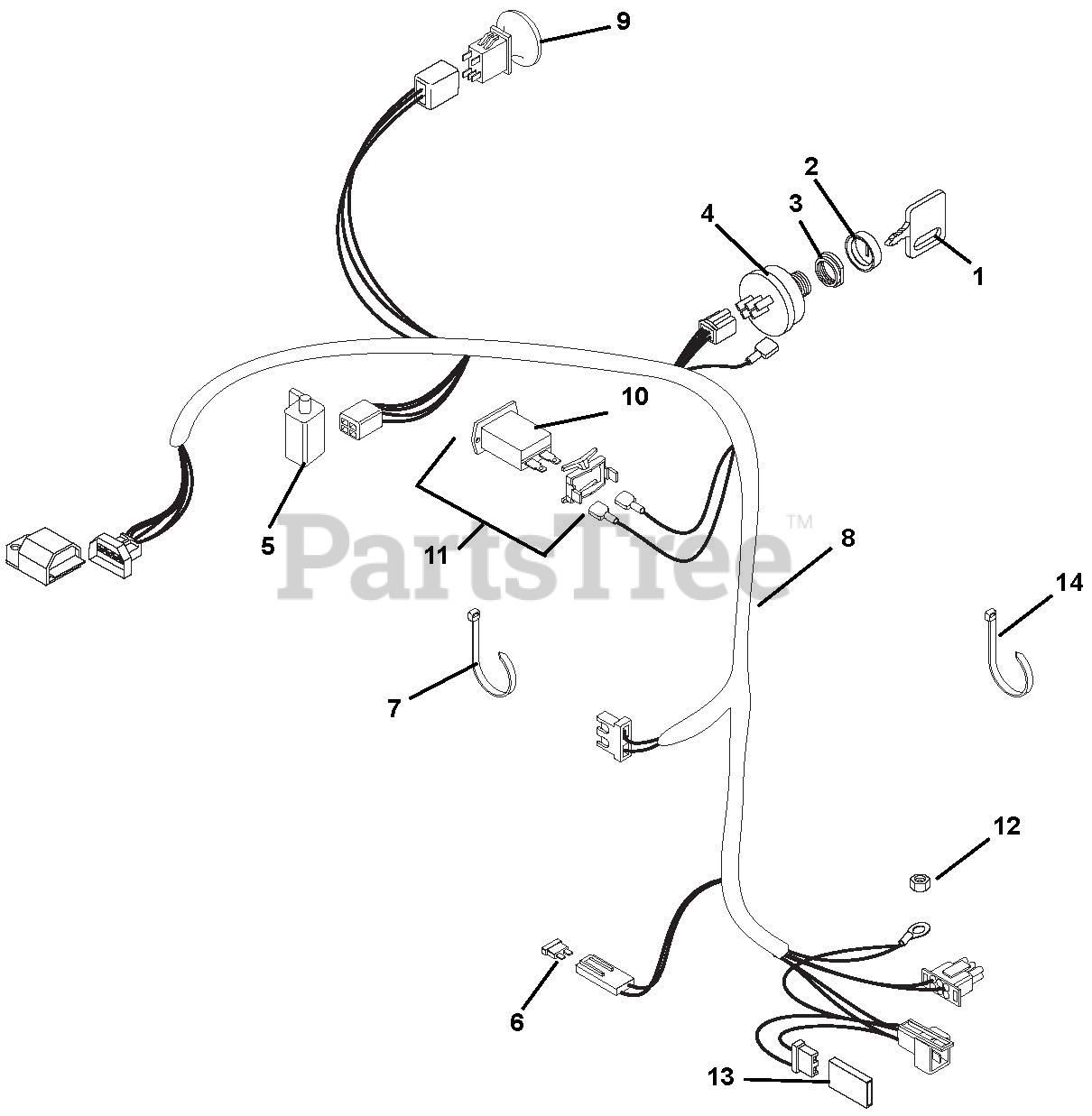

Electrical System - Recoil Start - Pistol Grips Parts Diagram

  • Title

1

Gravely 02460700

Key- with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 07517700

Cap, Ignition Switch

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06517400

Nut, Panel .562-24

$20.99

$

In Stock, only 1 left!

0

4

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

5

Gravely 08828100

Switch- Interlock

$20.99

$

In Stock, only 1 left!

0

6

Gravely 09351100

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 07517300

Tie Wrap-Black

$

$

Not available

8

Gravely 04949300

Wire Harness, Pro Gear
(Superseded to 03288000)

$

$

Not available

9

Gravely 04940800

Switch, PTO N.M.I.R.

$

$

Not available

10

Gravely 04935700

Hour Meter-Quartz
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

11

Gravely 78804200

Kit, Hour Meter

Note: (Optional)

$

$

Not available

12

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, Qty 5

0

14

Gravely 04003800

Tie Wrap

$

$

Not available
