988093 - Gravely Pro 300 Walk-Behind Mower Power Unit, 18hp Robin (SN: 000101 & Above) Wheel Drive Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 18hp Robin

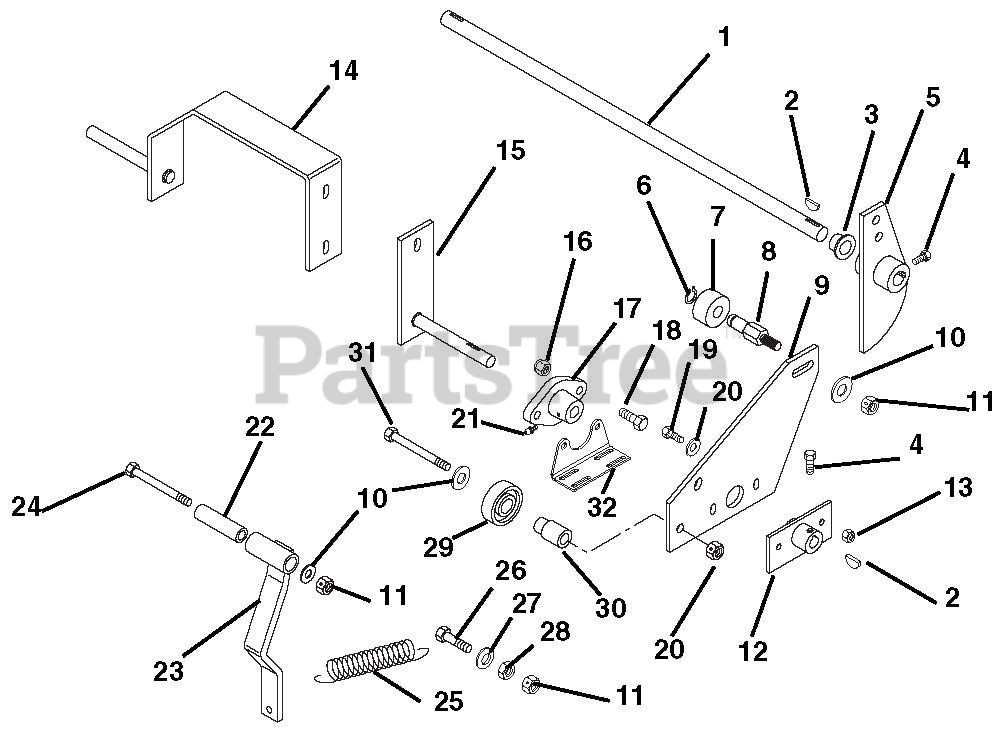

Wheel Drive Parts Diagram

  • Title

1

Gravely 051131

SHFT,SPEED CTL CAM
(Superseded to 08843900)

Note: Gravely Part Number

$13.99

$

Usually ships in 4-12 days

0

2

Gravely 124547

KEY-WDRF .125X.75
(Superseded to 06608600)

Note: Gravely Part Number

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

Note: Gravely Part Number

$

$

Not available

4

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 051117

WLDMT,CONTROL CAM
(Superseded to 08842900)

Note: Gravely Part Number

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 048988

RG-RTNG-EXT.50 X .034
(Superseded to 05715600)

Note: Gravely Part Number

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 059993

Roller-Nylon

Note: Gravely Part Number

$

$

Not available

8

Gravely 051123

PIN,ROLLER
(Superseded to 08843300)

Note: Gravely Part Number

$

$

Not available

9

Gravely 052202

ARM,SPEED CONTROL
(Superseded to 08847100)

Note: Gravely Part Number

$

$

Not available

10

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 01525500

ARM, SPEED CONTROL

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 052682

WLDMT,PUMP CONTROL R.H.
(Superseded to 08848400)

Note: Gravely Part Number

$

$

Not available

15

Gravely 052683

WLDMT,PUMP CONTROL L.H.
(Superseded to 08848500)

Note: Gravely Part Number

$109.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 01522000

BUSHING, FLANGED

$34.99

$

In Stock, only 1 left!

0

18

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

Note: Gravely Part Number

$

$

Not available

22

Gravely 049022

BUSH.,S.385X.610X1.80 ST
(Superseded to 08831500)

Note: Gravely Part Number

$5.99

$

In Stock, only 2 left!

0

23

Gravely 051124

WLDMT, DETENT STRAP
(Superseded to 04906451)

Note: Gravely Part Number

$

$

Not available

24

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

Note: (Left Side)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

Note: (Right Side)

$3.99

$

In Stock, only 4 left!

0

25

Gravely 051233

SG-TENS .063X.62X2.75
(Superseded to 08345500)

Note: Gravely Part Number

$14.99

$

Usually ships in 4-12 days

0

26

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

27

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

30

Gravely 09107200

HUB, BRG. MOUNT

$

$

Not available

31

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

32

Gravely 04906500

BRACKET, STEERING SWITCH

$

$

Not available
