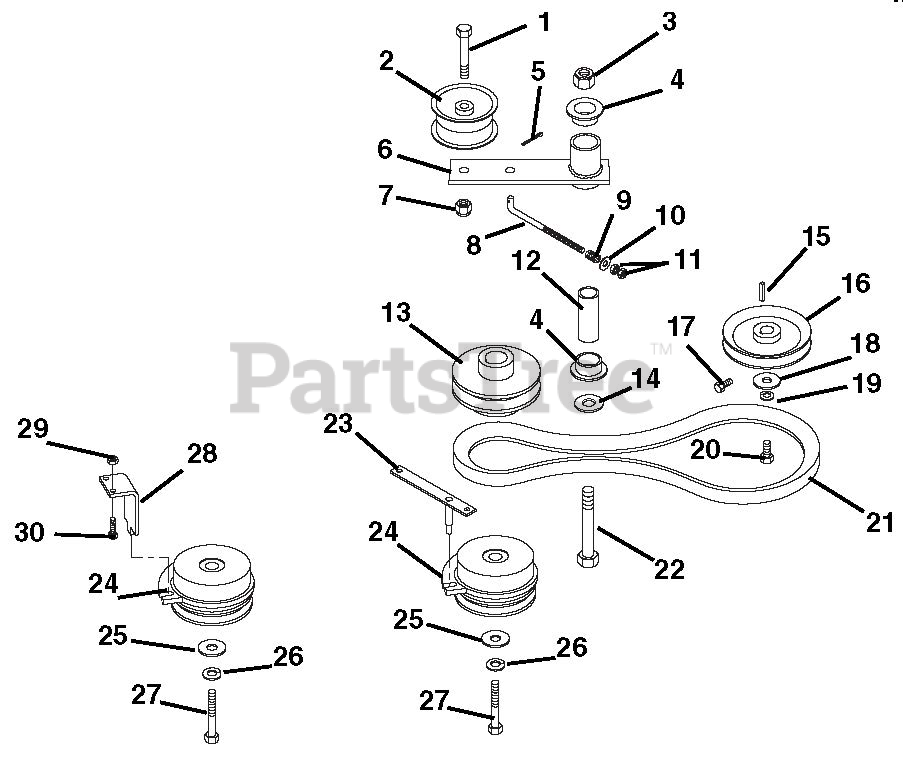

988093 - Gravely Pro 300 Walk-Behind Mower Power Unit, 18hp Robin (SN: 000101 & Above) Traction Clutch Linkage And Electric Clutch Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 18hp Robin

Traction Clutch Linkage And Electric Clutch Parts Diagram

  • Title

1

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

Note: Gravely Part Number

$34.99

$

In Stock, only 1 left!

0

3

Gravely 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

Note: Gravely Part Number

$4.99

$

In Stock, Qty 20+

0

5

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

6

Gravely 051134

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

Note: Gravely Part Number

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 052661

ROD,IDLER
(Superseded to 08879300)

Note: (988307, 310) Gravely Part Number

$77.99

$

Usually ships in 4-12 days

0

8

Gravely 046264

ROD,IDLER
(Superseded to 08656800)

Note: (988093) Gravely Part Number

$64.99

$

Usually ships in 4-12 days

0

9

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

Note: Gravely Part Number

$15.99

$

In Stock, only 2 left!

0

10

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

Note: Gravely Part Number

$21.99

$

In Stock, only 1 left!

0

13

Gravely 09113600

SHEAVE

Note: (988307, 093)

$116.99

$

Usually ships in 4-12 days

0

13

Gravely 07321700

PLY-V 4.00X1.125X1.87H

Note: (988310)

$107.99

$

Usually ships in 4-12 days

0

14

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

Note: Gravely Part Number

$3.99

$

In Stock, only 2 left!

0

16

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

Note: Gravely Part Number

$51.99

$

In Stock, only 2 left!

0

17

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 012694

WSHR-FL-STL .281X1.250X.048PL
(Superseded to 06403700)

Note: Gravely Part Number

$

$

Not available

19

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$1.99

$

In Stock, Qty 14

0

21

Gravely 051141

V-BELT, HA-COGGED
(Superseded to 07223100)

Note: Gravely Part Number

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

23

Gravely 04907200

ANCHOR-CLUTCH

Note: (988093, 310)

$68.99

$

In Stock, only 1 left!

0

24

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

Note: (988093)

$491.99

$

In Stock, only 1 left!

0

24

Gravely 04902900

CLUTCH, ELECTRIC

Note: (988307, 310)

$

$

Not available

25

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

26

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

27

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

28

Gravely 09113400

CLUTCH STOP

Note: (988307)

$

$

Not available

29

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (988307)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (988307)

$1.49

$

In Stock, Qty 20+

0
