988093 - Gravely Pro 300 Walk-Behind Mower Power Unit, 18hp Robin (SN: 000101 & Above) Parking Brake Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 18hp Robin

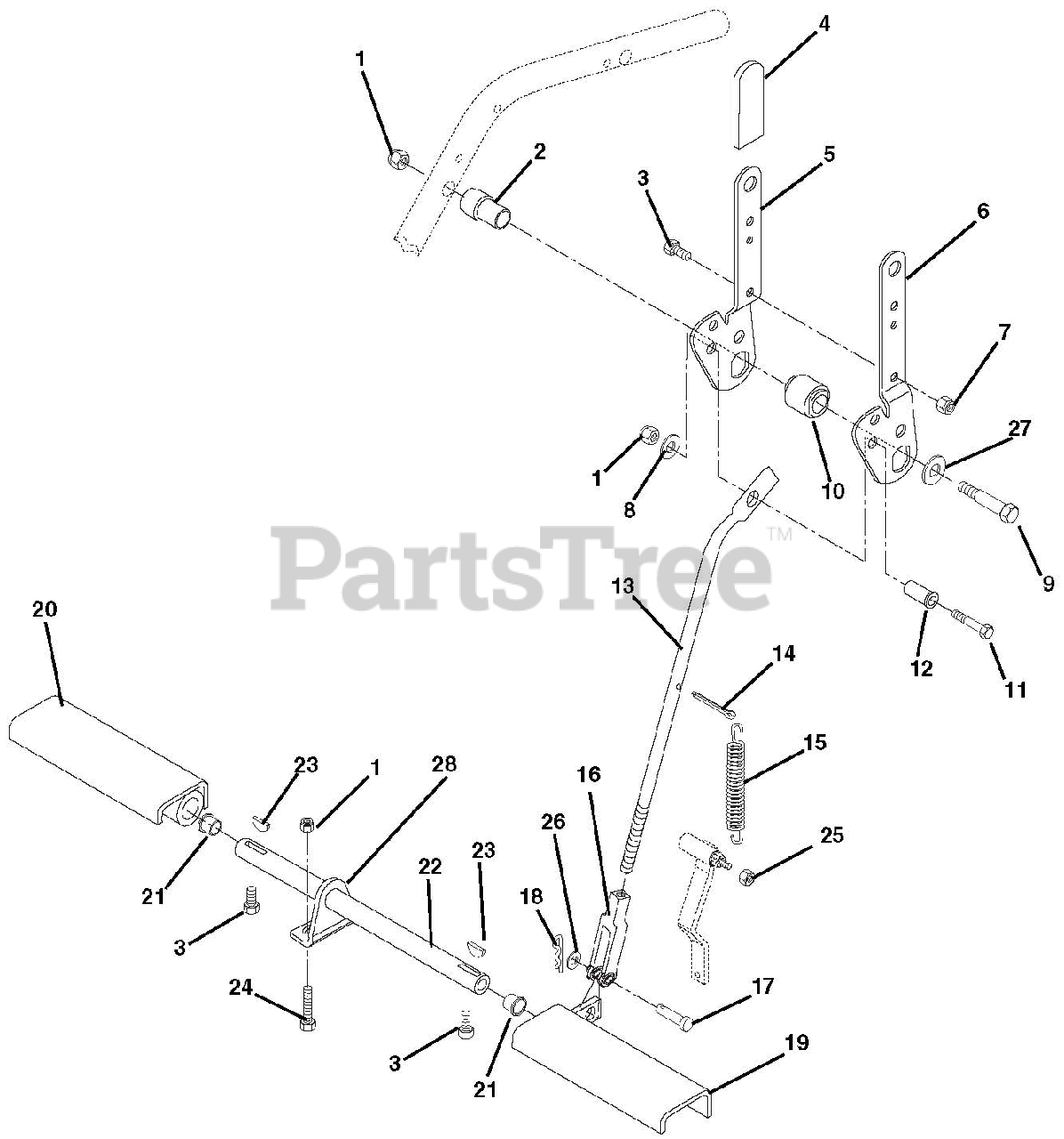

Parking Brake Parts Diagram

  • Title
1

Gravely 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 08546700

PVT,HAND LVR L.H.

$

$

Not available

3

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 07529000

GRIP,HANDLE

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 08546800

HNDL,CONTROL L.H.

$

$

Not available

6

Gravely 08546900

HNDL,CONTROL R.H.

$

$

Not available

7

Gravely 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07022800

BLT-HEX .38-16X3.75 PL

$

$

Not available

10

Gravely 07526300

BUSH.,F.751X1.13X1.07 NY

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Gravely 05521000

BSHG-FLG .257X.38X1.080 NYL

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 04908300

ROD, BRAKE PULL

$

$

Not available

14

Gravely 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 08345500

SG-TENS .063X.62X2.75

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 06814900

PIN-CLEV .38X1.25 YWZC

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 04906251

WMT, BRAKE ARM

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 04906651

WMT, BRAKE ARM
(Superseded to 04906600)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 05517400

BSHG-FLG .630X1.000X.625 NY

$

$

Not available

22

Gravely 08843900

SHFT,SPEED CTL CAM

$13.99

$

Usually ships in 4-12 days

0

23

Gravely 06608600

KEY-WDRF .125X.75

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 04908200

BRACE, BRAKE

$

$

Not available
