988092 - Gravely Pro 150 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 010000 & Above) PTO Clutch Linkage Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

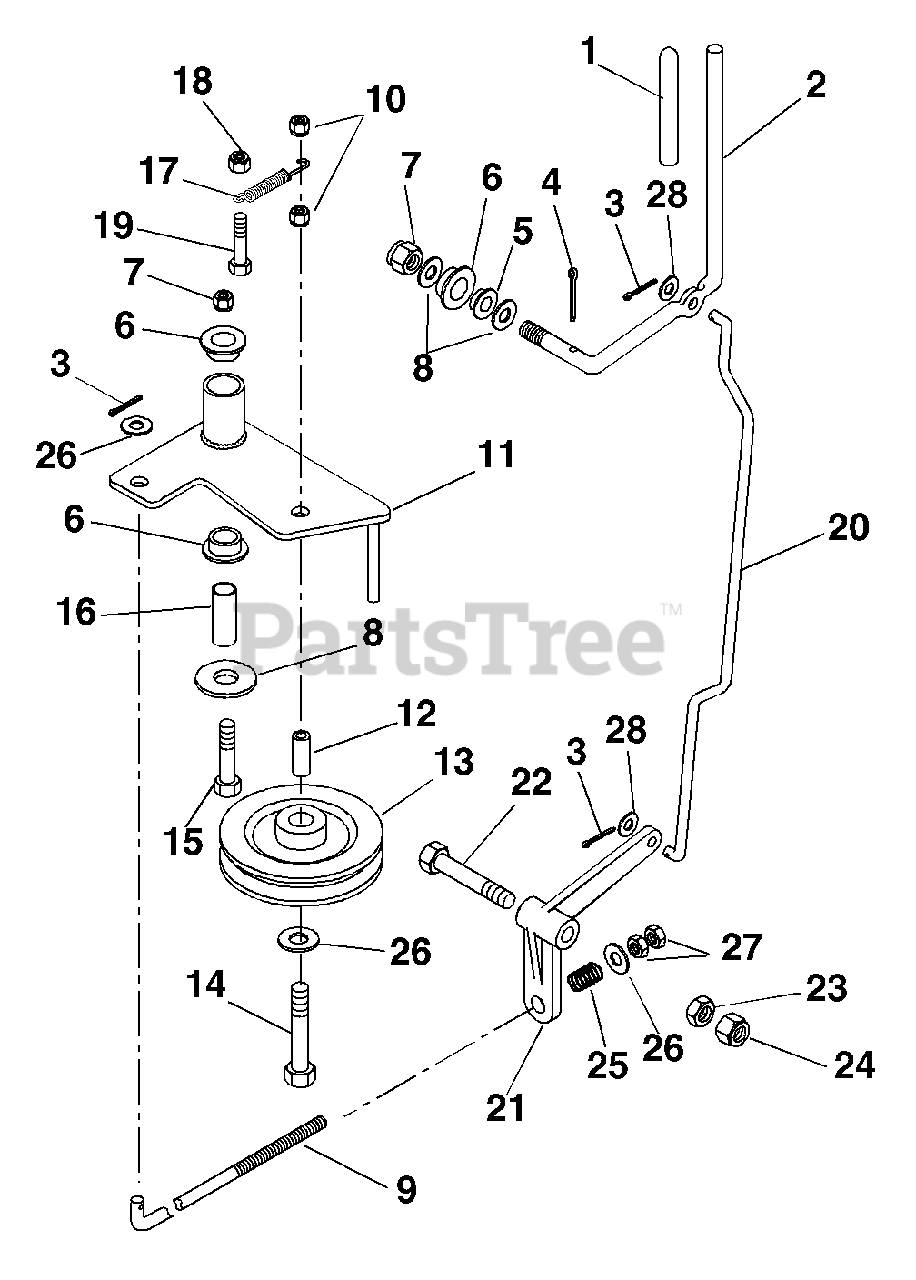

PTO Clutch Linkage Parts Diagram

  • Title

1

Gravely 043196

GRIP,PTO LEVER
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 08878400

LVR,PTO ACTUATING

$

$

Not available

3

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

4

Gravely 06712800

@PIN-CTR .18X1.50 EXTPRSQCT YZ

$1.99

$

In Stock, only 2 left!

0

5

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

9

Gravely 08873000

PTO LINK ROD, PRO-150

$38.99

$

Usually ships in 4-12 days

0

10

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 08872300

DECLUTCH ARM - PRO PTO

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 08874100

SPACER .391 ID X .62 OD X 1.0

$

$

Not available

13

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

14

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 08872400

BUSHING FOR DECLUTCH ARM PIVOT

$

$

Not available

17

Gravely 08329500

SG-TENS .095X.85X4.38 WLD25

$14.99

$

In Stock, only 2 left!

0

18

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 10

0

20

Gravely 08873300

PTO LEVER LINK ROD, PRO 150

$

$

Not available

21

Gravely 049271

LVR,PTO CLUTCH
(Superseded to 08834400)

$

$

Not available

22

Gravely 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

26

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
