988092 - Gravely Pro 150 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 010000 & Above) Fuel And Exhaust System - 16 H.P. Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

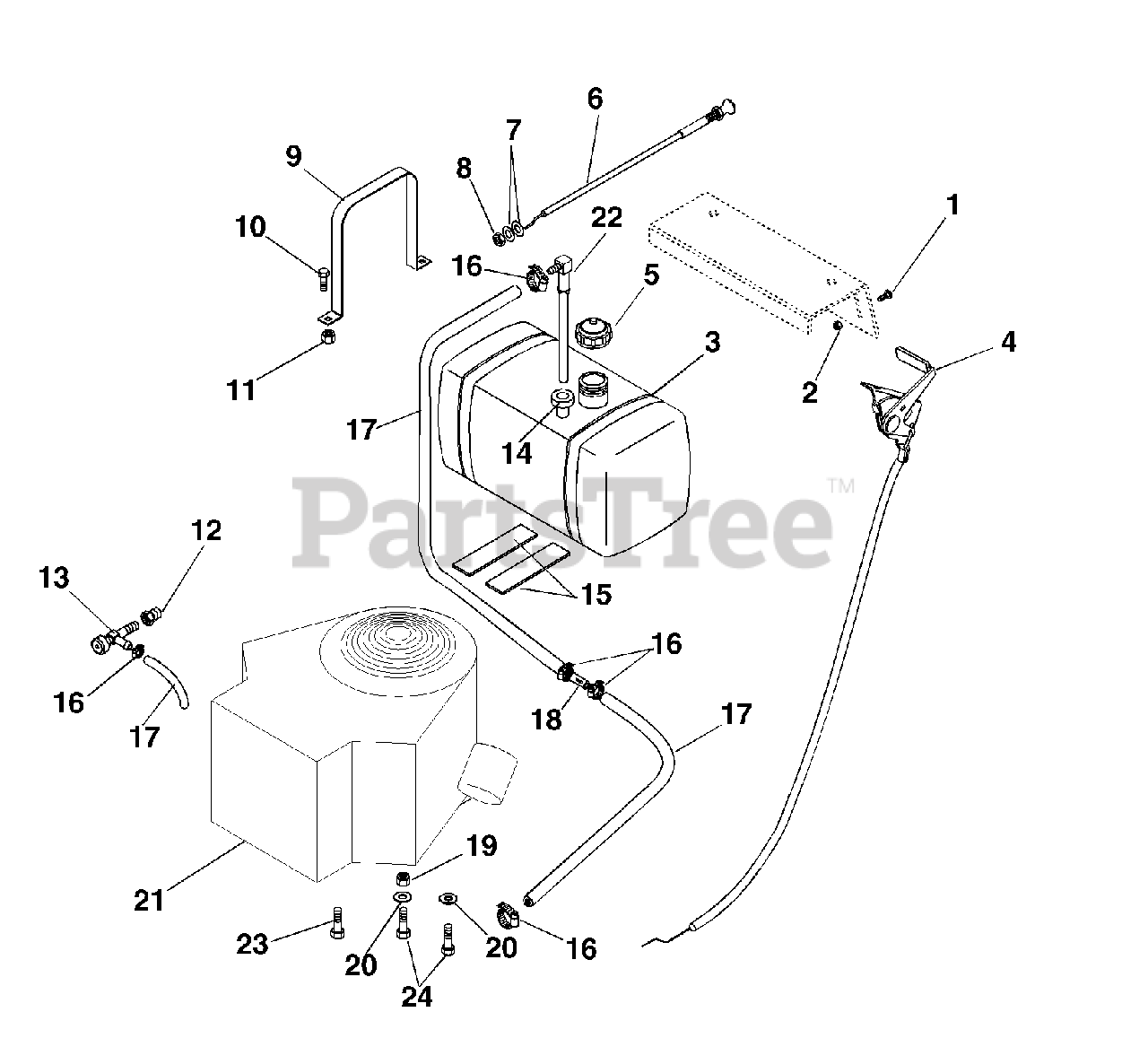

Fuel And Exhaust System - 16 H.P. Parts Diagram

  • Title
1

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 411893

NUT-LK 10-32 NY YWZC
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 091122

FUEL TANK
(Superseded to 09112200)

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 06942400

THROTTLE CONTROL

$48.99

$

Usually ships in 4-12 days

0

5

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

6

Gravely 035137

CONTROL,CHOKE
(Superseded to 06924800)

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 09112100

TANK STRAP FOR 4.5 G FUEL TANK

Note: For 4.5 G Fuel Tank

$

$

Not available

10

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 047613

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

16

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08252100

ENGINE BRIGGS 16HP TWIN

$

$

Not available

22

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

23

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

24

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0
