988091 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 010000 & Above) Fuel And Exhaust System - 12.5 H.P. And 14 H.P. Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

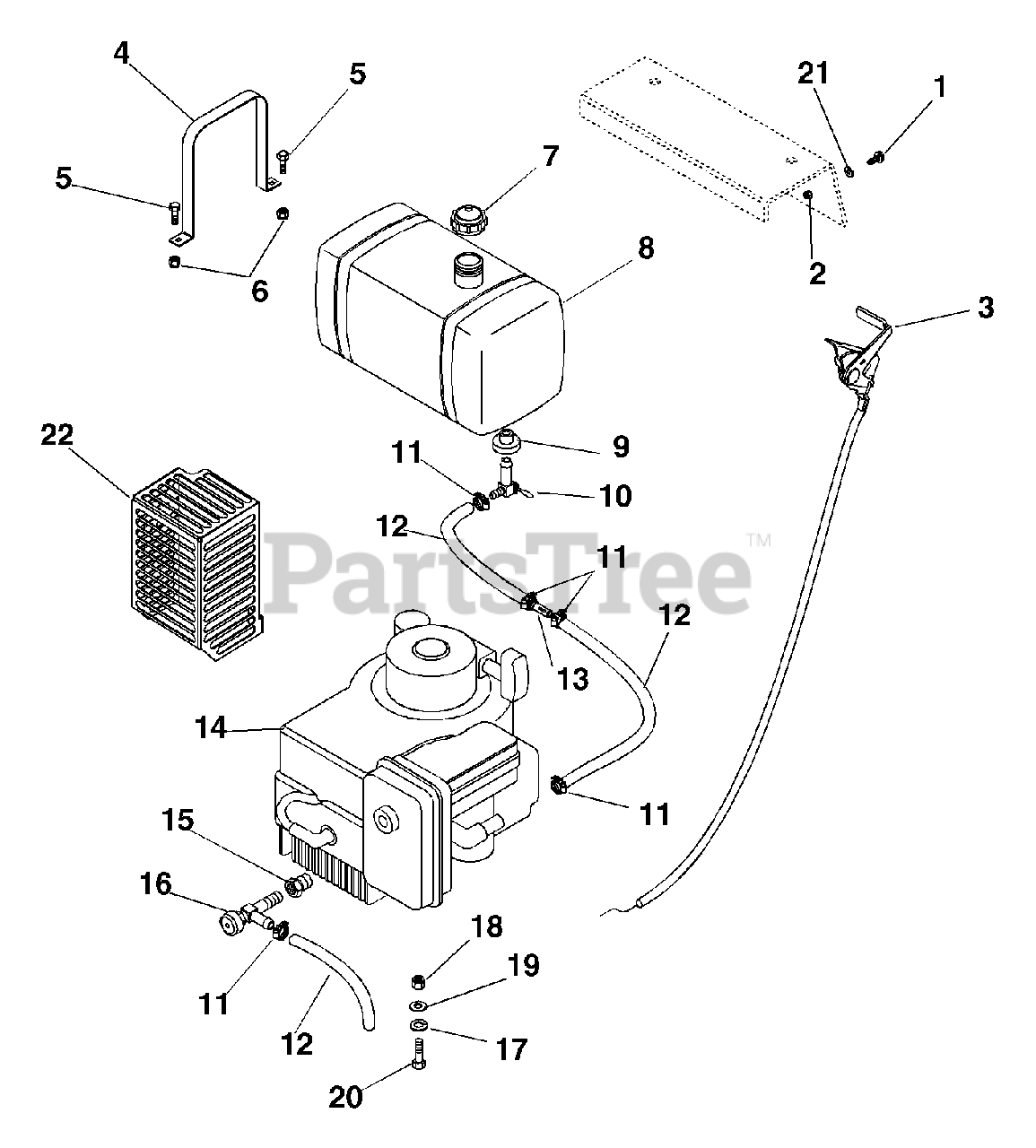

Fuel And Exhaust System - 12.5 H.P. And 14 H.P. Parts Diagram

  • Title
1

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06943600

CABLE, CONTROL

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 09112100

TANK STRAP FOR 4.5 G FUEL TANK

$

$

Not available

5

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

8

Gravely 09112000

FUEL TANK, 4.5 GALLON

$

$

Not available

9

Gravely 047613

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 049284

VALVE,BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 08235000

ENG,KAWASAKI SPEC GS01

Note: (Model 091)

$

$

Not available

Gravely 08237500

ENGINE-14 HP KAWASAKI OHV

Note: (Models 088, 309)

$

$

Not available

15

Gravely 041831

ADPT,OIL DRAIN
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05968200

@BLT-HEX M8 X 1.25X30 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 04903000

WLDMT, MUFFLER GUARD

Note: (Model 039)

$31.99

$

Usually ships in 4-12 days

0
