988091 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 010000 & Above) Frame Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

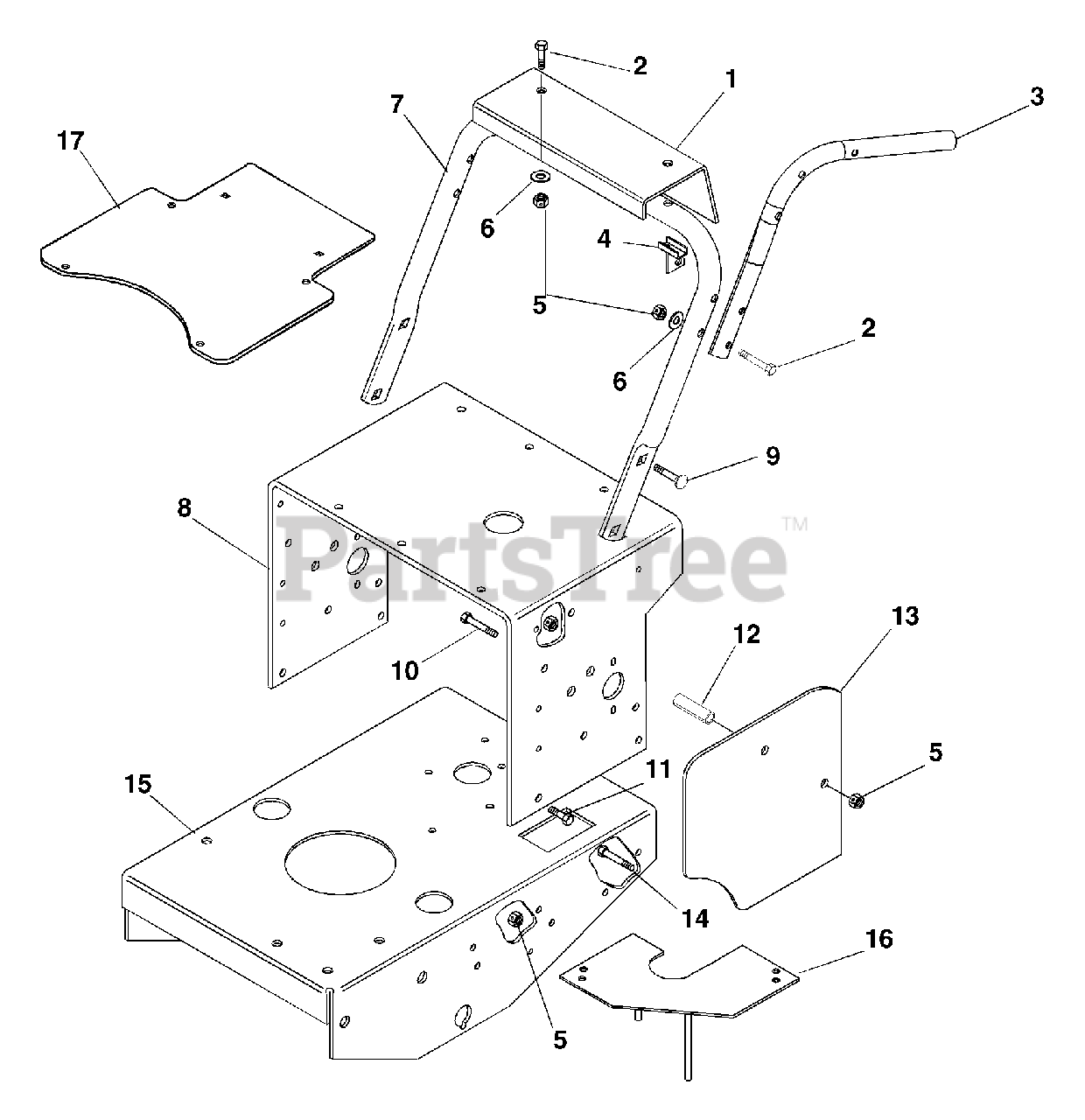

Frame Parts Diagram

  • Title

1

Gravely 04908651

PANEL, INSTRUMENT

$

$

Not available

2

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 04904800

HANDLE, LH

$

$

Not available

Gravely 04904700

HANDLE, RH

$

$

Not available

4

Gravely 08873400

PTO LEVER MTG BKT

$

$

Not available

5

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 08873500

LOWER HANDLEBAR, PRO 150

$

$

Not available

8

Gravely 08872100

FRAME, TOP - PRO 150

$

$

Not available

9

Gravely 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

10

Gravely 05965400

@BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0

11

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08875300

BSHG, SPACER, 3.25X3/8IDX5/8OD

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 08873700

GUARD, DRIVE.PRO-150 SIDE CVR

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

15

Gravely 08872000

FRAME, MAIN - PRO 150

$

$

Not available

16

Gravely 08873900

WLDT, BELT FINGER, PRO-150

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 04908753

PLATE, MOUNT

$20.99

$

Usually ships in 4-12 days

0
