988091 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 - 009999) Steering Control Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

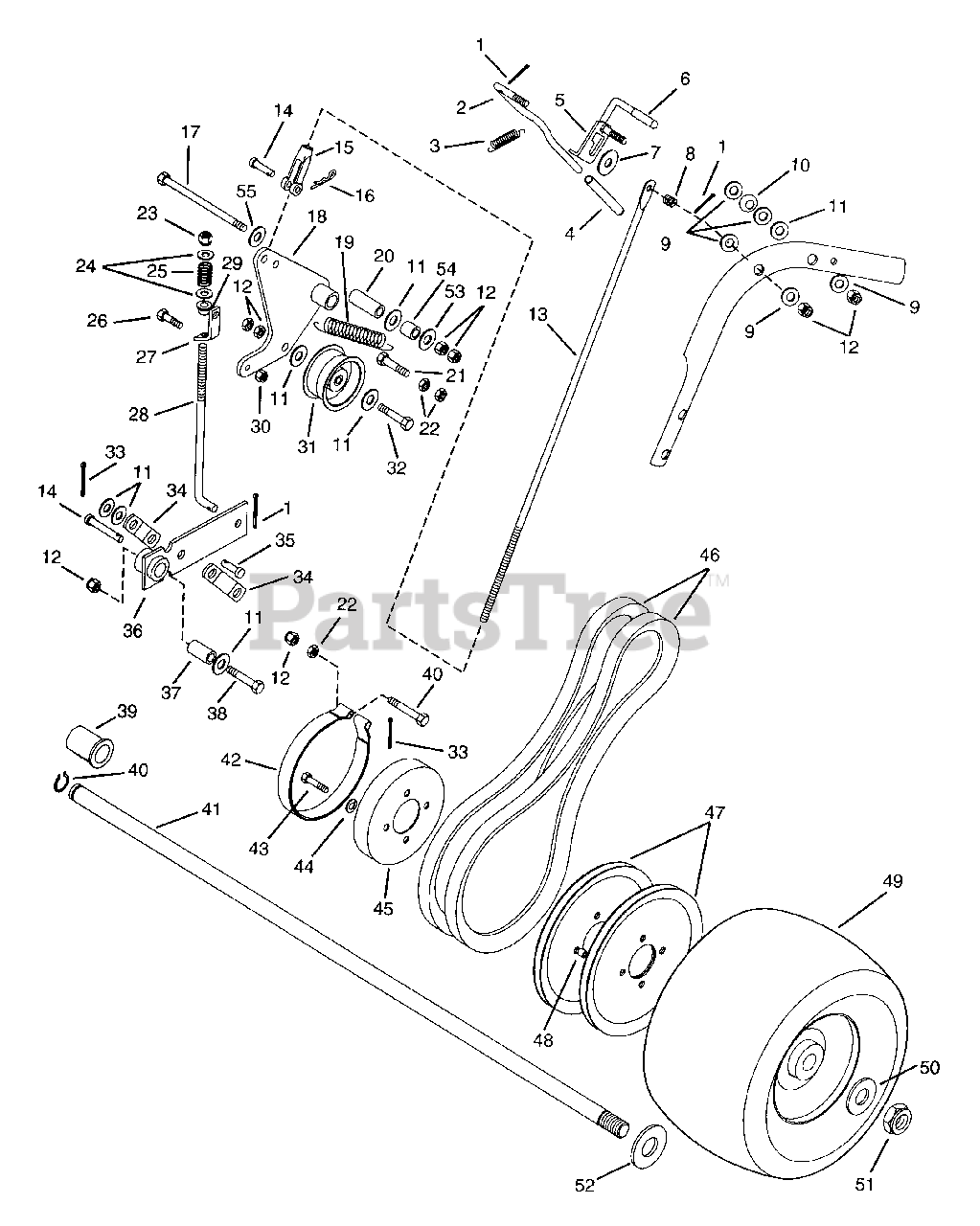

Steering Control Parts Diagram

  • Title

1

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

2

Gravely 052624

LEVER, HAND CONTROL LH
(Superseded to 04905200)

$79.99

$

In Stock, only 1 left!

0

3

Gravely 043446

SG-TENS .041X.500X1.750
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

4

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 042990

WLDMT,CLUTCH-BRAKE LOCK
(Superseded to 08820600)

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

8

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

$6.99

$

In Stock, only 2 left!

0

9

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

10

Gravely 029024

SPRING WASHER
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

11

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08878200

ROD,CLUTCH ACTUATING

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 06814900

PIN-CLEV .38X1.25 YWZC

$3.99

$

In Stock, only 2 left!

0

15

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 06709800

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05965400

@BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0

18

Gravely 08831200

WLDMT,WHL CLUTCH ARM

$

$

Not available

19

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

$11.99

$

In Stock, only 1 left!

0

20

Gravely 08831500

BUSH.,S.385X.610X1.80 ST

$5.99

$

In Stock, only 2 left!

0

21

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

22

Gravely 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

23

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

26

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 088726

L-BKT, PRO BRAKE LINK
(Superseded to 08872600)

$

$

Not available

28

Gravely 049282

ROD,BRAKE
(Superseded to 08878300)

$

$

Not available

29

Gravely 045789

BSHG-FLG .320X.620X.312 NY
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

30

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$22.99

$

In Stock, only 1 left!

0

32

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

34

Gravely 049026

LINK,BRAKE ARM
(Superseded to 08831951)

$15.99

$

In Stock, only 1 left!

0

35

Gravely 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 4 left!

0

36

Gravely 049023

WLDMT,BRAKE ARM
(Superseded to 08831600)

$74.99

$

Usually ships in 4-12 days

0

37

Gravely 049027

BUSH.,S.391X.622X.950 ST
(Superseded to 08833400)

$5.99

$

In Stock, only 1 left!

0

38

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

39

Gravely 049969

BSHG-FLG 1.010X1.38X1.4X1.65
(Superseded to 05517900)

$5.99

$

In Stock, only 2 left!

0

40

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

41

Gravely 08875200

AXLE SHAFT, PRO-150

$124.99

$

Usually ships in 4-12 days

0

42

Gravely 08880600

ASM, BRAKE BAND, PRO

$58.99

$

In Stock, only 2 left!

0

43

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

44

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 049015

DRUM,BRAKE
(Superseded to 08863900)

$45.99

$

In Stock, Qty 5

0

46

Gravely 07225800

V-BELT, HA-COGGED (SET)

$93.99

$

In Stock, only 4 left!

0

47

Gravely 049033

PLY-V 9.00X3.75
(Superseded to 07319700)

$

$

Not available

48

Gravely 048868

BUSH.,S.385X.625X.475 ST
(Superseded to 08809500)

$

$

Not available

49

Gravely 07147300

TIRE/WHEEL ASSY, 13X6.50-6
(Superseded to 07100239)

$159.99

$

Usually ships in 4-12 days

0

50

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

52

Gravely 06426500

WSHR-THRST 1.55X1.002X.093

$18.99

$

In Stock, only 2 left!

0

53

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

54

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

55

Gravely 06440800

WSHR-FL-STL.44X1.625X.315 YWZC

$

$

Not available
