988090 - Gravely Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru (SN: 000101 & Above) Wheels Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru

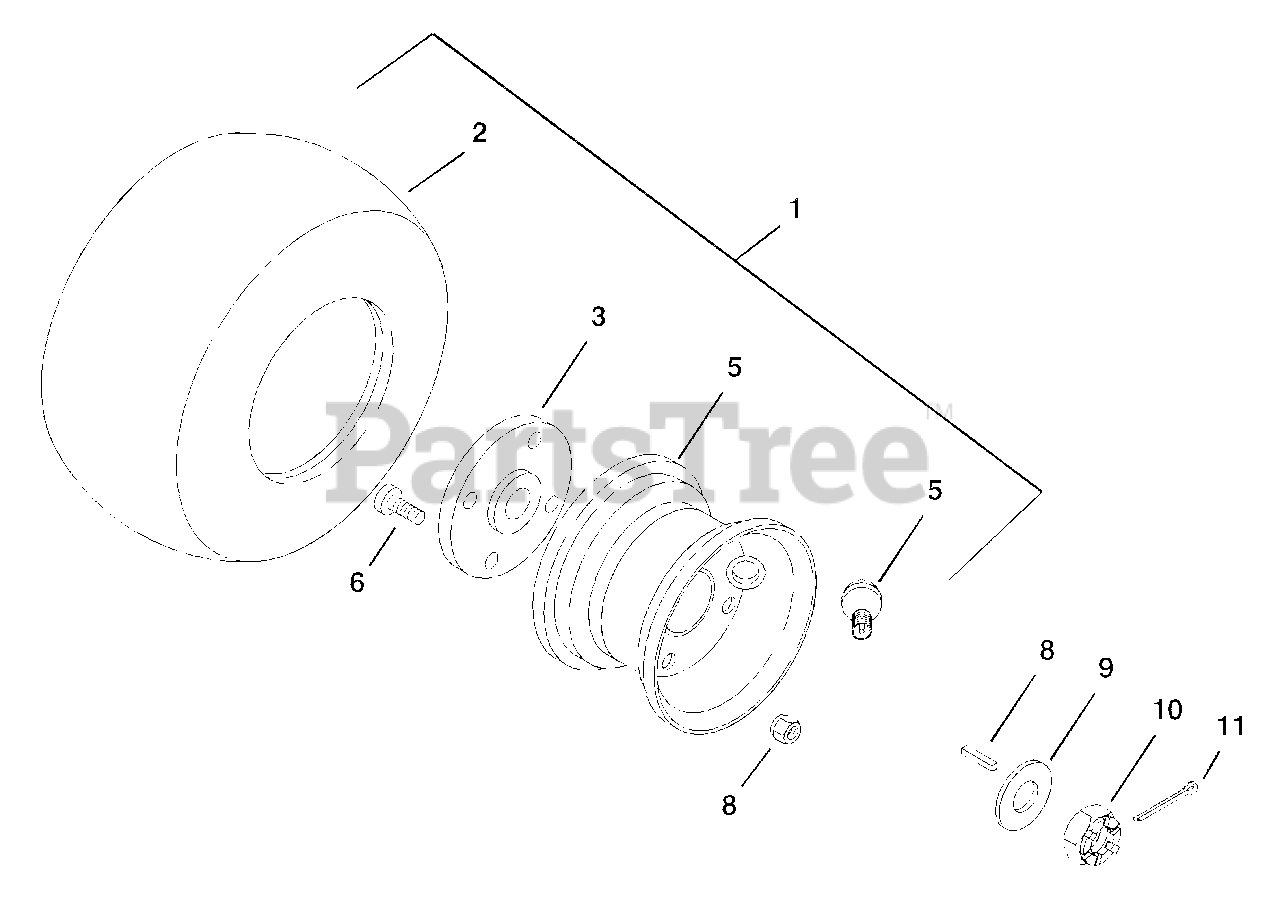

Wheels Parts Diagram

  • Title
1

Gravely 051235

T/WHL ASSY 16X6.50-8
(Superseded to 07131400)

$

$

Not available

2

Gravely 048881

TIRE 16X6.50-8
(Superseded to 07130700)

$

$

Not available

3

Gravely 052056

ASM,HUB
(Superseded to 07131600)

$113.99

$

Usually ships in 4-12 days

0

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

6

Gravely 00510800

LUG BOLT, .5-20 X 1.25

$

$

Not available

7

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06604900

KEY-SQ .188X.75X.188

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

10

Gravely 052053

NUT,HEX 3/4-28 SLOTTED
(Superseded to 08846900)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0
