988090 - Gravely Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru (SN: 000101 & Above) Steering Control Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru

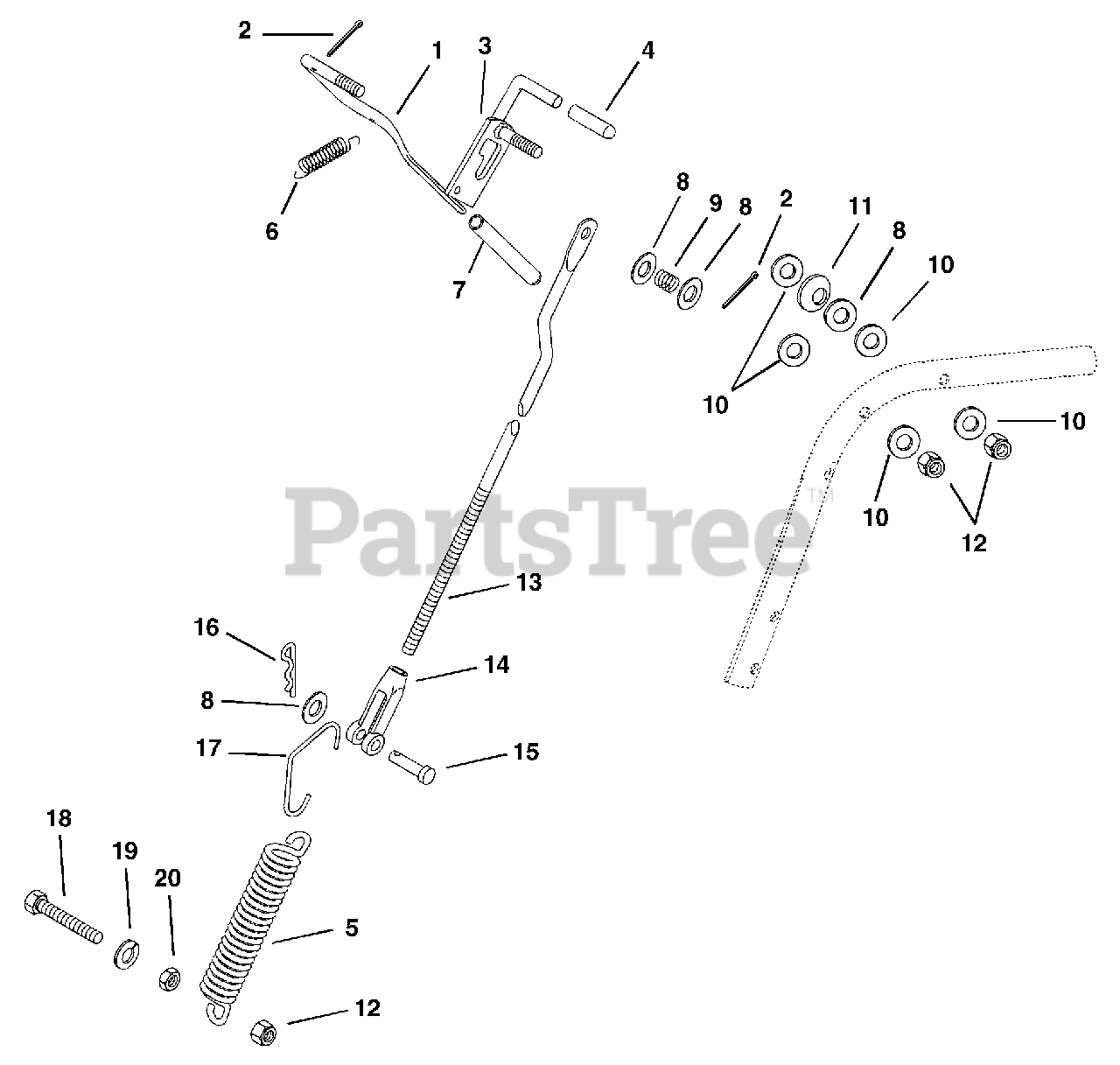

Steering Control Parts Diagram

  • Title
1

Gravely 04905200

LEVER, HAND CONTROL LH

$79.99

$

In Stock, only 1 left!

0

2

Gravely 06906900

BRAKE CONTROL - 350 SX, 450 SX

$

$

Not available

3

Gravely 043446

SG-TENS .041X.500X1.750
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

4

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 052617

SG-TENS .105X1.00X5.0
(Superseded to 08346800)

$14.99

$

In Stock, only 2 left!

0

6

Gravely 043446

SG-TENS .041X.500X1.750
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

7

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

$6.99

$

In Stock, only 2 left!

0

10

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

11

Gravely 041623

WSHR-SG .375 ID
(Superseded to 06433000)

$

$

Not available

12

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 051236

ROD,PUMP CONTROL
(Superseded to 08878900)

$297.99

$

Usually ships in 4-12 days

0

14

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 06814900

PIN-CLEV .38X1.25 YWZC

$3.99

$

In Stock, only 2 left!

0

16

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 051670

HOOK,SPRING
(Superseded to 08879000)

$

$

Not available

18

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0
