988090 - Gravely Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru (SN: 000101 & Above) Fuel And Exhaust System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru

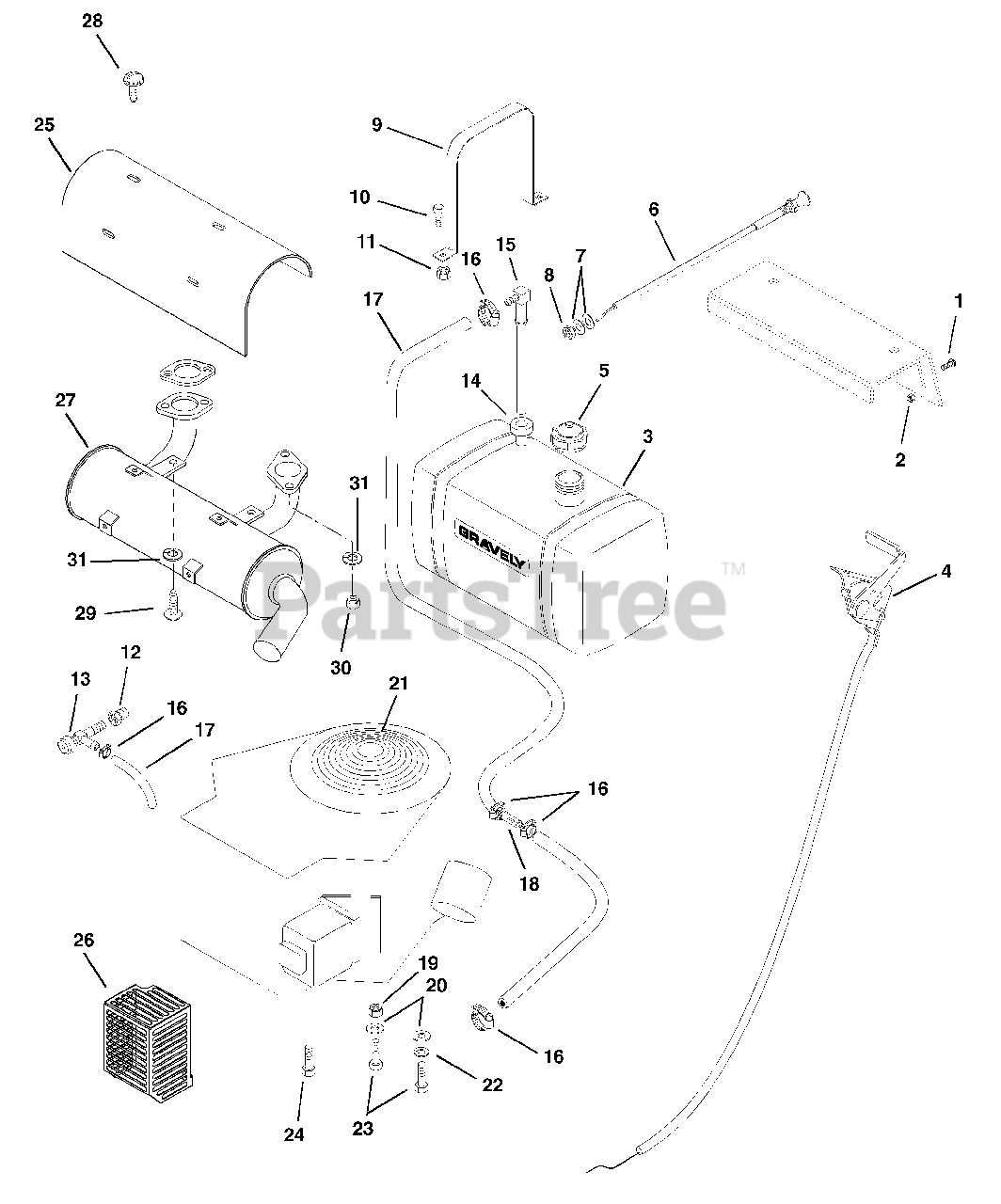

Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09112200

FUEL TANK

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 06943700

CABLE, CONTROL

Note: (Model 090)

$59.99

$

Usually ships in 4-12 days

0

Gravely 06943600

CABLE, CONTROL

Note: (Models 089, 310)

$52.99

$

Usually ships in 4-12 days

0

5

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

6

Gravely 06924800

CONTROL,CHOKE

Note: (Model 090)

$39.99

$

Usually ships in 4-12 days

0

Gravely 06936100

CABLE, CHOKE (42.5")

$

$

Not available

7

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 04933800

RETAINER, 1" ID BEARING

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 041831

ADPT,OIL DRAIN
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

14

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

16

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08811700

FILTER,FUEL

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Model 090)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (Model 090)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08257400

ENGINE, 14HP KAWASAKI

Note: (Models 089, 310)

$

$

Not available

Gravely 08256700

ENGINE, ROBIN EH65V

Note: (Model 090)

$

$

Not available

22

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05968200

@BLT-HEX M8 X 1.25X30 GR5 YWZC

Note: (Models 089, 310)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (Model 090)

$2.99

$

In Stock, Qty 8

0

25

Gravely 08898000

HEAT SHIELD, CV18-25

Note: (Model 090)

$55.99

$

Usually ships in 4-12 days

0

26

Gravely 04903000

WLDMT, MUFFLER GUARD

Note: (Model 310)

$31.99

$

Usually ships in 4-12 days

0

27

Gravely 09208900

MUFFLER

Note: (Model 090)

$

$

Not available

28

Gravely 07413100

SCR-TAP M6-1 X 25MM (BULK)

$

$

Not available

29

Gravely 06109900

SCR-MCH 8MM-1.25X20 HHCS YWZC

Note: (Model 090)

$

$

Not available

30

Gravely 06538600

NUT-HEX M8-1.25 YWZC

$

$

Not available

31

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
