988088 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Frame Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

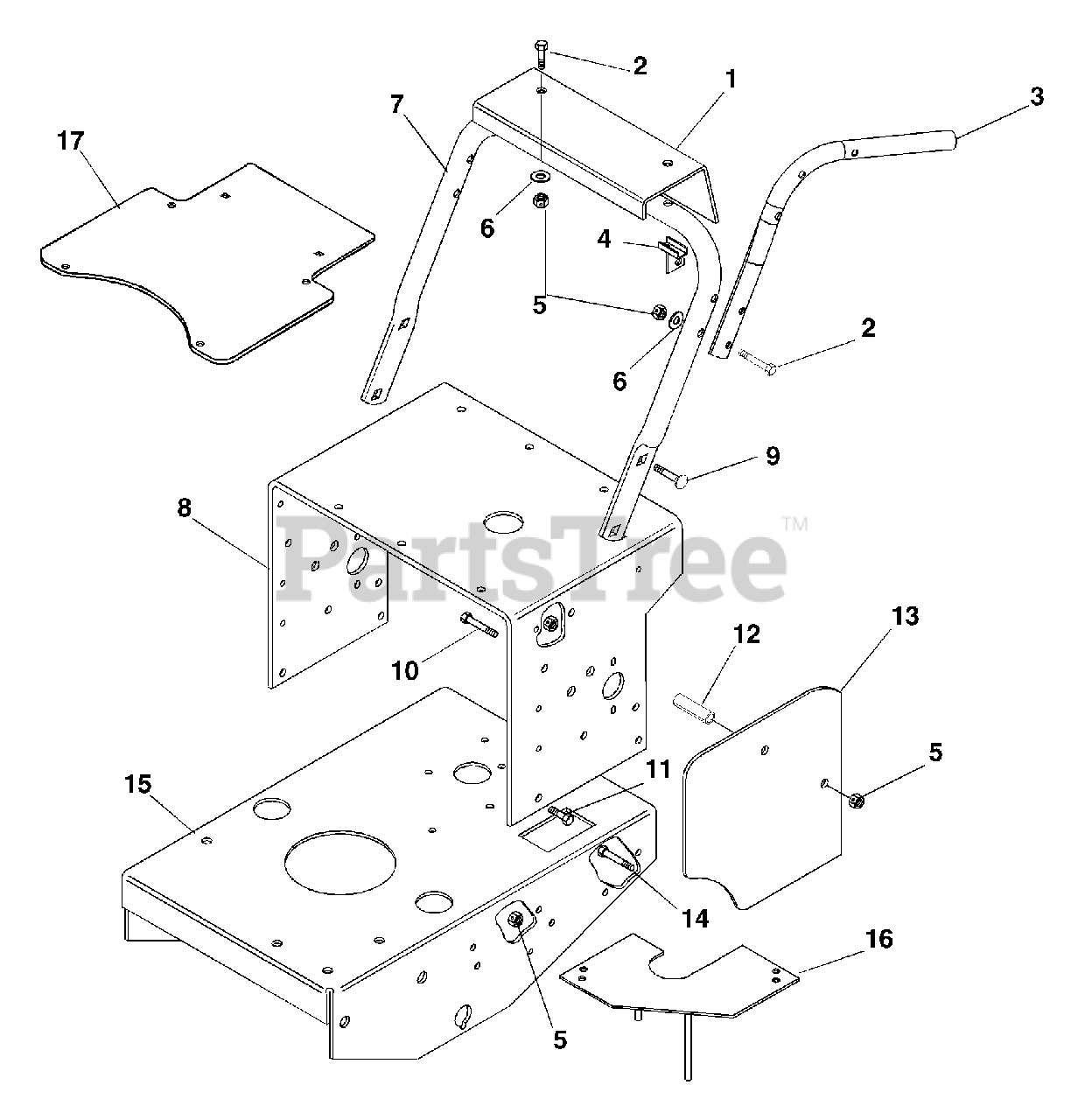

Frame Parts Diagram

  • Title

1

Gravely 04908651

Panel, Instrument

$

$

Not available

2

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 04904800

Handlebar Left Hand

$

$

Not available

3

Gravely 04904700

Handlebar Right Hand

$

$

Not available

4

Gravely 08873400

PTO Lever Mounting Bracket

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 08873500

Lower Handlebar-Pro 100

$

$

Not available

8

Gravely 08872100

Pro-150 Top Frame

$

$

Not available

9

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

10

Gravely 05965400

Bolt-Hex .38-16 x 4.00

$3.99

$

In Stock, only 1 left!

0

11

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08875300

Bushing-Spacer 3.25 x 3/8 ID x 5/8 OD

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 08873700

Guard-Drive Pro-100 Side Cover

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 05957900

Bolt-Hex.38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

15

Gravely 08872000

Pro-150 Main Frame

$

$

Not available

16

Gravely 08873900

Belt Brake Finger-Deck Clutch

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 04908753

Plate, Mount

$20.99

$

Usually ships in 4-12 days

0
