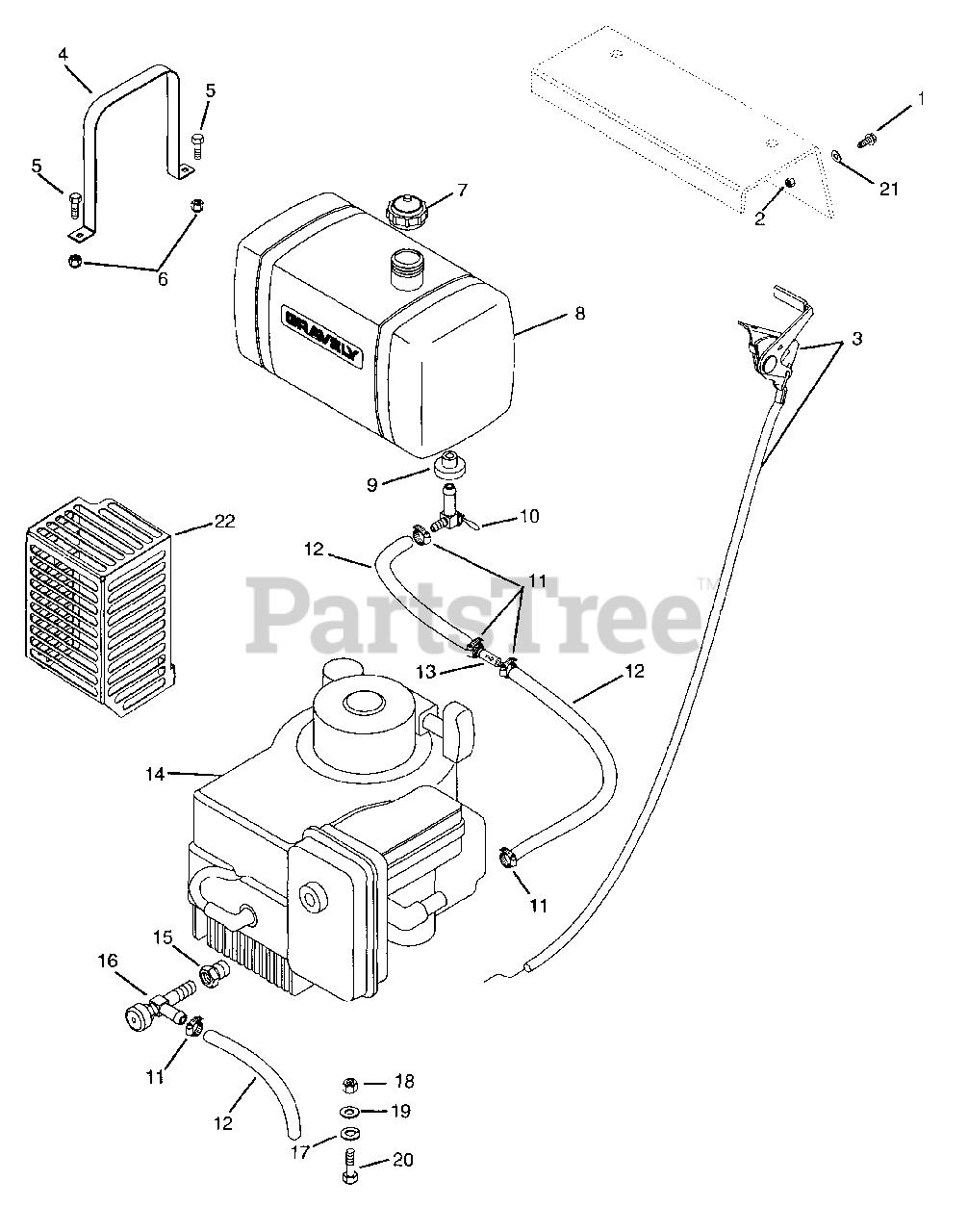

988088 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 - 009999) Fuel And Exhaust System Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

Fuel And Exhaust System Parts Diagram

  • Title
1

Gravely 06116700

Screw-Machine Hex Washer Head 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06940900

Cable-Throttle
(Superseded to 06943600)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 09112100

Tank Strap for 4.5 G Fuel Tank

$

$

Not available

5

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 048856

Cap-Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

8

Gravely 09112000

Fuel Tank 4.5 Gallon

$

$

Not available

9

Gravely 047613

Bushing-Flange .375 x 1.06 x .625
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 049284

Valve-Ball Shut-Off
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 040742

Filter-Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 08235000

Engine-Kawasaki 12.5

$

$

Not available

14

Gravely 08237500

Engine-14 HP Kawasaki

$

$

Not available

14

Gravely 08256300

Engine 12.5 HP Tecumseh Recoil

$

$

Not available

15

Gravely 041831

Adapter-Oil Drain
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05968200

Bolt-Hex M8 x 1.25 x 30 Grade 5

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 04903000

Muffler Guard (309)

Note: (309)

$31.99

$

Usually ships in 4-12 days

0
