988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Traction Clutch Linkage Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

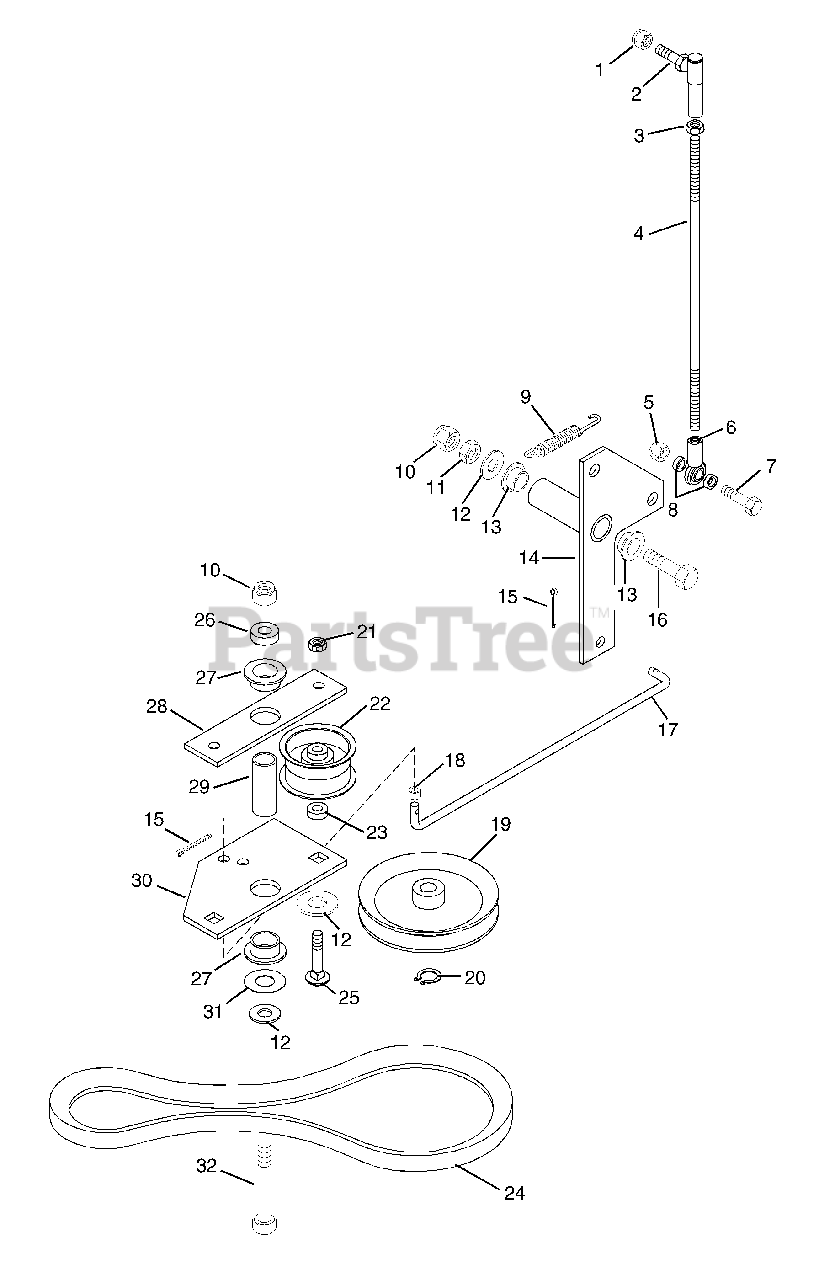

Traction Clutch Linkage Parts Diagram

  • Title

1

Gravely 06538800

Nut-Locking-Nylon .375-24

$1.99

$

In Stock, only 4 left!

0

2

Gravely 021084

Joint, Steering Ball
(Superseded to 02917100)

$23.99

$

In Stock, Qty 6

0

3

Gravely 06534700

Nut-Hex .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 043248

Rod, Clutch Actuating
(Superseded to 08877500)

$

$

Not available

5

Gravely 06529600

Nut-Locking-Nylon .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 043249

Rod End, Spherical Bearing
(Superseded to 08821700)

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

8

Gravely 042989

Bushing-Flange .383 x .50 x .165
(Superseded to 05526700)

$

$

Not available

9

Gravely 011263

Spring-Tension .095 x .500 x 5.5
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 06536300

Nut-Locking-Nylon .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06537300

Nut .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 049094

Weldment, Clutch Arm
(Superseded to 08833600)

$

$

Not available

15

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

16

Gravely 05962300

Bolt-Hex .50-13 x 4.50
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

17

Gravely 049269

Rod, Traction Clutch
(Superseded to 08878100)

$

$

Not available

18

Gravely 010155

Bushing, Steel .380 x .495 x .437
(Superseded to 08813800)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 034331

Sheave, Transmission
(Superseded to 07319400)

$59.99

$

Usually ships in 4-12 days

0

20

Gravely 015338

Ring-Retaining-External .579 x .93
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06535300

Nut-Locking-Center .625-10

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 027829

Idler-Flat 2.468 x .38
(Superseded to 07317200)

$34.99

$

In Stock, only 2 left!

0

23

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

24

Gravely 052776

V-Belt A-Section
(Superseded to 07223800)

$28.99

$

In Stock, only 2 left!

0

25

Gravely 126416

Bolt-Round Head Square Neck .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 041324

Bushing, Steel .790 x 1.00 x .320
(Superseded to 08841700)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 043199

Plate, Idler
(Superseded to 08821300)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 041992

Bushing, Steel .560 x .745 x 2.04
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

30

Gravely 04905951

Plate, Idler

$

$

Not available

31

Gravely 014998

Bearing-Needle-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

32

Gravely 05959900

Bolt-Hex .50-13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0
