988086 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Tecumseh (SN: 000101 & Above) Transmission (Model 700-079) Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Tecumseh

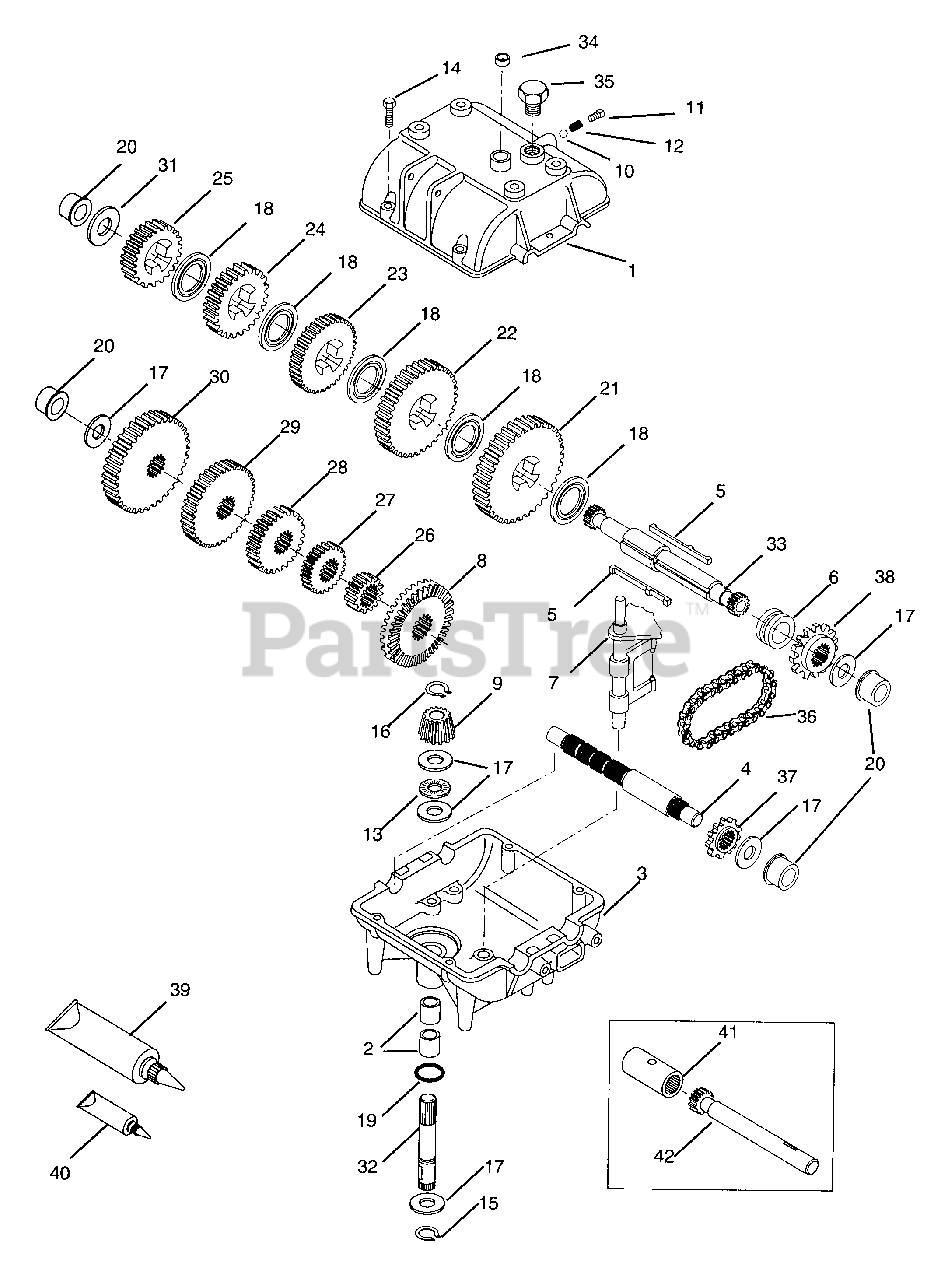

Transmission (Model 700-079) Parts Diagram

  • Title

1

Gravely 772083A

Transmission Cover

$

$

Not available

2

Gravely 780086A

Needle Bearing .625 ID x .50

$

$

Not available

2

Gravely 780142

Needle Bearing .625 ID x .75

$

$

Not available

3

Gravely 770061A

Transmission Case

$

$

Not available

4

Gravely 776134

Countershaft

$

$

Not available

5

Gravely 792089A

Shift Key

$

$

Not available

6

Gravely 784266

Shift Collar

$

$

Not available

7

Gravely 784376

Shift Rod & Fork Assembly

$

$

Not available

8

Gravely 778154

Bevel Gear (42 Teeth)

Note: (42 Teeth)

$

$

Not available

9

Gravely 792176

Bevel Pinion (14 Teeth-Steel)

Note: (14 Teeth-Steel)

$

$

Not available

10

Gravely 792077

Steel Ball .31 Diameter

$

$

Not available

11

Gravely 792078

Set Screw .38-16 x .38

$

$

Not available

12

Gravely 780079

Spring

$

$

Not available

13

Gravely 792071

Thrust Bearing

$

$

Not available

14

Gravely 792073A

Screw .25-20 x 1.25

$

$

Not available

15

Gravely 792035

Ring, Retaining

$

$

Not available

16

Gravely 788040

Ring, Retaining

$

$

Not available

17

Gravely 780072

Washer

$

$

Not available

18

Gravely 780108

Washer

$

$

Not available

19

Gravely 792001

"O"-Ring

$

$

Not available

20

Gravely 780105A

Bushing-Flanged

$

$

Not available

21

Gravely 778146A

Spur Gear (37 Teeth)

Note: (37 Teeth)

$

$

Not available

22

Gravely 778125

Spur Gear (35 Teeth)

Note: (35 Teeth)

$

$

Not available

23

Gravely 778239A

Spur Gear (32 Teeth-Steel)

Note: (32 Teeth-Steel)

$

$

Not available

24

Gravely 778124A

Spur Gear (30 Teeth)

Note: (30 Teeth)

$

$

Not available

25

Gravely 778250

Spur Gear (27 Teeth)

Note: (27 Teeth)

$

$

Not available

26

Gravely 778145

Spur Gear (12 Teeth)

Note: (12 Teeth)

$

$

Not available

27

Gravely 778151

Spur Gear (15 Teeth)

Note: (15 Teeth)

$

$

Not available

28

Gravely 778240

Spur Gear (18 Teeth)

Note: (18 Teeth)

$

$

Not available

29

Gravely 778126A

Spur Gear (20 Teeth)

Note: (20 Teeth)

$

$

Not available

30

Gravely 778249

Spur Gear (23 Teeth)

Note: (23 Teeth)

$

$

Not available

31

Gravely 780139

Washer

$

$

Not available

32

Gravely 776135

Input Shaft 3.69 long

$

$

Not available

33

Gravely 776402

Shifter and Brake Shaft

$

$

Not available

34

Gravely 788069

Square Cut Ring

$

$

Not available

35

Gravely 792074

Threaded Plug

$

$

Not available

36

Gravely 786081

Roller Chain (No. 41, 24 Links

$

$

Not available

37

Gravely 786082

Sprocket (9 Teeth)

Note: (9 Teeth)

$

$

Not available

38

Gravely 786083

Sprocket (18 Teeth)

Note: (18 Teeth)

$

$

Not available

39

Gravely 788067B

Grease (32 oz. Bottle Bentonite Grease)

Note: (32 oz. Bottle Bentonite Grease)

$

$

Not available

40

Gravely 510334

Gasket Eliminator (Loctite #515)

Note: (Loctite #515)

$

$

Not available

41

Gravely 786176

Optional Coupling (1.813 OD)

Note: (1.813 OD)

$

$

Not available

41

Gravely 786177

Optional Coupling (1.188 OD)

Note: (1.188 OD)

$

$

Not available

42

Gravely 776401

Optional Connector (6.095 long)

Note: (6.095 long)

$

$

Not available

42

Gravely 776403

Optional Connector (6.25 long)

Note: (6.25 long)

$

$

Not available

42

Gravely 776407

Optional Connector (6.630 long)

Note: (6.630 long)

$

$

Not available

42

Gravely 776416

Optional Connector (7.000 long)

Note: (7.000 long)

$

$

Not available
